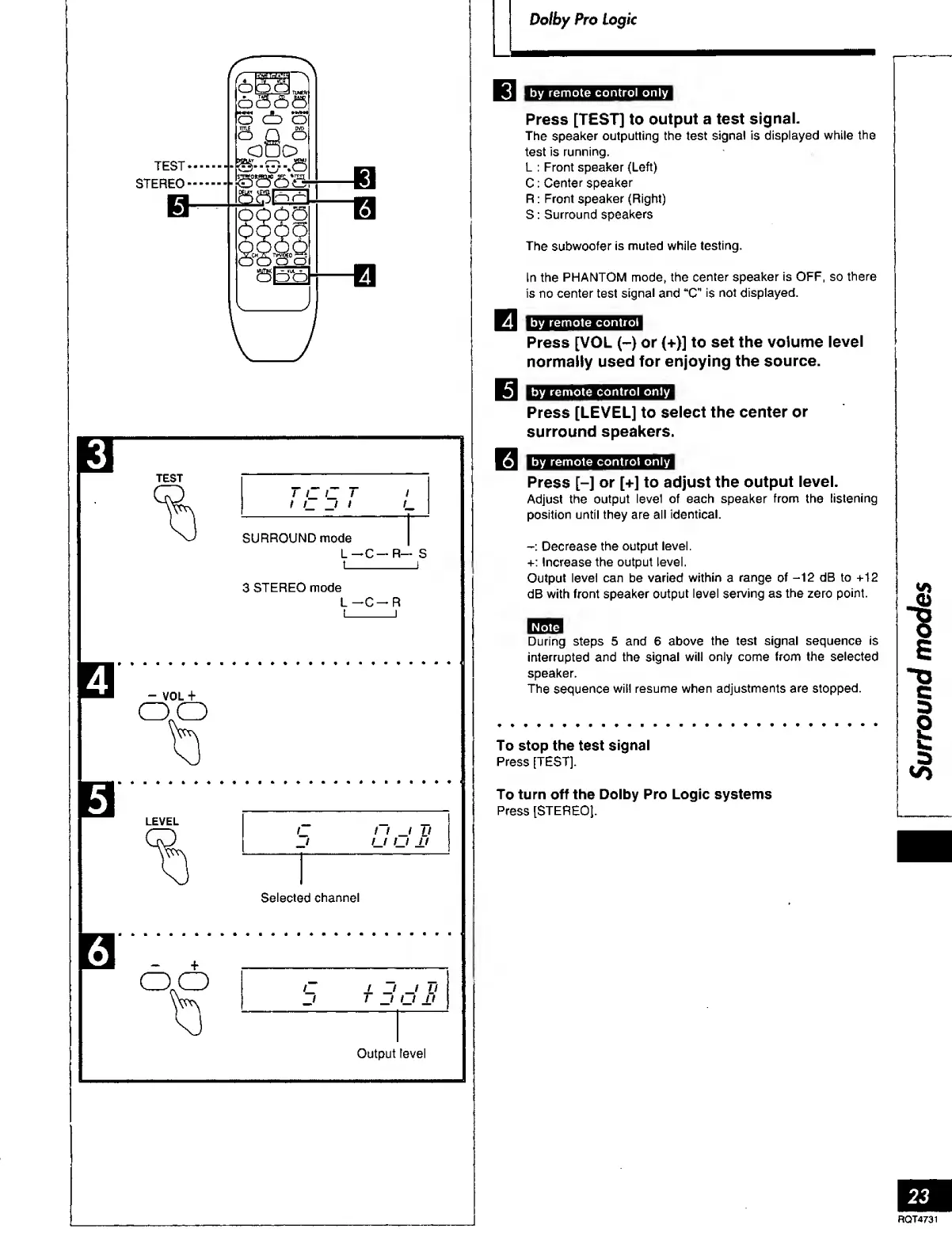

Technics SA-AX730

Dolby Pro
Logic
TEST-
STEREO
6556
o
cb o
TTH£
,
—
^ DVD
O
Q
O
TEST
/
/_
/_
/
t I /
/
SURROUND mode
L-C-R-
S
t I
3
STEREO mode
L-C-R
I I
LEVEL
J
if i
u
l—l l—l
±1
Selected
channel
by remote
control
only
Press [TEST] to
output a test
signal.
The
speaker
outputting the test
signal
is
displayed while
the
test is
running.
L : Front speaker (Left)
C :
Center speaker
R
:
Front
speaker
(Right)
S : Surround
speakers
The subwoofer
is muted while
testing.
In the
PHANTOM mode, the
center
speaker is OFF, so
there
is no center test
signal and
"C"
is
not displayed.
by remote
control
Press [VOL
(-)
or
(+)]
to
set the volume
level
normally
used
for enjoying the
source.
by
remote
control only
Press [LEVEL] to
select the center
or
surround
speakers.
by remote
control
only
Press
[-]
or
[+]
to adjust the
output
level.
Adjust
the output
level of each speaker
from
the
listening
position until they are all
identical.
Decrease the
output level.
+: Increase the output level.
Output
level can be varied
within
a
range of
-12
dB to +12
dB with front speaker
output
level serving as the zero
point.
During steps 5 and 6
above
the test signal sequence is
interrupted and
the
signal will only come from the
selected
speaker.
The
sequence
will resume when
adjustments are stopped.
To stop the test
signal
Press [TEST].
To
turn off the Dolby Pro Logic systems
Press [STEREO].
E
-o
§
/
_/
r
j
i //
/_/
n
Output level
23
RQT4731
