Technics SA-AX730

Dolby
Pro Logic
o o o o o o a
@ ® @
-DOLBY
PHOLOCB-
STEREO SURROUND J STEREO SFC
O
O
O
o
/_///_/
i_j i itt
n i u
_//_//!
/ i
/_/
/_/
/ u
±i
DELAY TIME
0"
Front
speaker
Front speaker
(Left)
Center
speaker
(Right)
Surround speaker
(Left)
Surround
speaker
(Right)

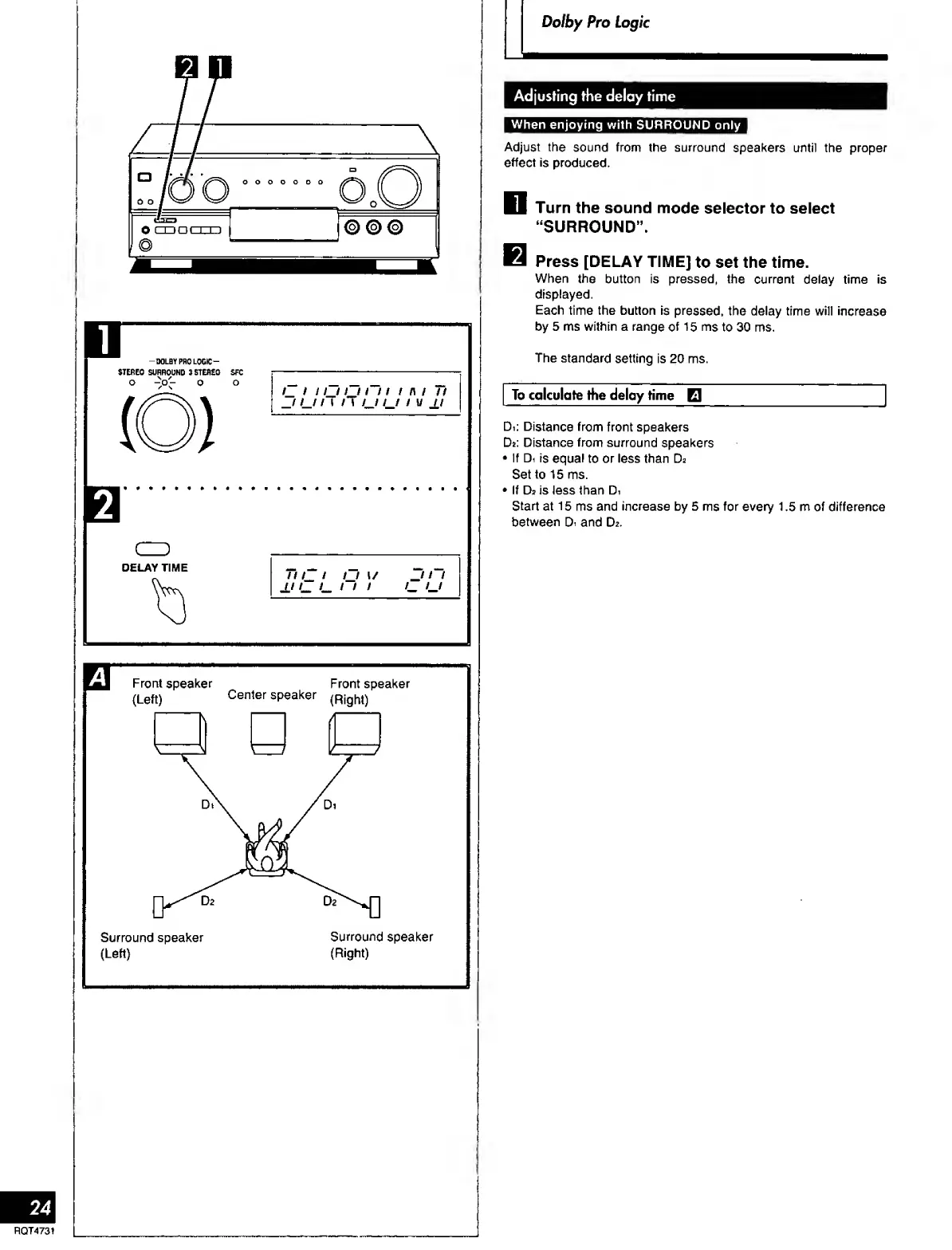

Adjusting Hie
delay
time
When enjoying with
SURROUND
only
Adjust
the
sound from the surround
speakers
until the proper
effect is
produced.
Turn the sound
mode
selector to select
"SURROUND".
Press [DELAY TIME]
to set the time.
When
the
button is pressed, the
current
delay time is
displayed.
Each
time the button
is pressed,
the delay time will
increase
by 5 ms within a range
of 15 ms
to 30 ms.
The
standard
setting is 20 ms.
To calculate the delay time
E
Di:
Distance from
front speakers
D2: Distance from surround
speakers
•
If D1
is equal
to or less than D2
Set
to
15 ms.
•
If D2 is less than Di
Start
at
1
5
ms and increase by 5
ms
for
every 1
.5 m of difference
between Di
and D2.
