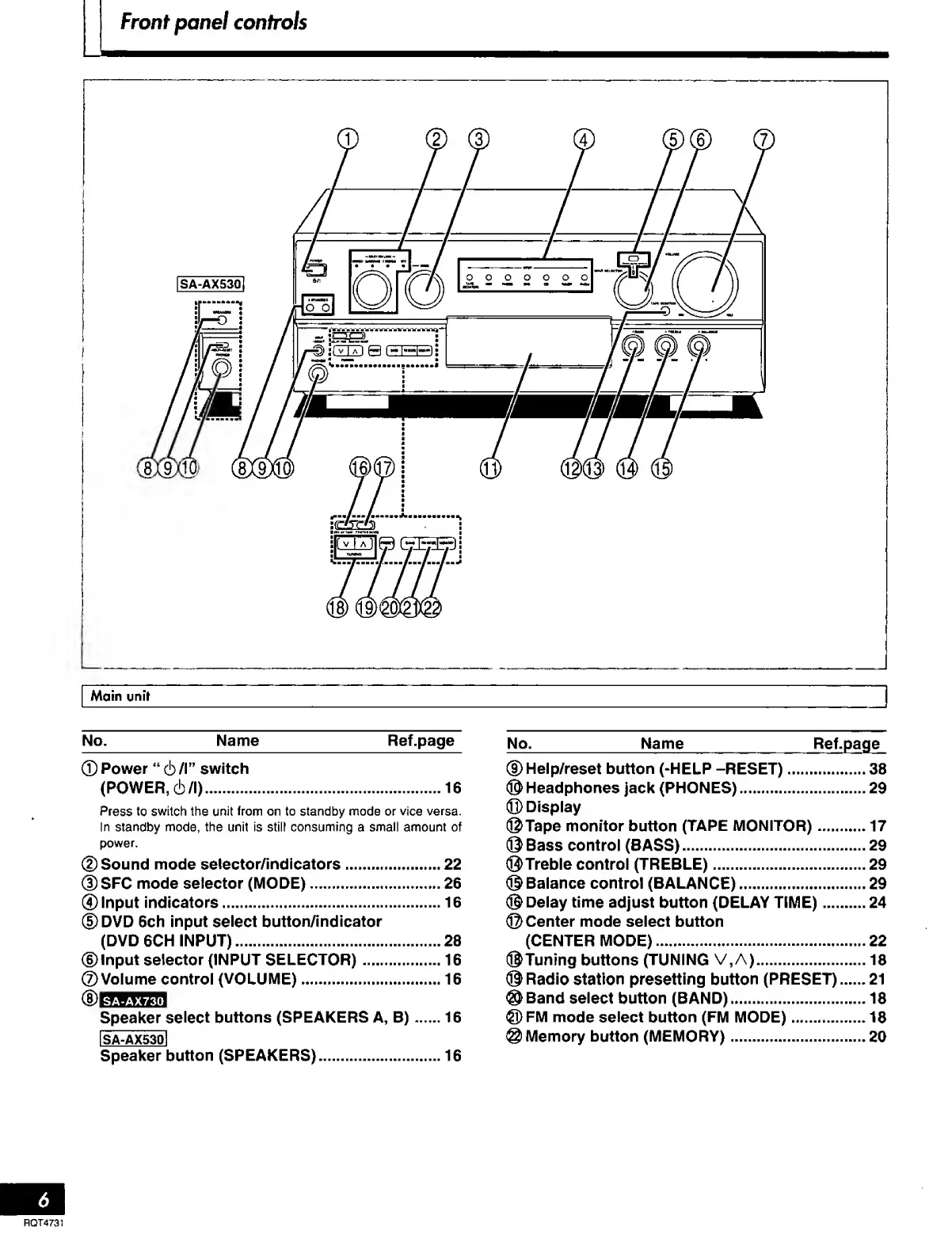

Front
panel controls
Main
unit
No. Name Ref.page
©Power
"6/1"
switch
(POWER,
6
/I) 16
Press to
switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
©Sound mode
selector/indicators
22
(D
SFC
mode selector (MODE) 26
®
Input indicators
1
6
©DVD 6ch
input select
button/indicator
(DVD
6CH
INPUT) 28
©Input
selector
(INPUT
SELECTOR)
16
©Volume control
(VOLUME)
16
Speaker
select
buttons (SPEAKERS A, B) 16
[SA-AX530l
Speaker
button (SPEAKERS)
16
No.
Name Ref.page
(D
Help/reset button (-HELP
-RESET) 38
®
Headphones jack (PHONES)
29
©
Display
©Tape monitor button
(TAPE MONITOR)
17
©
Bass control (BASS)
29
©Treble control (TREBLE) 29
©
Balance control
(BALANCE)
29
©
Delay time
adjust button (DELAY TIME) 24
©Center mode select button
(CENTER MODE) 22
©Tuning
buttons
(TUNING
V,A)
18
©
Radio station presetting button
(PRESET) 21
©Band select
button (BAND)
18
®
FM
mode select
button
(FM
MODE)
18
@
Memory button (MEMORY)
20
