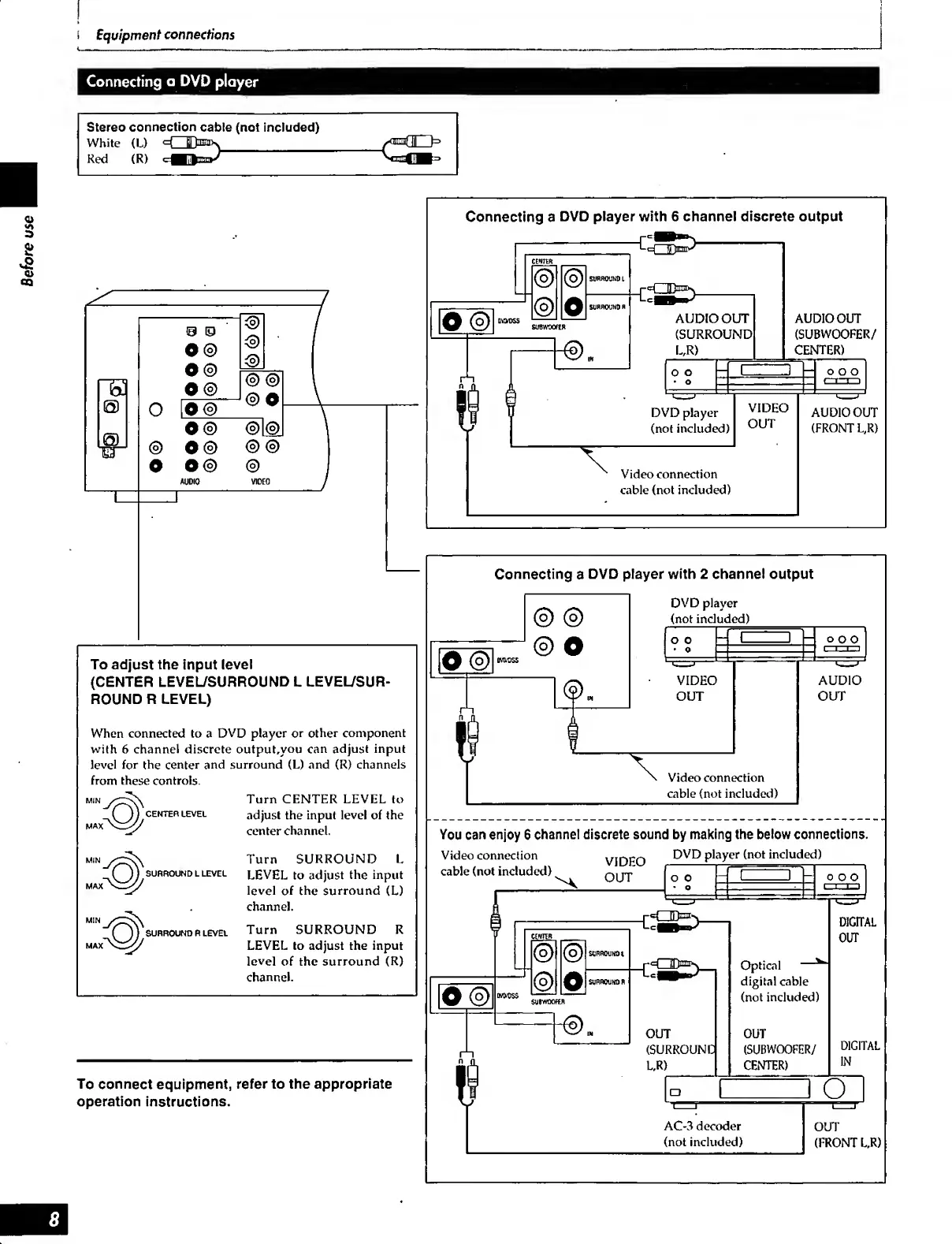

Equipment connections
Connecting a DVD player with 6 channel discrete output
® ©
© O
AUDIO OUT AUDIO OUT
(SURROUND (SUBWOOFER/
L,R) CENTER)
DVD player VIDEO AUDIO OUT
(not included) 0UT (FRONT L,R)
Video connection
cable (not included)
Connecting a DVD player with 2 channel output
To adjust the input level
(CENTER LEVEL/SURROUND L LEVEL/SUR¬
ROUND R LEVEL)
When connected to a DVD player or other component
with 6 channel discrete output,you can adjust input
level for the center and surround (L) and (R) channels
from these controls.
Turn CENTER LEVEL to
Q), c emterlevel adjust the input level of the
MAX -s center channel.
SURROUND L LEVEL
Turn SURROUND L
>l level LEVEL to adjust the input
level of the surround (L)
channel.
, r level Turn SURROUND R
LEVEL to adjust the input
level of the surround (R)
channel.
To connect equipment, refer to the appropriate
operation instructions.
© ©
©O
DVD player
(not included)
AUDIO
OUT
You can enjoy 6 channel discrete sound by making the below connections.
Video connection VIDFO DVD player (not included)
cable (not included)^ OUT (To |~fT ^ ~H °°°
AC-3 decoder
(not included)
