Technics SA-EX140 Operating Instructions

II
FM outdoor antenna
(not included)
75 Q coaxial cable
S(not included)
Remove a piece of the outer
vinyl insulator.
20 mm (25/32")
_ Twist the shield braid to
expose the core wire. Core wir_
Shield braid 10 rnm (3/8")
(33 Connect the shield braid and the
core wire as shown at the left.
_J
Vinyl-covered wire
_ (not included)
/
AM loop antenna
(included)
AM AI_ r_
AM LOOP ANT
L___--J

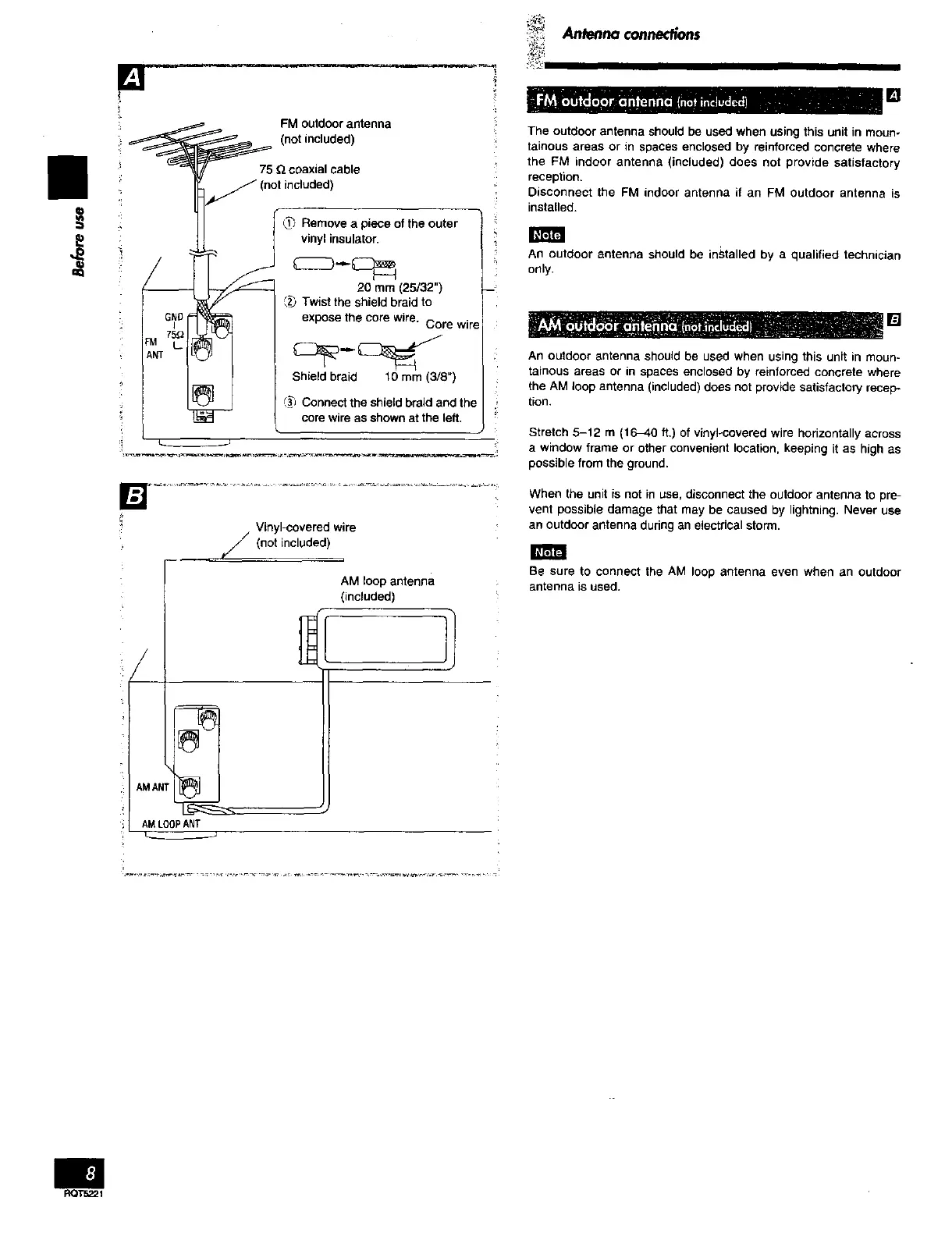

_ Antenna connections
[]
The outdoor antenna should be used when using this unit in moun-
tainous areas or in spaces enclosed by reinforced concrete where
the FM indoor antenna (included) does not provide satisfactory
reception.
Disconnect the FM indoor antenna if an FM outdoor antenna is
installed.
An outdoor antenna should be in'tailed by a qualified technician
only.
,_v . =;,..- . ..... []
An outdoor antenna should be used when using this unit in moun-
tainous areas or in spaces enclosed by reinforced concrete where
the AM loop antenna (included) does not provide satisfactory recep-
tion.
Stretch 5-12 m (16-40 ft.) of vinyl-covered wire horizontally across
a window frame or other convenient location, keeping it as high as
possible from the ground.
When the unit is not in use, disconnect the outdoor antenna to pre-
vent possible damage that may be caused by lightning. Never use
an outdoor antenna during an electrical storm.
Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
RQT5221

Technics SA-EX140 Specifications

General

Tuning Range	FM, MW
Input Sensitivity	150 mV
Signal to Noise Ratio	80dB (line)
Dimensions	430 x 125 x 300mm
Speaker Load Impedance	8Ω to 16Ω
