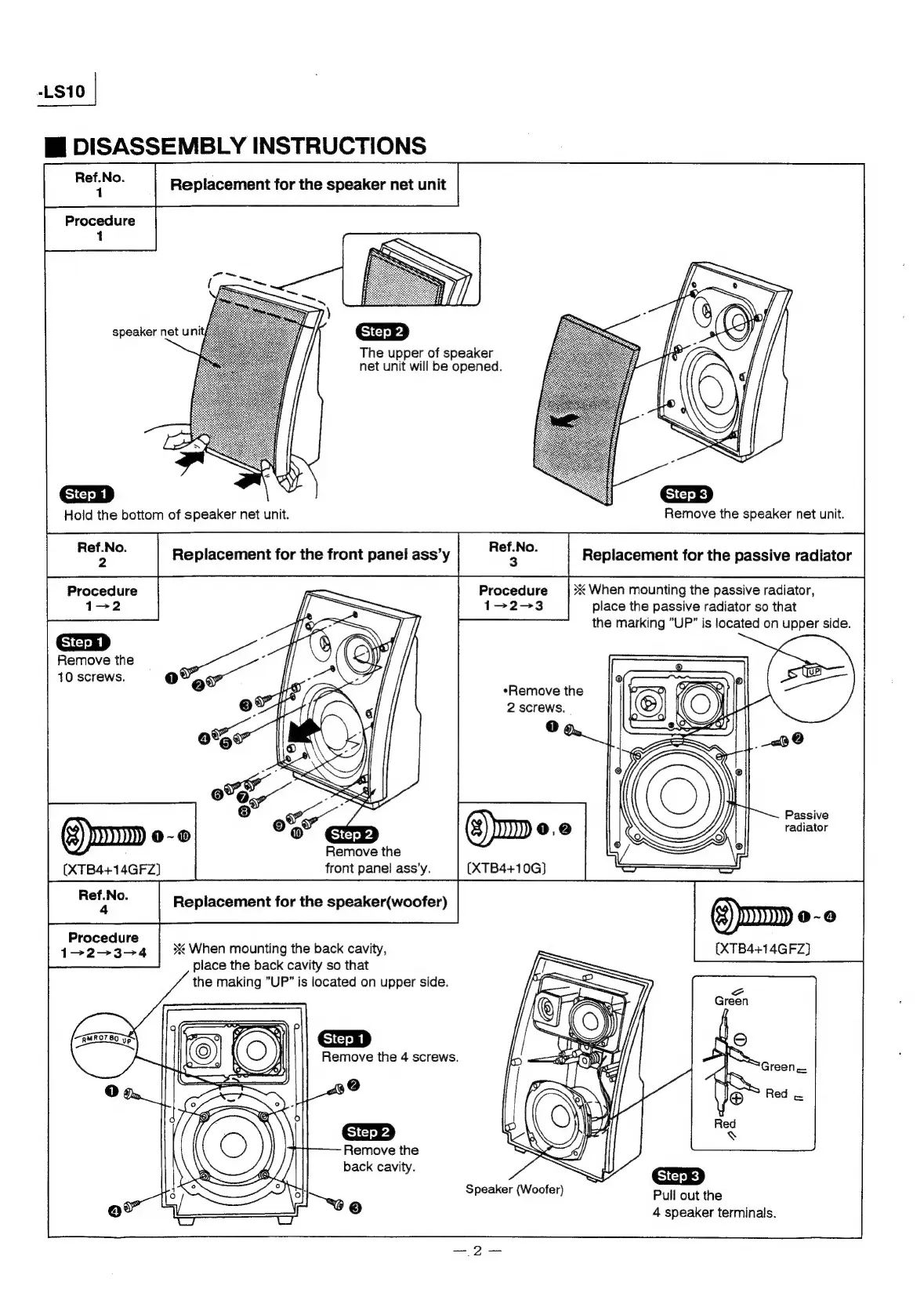

Hi DISASSEMBLY INSTRUCTIONS
ee | Replacement for the speaker net unit
Procedure
1
speaker net unit
The upper of speaker
net unit will be opened.
Hold the bottom of speaker net unit. Remove the speaker net unit.
| ee | Replacement for the front panel ass’y oe Replacement for the passive radiator
Procedure Procedure > When mounting the passive radiator,
1-2-3 place the passive radiator so that
the marking "UP” is located on upper side.
Remove the
10 screws.
«Remove the
2 screws.
@mm
o-o
@)mpo.e
eaiats
Remove the
(XTB4+14GFZ] front panel ass’y. (XTB4+10G)J
Replacement for the speaker(woofer) ©) mp ane
Procedure . : ;
172-3-4 > When mounting the back cavity, (XTB4+14GFZ]}
place the back cavity so that
the making "UP” is located on upper side.
NL
Remove the 4 screws.
sg @
Remove the
back cavity.
eg Pull out the
3]
4 speaker terminals.
