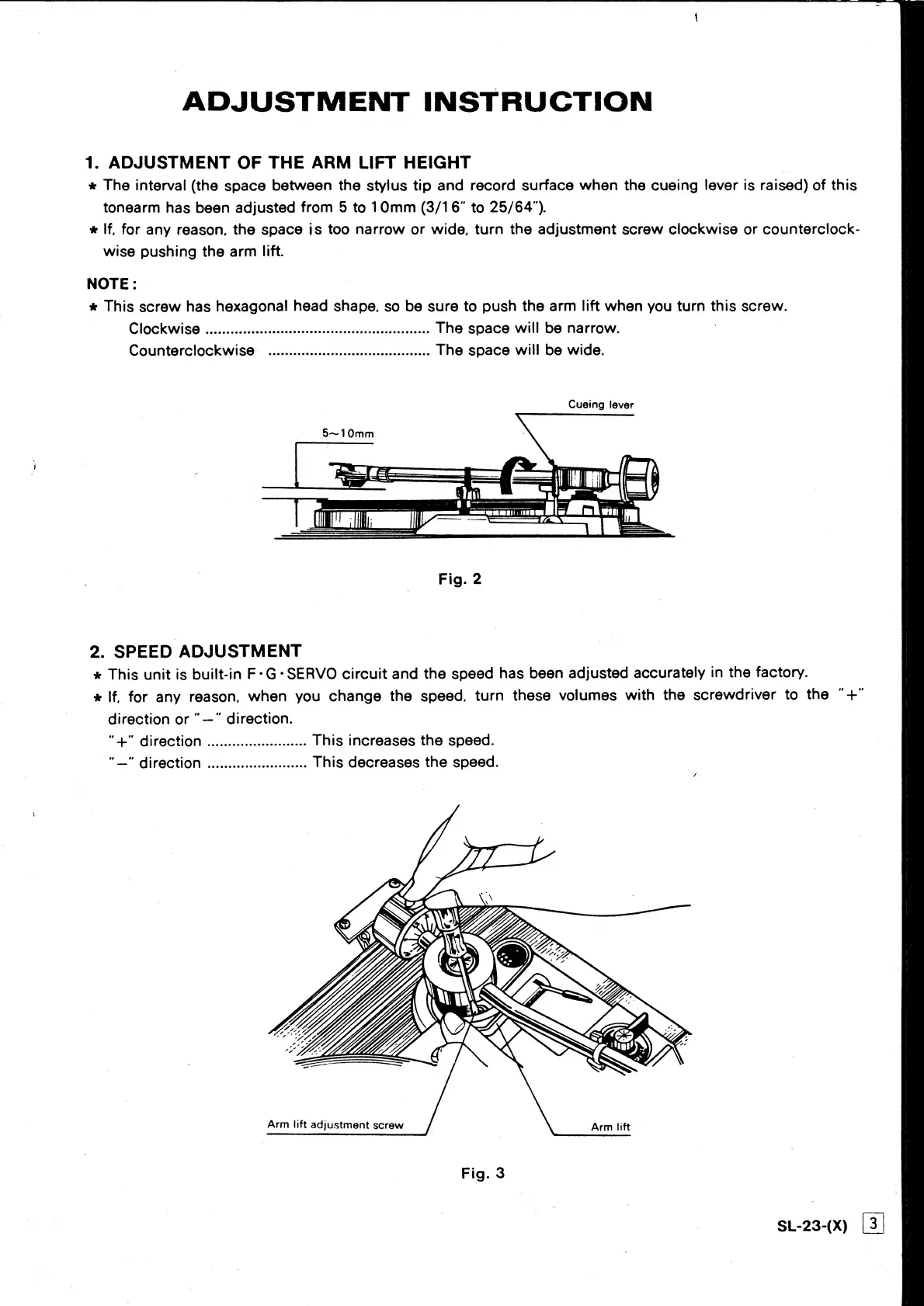

ADJUSTMENT INSTRUCTION
1. ADJUSTMENT OF THE ARM LIFT HEIGHT -
* The interval (the space between the stylus tip and record surface when the cueing lever is raised) of this
tonearm has been adjusted from 5 to 10mm (3/16" to 25/64").
* If. for any reason, the space is too narrow or wide, turn the adjustment screw clockwise or counterclock-
wise pushing the arm lift.
NOTE: .
* This screw has hexagonal head shape. so be sure to push the arm lift when you turn this screw.
CLOCK WISO acini sortie dacs vasa rernadeedbaietee a nareles The space will be narrow.
CounterclockWwiS@ _ ...........sccccsssssccssssecceeesecees The space will be wide.
Cueing lever
5~10mm
f
ay Mt L_| A
oe S|
a
A
a
i
Fig. 2
2. SPEED ADJUSTMENT
* This unit is built-in F-G-SERVO circuit and the speed has been adjusted accurately in the factory.
* \f, for any reason, when you change the speed, turn these volumes with the screwdriver to the “+"
direction or “—” direction.
"e” GITOCtION ..........cccscccssssees This increases the speed.
me GIFOCTION sccéacsecasteacseatieeess This decreases the speed.
Arm lift adjustment screw Arm lift
SL-23-(X)
