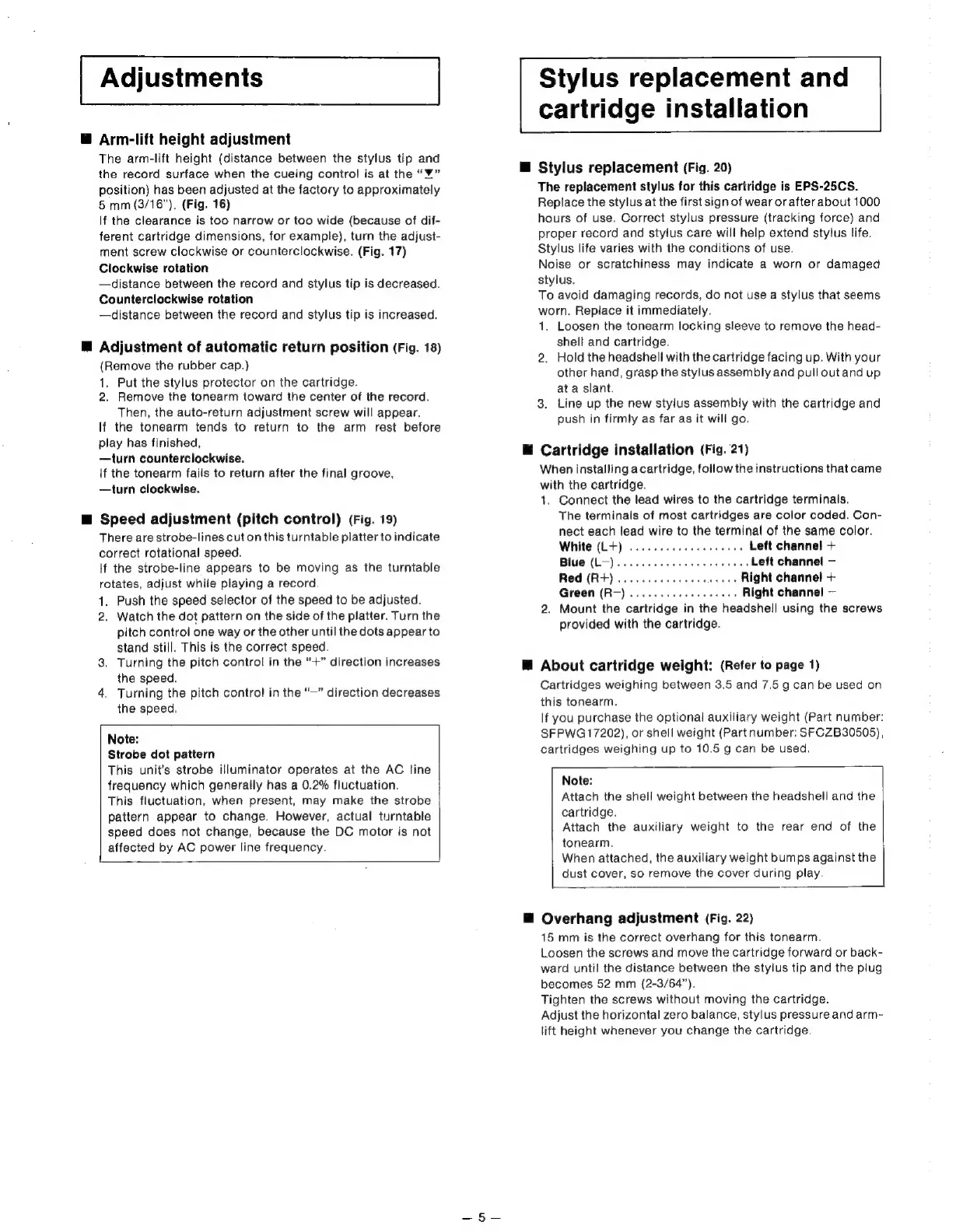

Technics SL-B202 User Manual

@ Arm-lift height adjustment
The arm-lift height (distance between the stylus tip and
the record surface when the cueing control is at the “¥”
position) has been adjusted at the factory to approximately
5 mm (3/16"), (Fig. 16)
If the clearance is too narrow or too wide (because of dif-
ferent cartridge dimensions, for example), turn the adjust-
ment screw clockwise or counterclockwise. (Fig. 17)
Clockwise rotation
—distance between the record and stylus tip is decreased.
Counterclockwise rotation
—distance between the record and stylus tip is increased.
Adjustment of automatic return position (Fig. 18)
(Remove the rubber cap.)
1, Put the stylus protector on the cartridge.
2. Remove the tonearm toward the center of the record.
Then, the auto-return adjustment screw will appear.
If the tonearm tends to return to the arm rest before
play has finished,
—turn counterclockwise.
If the tonearm fails to return after the final groove,
—turn clockwise.
Speed adjustment (pitch control) (Fig. 19)
There are strobe-lines cut on this turntable platter to indicate
correct rotational speed.
If the strobe-line appears to be moving as the turntable
rotates, adjust while playing a record
1. Push the speed selector of the speed to be adjusted.
2. Watch the dot pattern on the side of the platter. Turn the
pitch control one way or the other until the dots appear to
stand still. This is the correct speed.
3. Turning the pitch control in the “+” direction increases
the speed.
4. Turning the pitch control in the “—” direction decreases
the speed.
Note:
Strobe dot pattern
This unit’s strobe illuminator operates at the AC line
frequency which generally has a 0.2% fluctuation.
This fluctuation, when present, may make the strobe
pattern appear to change. However, actual turntable
speed does not change, because the DC motor is not
affected by AC power line frequency.
Stylus replacement and
cartridge installation
@ Stylus replacement (Fig. 20)
The replacement stylus for this cartridge is EPS-25CS.
Replace the stylus at the first sign of wear or after about 1000
hours of use. Correct stylus pressure (tracking force) and
proper record and stylus care will help extend stylus life.
Stylus life varies with the conditions of use.
Noise or scratchiness may indicate a worn or damaged
stylus.
To avoid damaging records, do not use a stylus that seems
worn. Replace it immediately.
1. Loosen the tonearm locking sleeve to remove the head-
shell and cartridge.
2. Hold the headshell with the cartridge facing up. With your
other hand, grasp the stylus assembly and pull out and up
at a slant.
3. Line up the new stylus assembly with the cartridge and
push in firmly as far as it will go.
™ Cartridge installation (Fig. 21)
When installing a cartridge, follow the instructions that came
with the cartridge.
1. Connect the lead wires to the cartridge terminals.
The terminals of most cartridges are color coded. Con-
nect each lead wire to the terminal of the same color.
White (L+) .... cere eee e eee Left channel +
BIG ()recciieatantie Gries nee Left channel —
Red (R+) 0... cee cee eee eee Right channel +
Green (R—-) oc. cece reece eens Right channel —
2. Mount the cartridge in the headshell using the screws
provided with the cartridge.
@ About cartridge weight: (Refer to page 1)
Cartridges weighing between 3.5 and 7.5 g can be used on
this tonearm.
If you purchase the optional auxiliary weight (Part number:
SFPWG17202), or shell weight (Part number: SFCZB30505),
cartridges weighing up to 10.5 g can be used.
Note:
Attach the shell weight between the headshell and the
cartridge.
Attach the auxiliary weight to the rear end of the
tonearm.
When attached, the auxiliary weight bumps against the
dust cover, so remove the cover during play.
@ Overhang adjustment (Fig. 22)
15 mm is the correct overhang for this tonearm.
Loosen the screws and move the cartridge forward or back-
ward until the distance between the stylus tip and the plug
becomes 52 mm (2-3/64").
Tighten the screws without moving the cartridge.
Adjust the horizontal zero balance, stylus pressure and arm-
lift height whenever you change the cartridge.

Technics SL-B202 Specifications

Power

power supply voltage	110-120/220-240 V
power frequency	50 or 60 Hz
power consumption	3 W

Turntable Specifications

turntable diameter	30.4 cm
turntable speeds	33-1/3 rpm and 45 rpm
pitch control range	6% adjustment range

Tonearm Specifications

effective length	230 mm
overhang	15 mm
offset angle	22°

Cartridge Specifications

frequency response	10 Hz to 35 kHz
output voltage	2.5 mV at 1 kHz
channel separation	22 dB at 1 kHz

Weight and Dimensions

dimensions	43 X 10.6 X 37.5 cm
maximum height with dust cover open	43 X 37 X 42 cm
weight	4.2 kg
