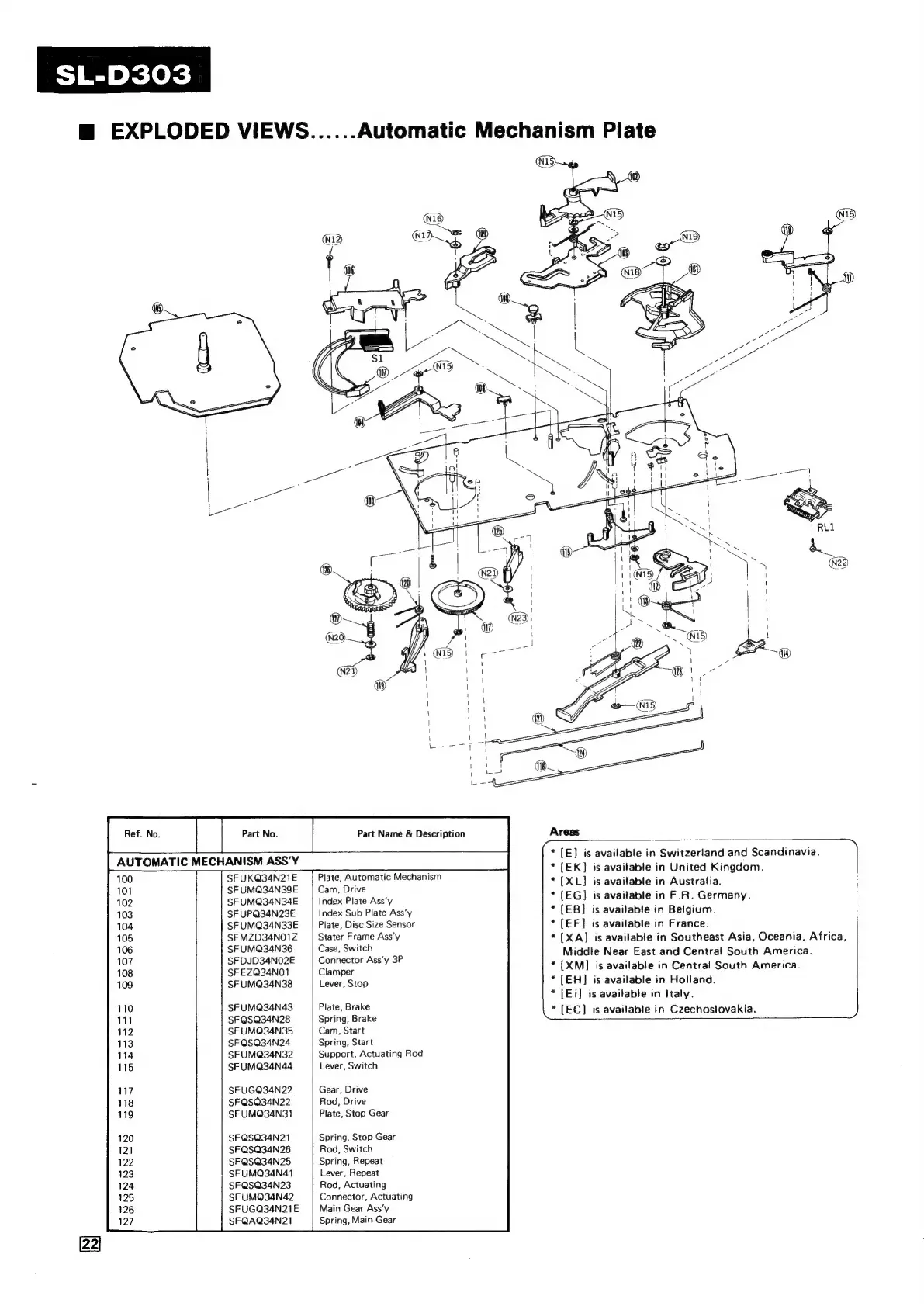

@ EXPLODED VIEWS......Automatic Mechanism Plate
Part Name & Description
Areas
AUTOMATIC MECHANISM ASS’Y
SFUKQ34N21E
SFUMQ34N39E
SFUMQ34N34E
SFUPQ34N23E
SFUMQ34N33E
SFMZD34NO01Z
SFUMQ34N36
SFDJD34NO2E
SFEZQ34N01
SFUMQ34N38
SFUMQ34N43
SFQSQ34N28
SFUMQ34N35
SFQSQ34N24
SFUMQ34N32
SFUMQ34N44
SFUGQ34N22
SFQSQ34N22
SFUMQ34N31
SFQSQ34N21
SFQSQ34N26
SFQSQ34N25
SFUMQ34N41
SFQSQ34N23
SFUMQ34N42
SFUGQ34N21E
SFQAQ34N21
Plate, Automatic Mechanism
Cam, Drive
Index Plate Ass’y
Index Sub Plate Ass’y
ate, Disc Size Sensor
tater Frame Ass’y
‘ase, Switch
‘onnector Ass‘y 3P
jamper
ever, Stop
ate, Brake
Spring, Brake
Cam, Start
Spring, Start
Support, Actuating Rod
Lever, Switch
Gear, Drive
Rod, Drive
Plate, Stop Gear
Spring, Stop Gear
Rod, Switch
Spring, Repeat
Lever, Repeat
Rod, Actuating
Connector, Actuating
Main Gear Ass‘y
Spring, Main Gear
