7. To Supply Power Source and Signal Check
To operate this unit SE-HD350 normally, it is necessary to connect to the unit ST-HD350. When
operating the unit SE-HD350, be sure to connect to the unit ST-HD350 by connection cable.
1. Connect with the Tuner (ST-HD350). Refer to Fig. 7-1.
2. Connect the AC power supply cord to the Amplifier / (SE-HD350).
Refer to Fig. 7-1.
3. Connect the speakers to speaker terminal. / Refer to Fig. 7-1.
4. Turn on the power of the Amplifier (SE-HD350).
5. Set INPUT SELECTER to select the external source (EXT) of the
Amplifier (SE-HD350).
6. Input a sound signal to external input terminal of the Tuner (ST-
HD350), and confirm to be outputted from the speaker.

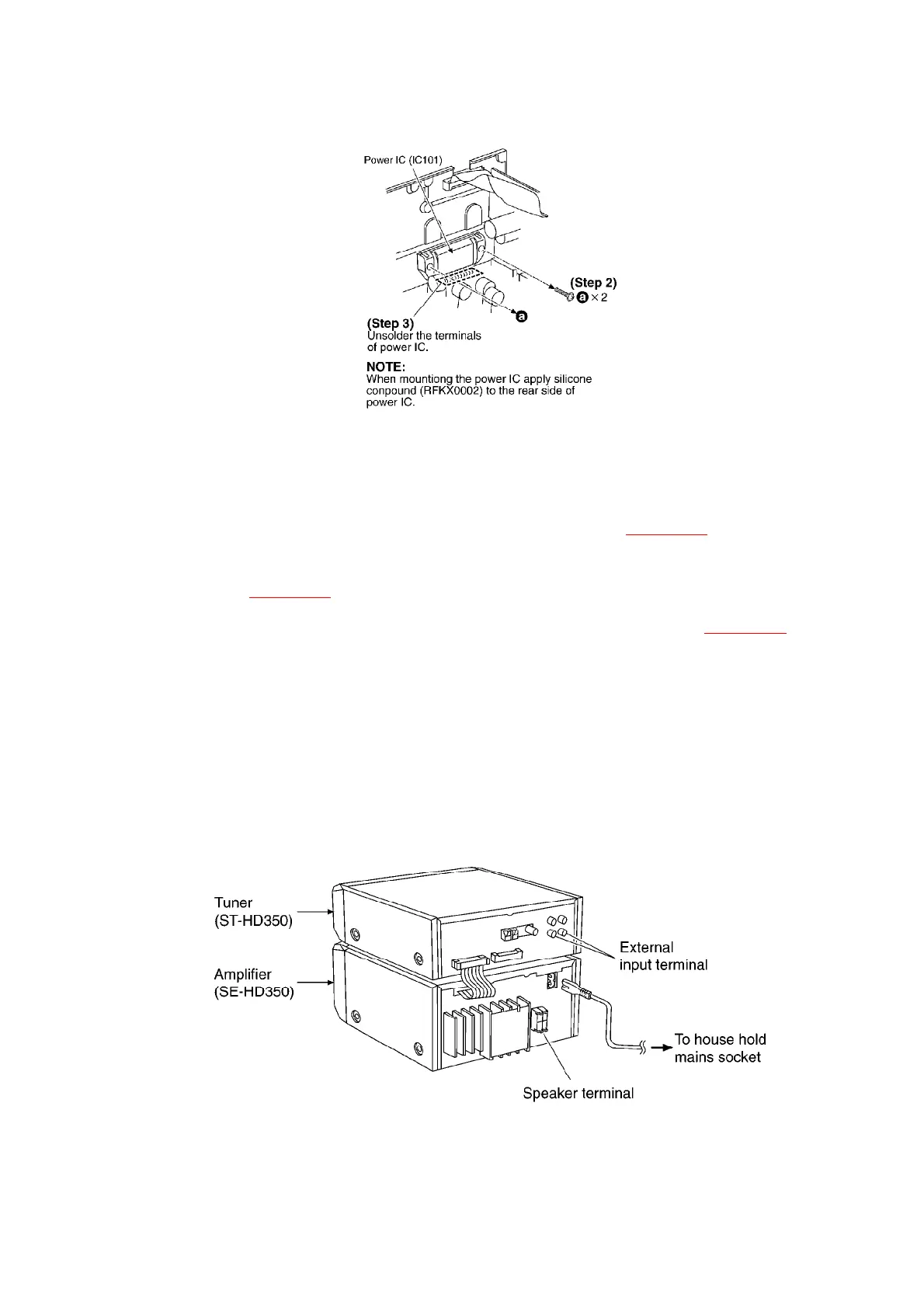

Fig. 7-1.
