Technics SL-P2000

SL-P2000

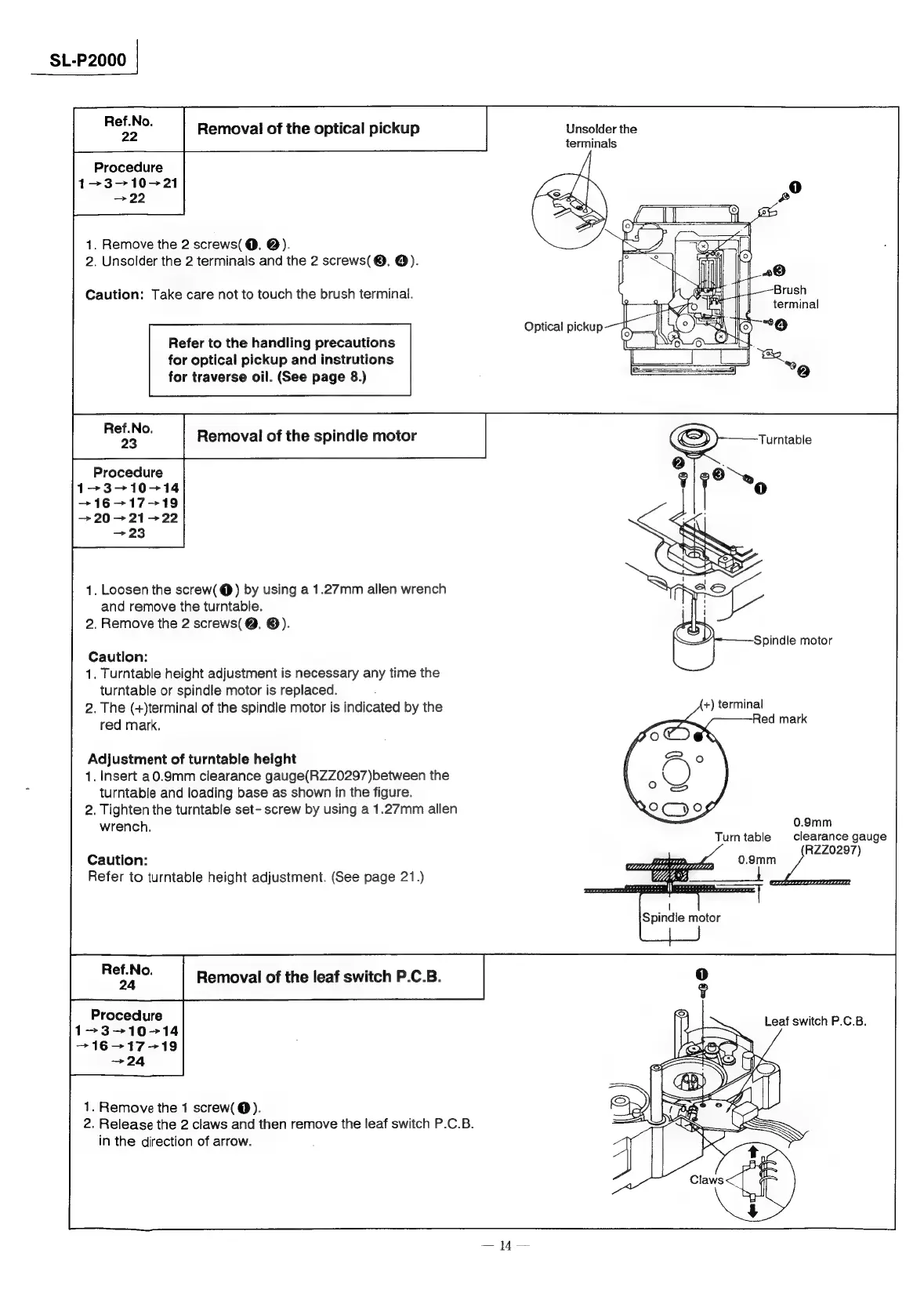

Removal of the optical pickup Unsolder the
terminals
a
rs ofa!
1. Remove the 2 screws(@, @). wv, & “tI
2. Unsolder the 2 terminals and the 2 screws(@, @). en? aa i
scala is Brush
rm it terminal
Caution: Take care not to touch the brush terminal. a z|
vee}
Procedure
1-3-10—21
> 22
i re.
Optical pickup apo
Tt Yao IY
one
Refer to the handling precautions
for optical pickup and instrutions
for traverse oil. (See page 8.)
ee | Removal of the spindle motor
Procedure
1-3-—-10-14
—-16—-17-19
—20— 21-22
> 23
1. Loosen the screw( @) by using a 1.27mm allen wrench
and remove the turntable.
2, Remove the 2 screws(@, @).
Caution:
1. Turntable height adjustment is necessary any time the
turntable or spindle motor is replaced.
2. The (+)terminal of the spindle motor is indicated by the
red mark.
Adjustment of turntable height
1. Insert a0.9mm clearance gauge(RZZ0297)between the
turntable and loading base as shown in the figure.
2. Tighten the turntable set- screw by using a 1.27mm allen
wrench, 0.9mm
Turntable clearance gauge
RZZ0297
Caution: { )
Refer to turntable height adjustment. (See page 21.)
Removal of the leaf switch P.C.B.
Procedure
1-3—-10-14
>16—-17-19
+24
1. Remove the 1 screw(@).
2. Release the 2 claws and then remove the leaf switch P.C.B.
in the direction of arrow.
