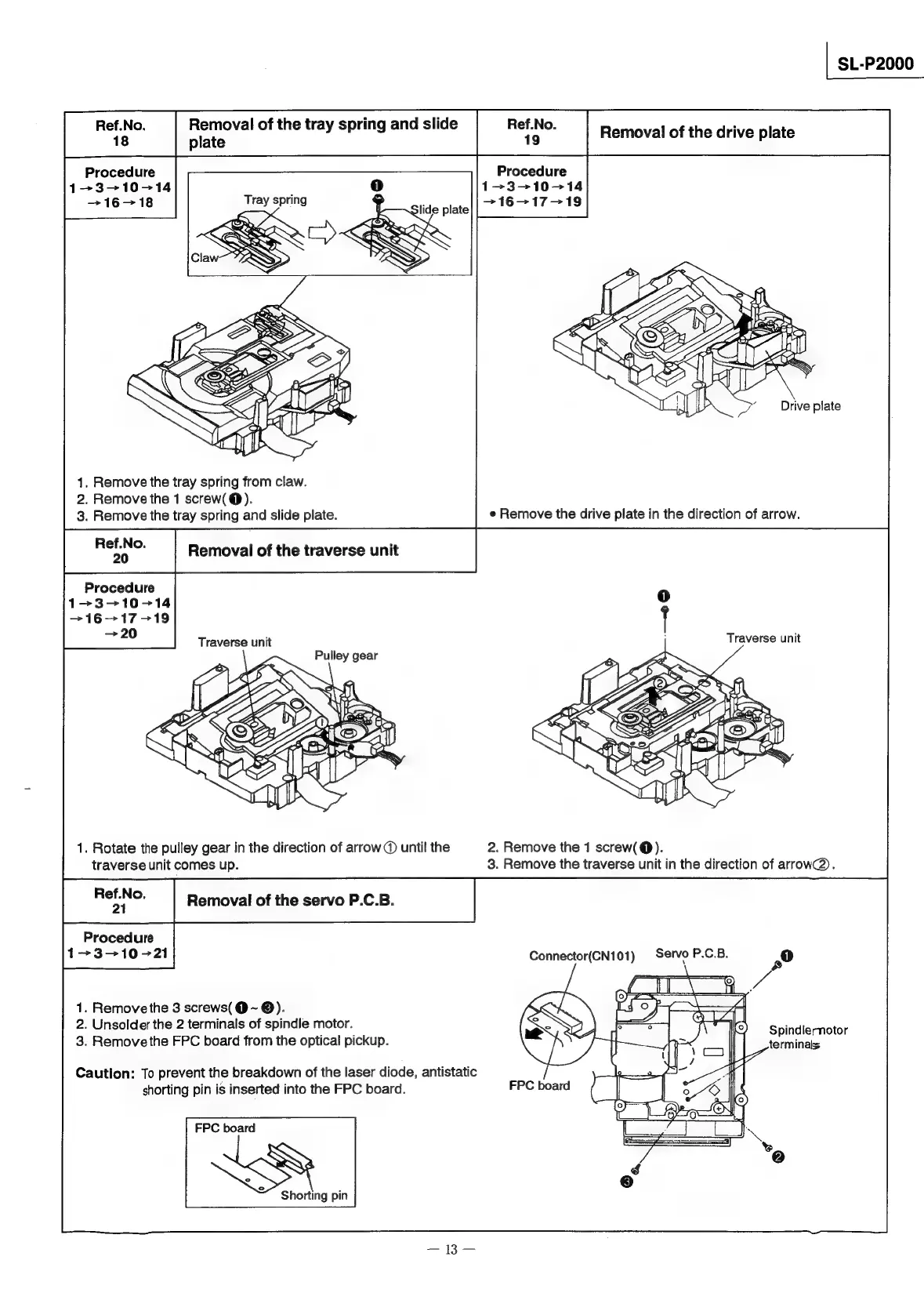

ane of the tray spring and slide Removal of the drive plate
0
Procedure
1-3-10—-14
Tray spring fida’plaie —-16—-17-19
Procedure
1. Remove the tray spring from claw.
2. Remove the 1 screw( @).
3. Remove the tray spring and slide plate. Remove the drive plate in the direction of arrow.
Procedure
1-3-10-14
1. Rotate the pulley gear in the direction of arrow @ until the 2. Remove the 1 screw(@).
traverse unit comes up. 3. Remove the traverse unit in the direction of arrow.
Procedure
1-3-1021 Connector(CN101) Servo P.C.B.
1. Remove the 3 screws( @ ~ ©). rsopy ee
TZ
7 | § ran
2. Unsolder the 2 terminals of spindle motor. =
3. Removethe FPC board from the optical pickup. ‘s .
Spindlermotor
Caution: To prevent the breakdown of the laser diode, antistatic
shorting pin is inserted into the FPC board.
FPC board
Shorting pin
