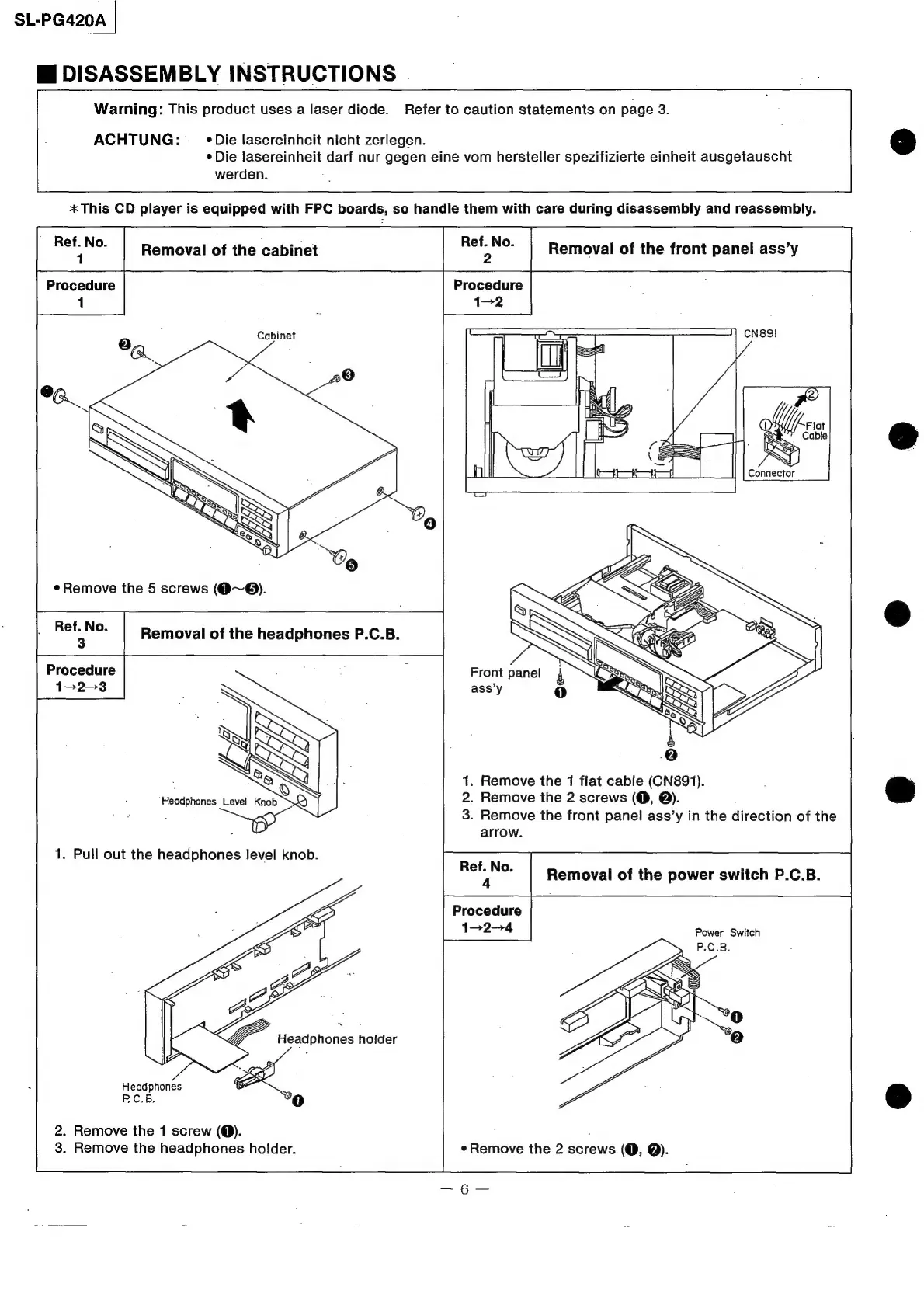

i DISASSEMBLY INSTRUCTIONS
Warning: This product uses a laser diode. Refer to caution statements on page 3.
ACHTUNG: ~ °¢Die lasereinheit nicht zerlegen. @
¢ Die lasereinheit darf nur gegen eine vom hersteller spezifizierte einheit ausgetauscht
werden.
* This CD player is equipped with FPC boards, so handle them with care during disassembly and reassembly.
heals Removal of the cabinet jects Removal of the front panel ass’y
Procedure Procedure
1 1-2
Cabinet
20
eRemove the 5 screws (@~®6).
peer Removal of the headphones P.C.B.
Front panel
ass’y
Procedure
1-2-3
1. Remove the 1 flat cable (CN891).
2. Remove the 2 screws (O, @).
3. Remove the front panel ass’y in the direction of the
arrow.
eer Removal of the power switch P.C.B.
Procedure
1-2-4 Power Switch
Headphones
(7)
2. Remove the 1 screw (Q). ;
3. Remove the headphones holder. e Remove the 2 screws (O, @).
