SL-PJ27
Mi

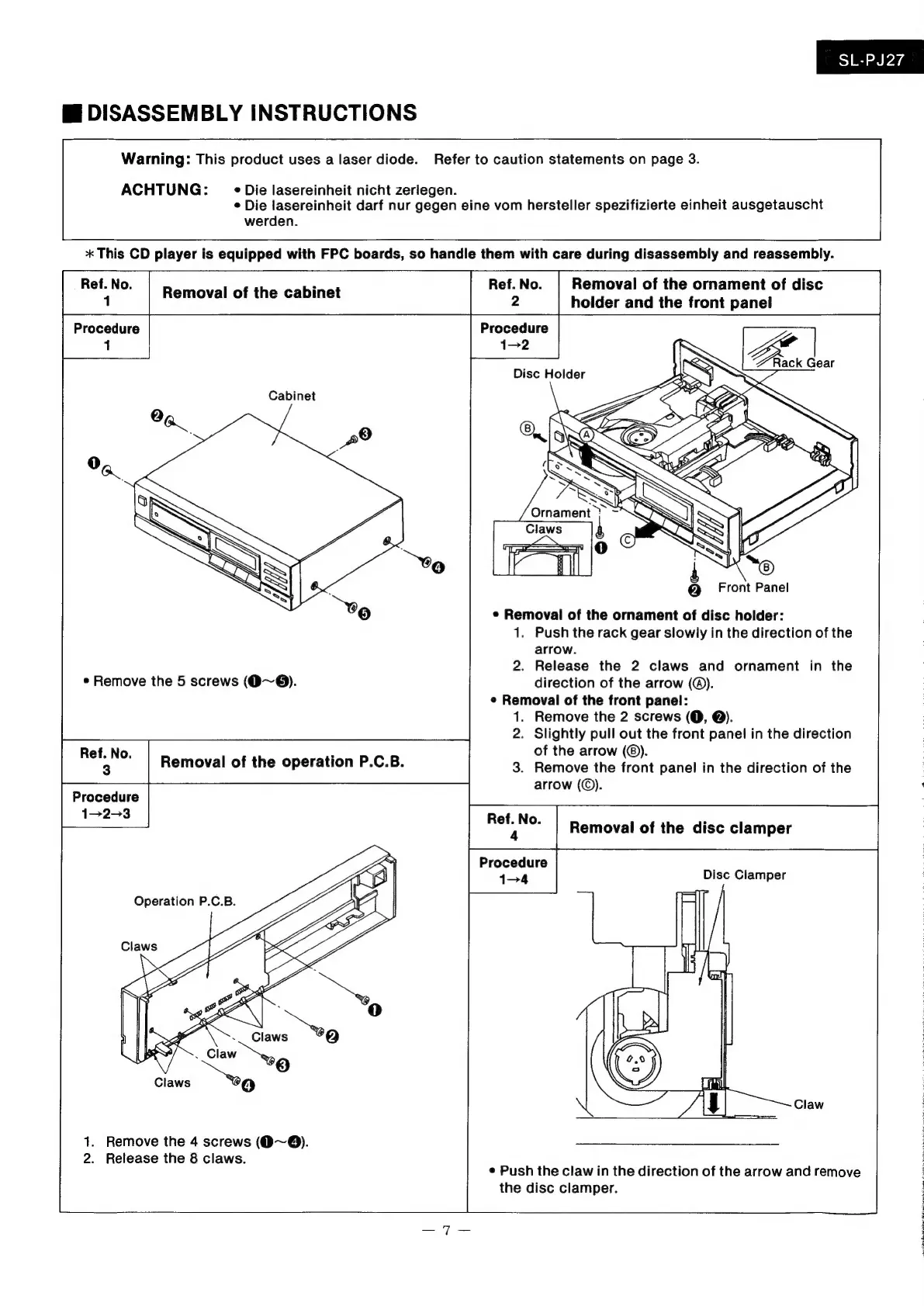

DISASSEMBLY
INSTRUCTIONS
Warning:
This
product
uses
a
laser
diode.
Refer
to
caution
statements
on
page
3.
ACHTUNG:
_
«Die
lasereinheit
nicht
zerlegen.
¢
Die
lasereinheit
darf
nur
gegen
eine
vom
hersteller
spezifizierte
einheit
ausgetauscht
werden.
*
This
CD
player
is
equipped
with
FPC
boards,
so
handle
them
with
care
during
disassembly
and
reassembly.
Ref.
No.
Ref.
No.
Removal
of
the
ornament
of
disc
Removal
of
the
cabinet
1
2
holder
and
the
front
panel
Procedure
Procedure
1
Disc
Holder
Cabinet
Front
Panel
¢
Removal
of
the
ornament
of
disc
holder:
1.
Push
the
rack
gear
slowly
in
the
direction
of
the
arrow.
2.
Release
the
2
claws
and
ornament
in
the
¢
Remove
the
5
screws
(@~6).
direction
of
the
arrow
(@).
¢
Removal
of
the
front
panel:
1.
Remove
the
2
screws
(Q,
@).
2.
Slightly
pull
out
the
front
panel
in
the
direction
of
the
arrow
(®).
Ref.
No.
3
Removal
of
the
operation
P.C.B.
3.
Remove
the
front
panel
in
the
direction
of
the
:
arrow
(©).
’
Procedure
1-2-3
Procedure
1-4
Operation
P.C.B.
os
Remove
the
4
screws
(9~®).
2.
Release
the
8
claws.
e
Push
the
claw
in
the
direction
of
the
arrow
and
remove
the
disc
clamper.
|
