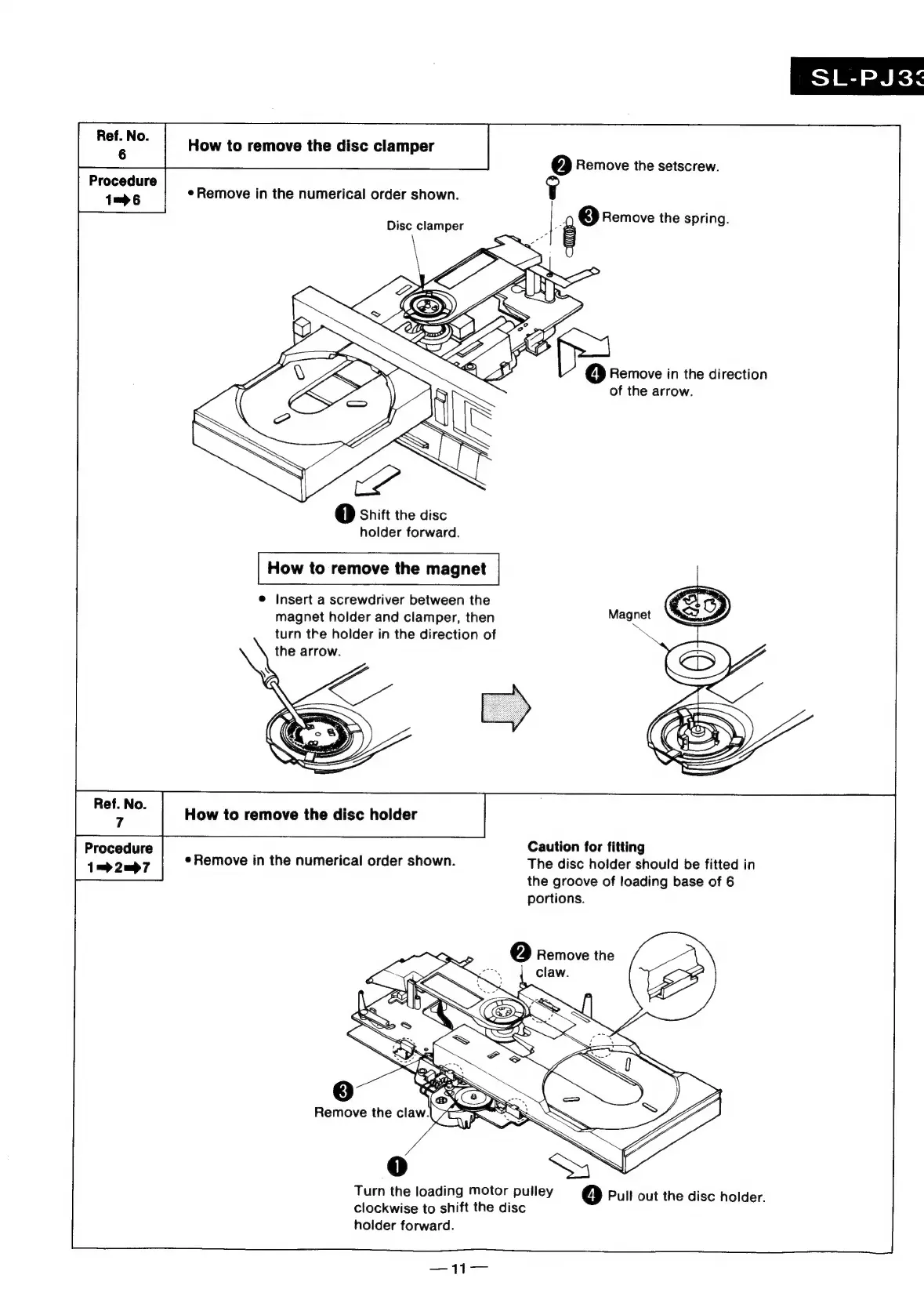

a How to remove the disc clamper
Procedure . ;
1=>6 eRemove in the numerical order shown.
Disc clamper
Q Remove the setscrew.
Remove in the direction
of the arrow.
@ Shift the disc
holder forward.
® Insert a screwdriver between the
magnet holder and clamper, then Magnet
turn the holder in the direction of
the arrow.
How
to
remove
the
disc
holder
Procedure ; ; Caution for fitting
1—>2up7 ¢ Remove in the numerical order shown. The disc holder should be fitted in
the groove of loading base of 6
portions.
Remove the
Turn the loading motor pulley
clockwise to shift the disc
holder forward.
© Pull out the disc holder.
=A
