Technics SL-PS670A Service Manual

SL-PS670A

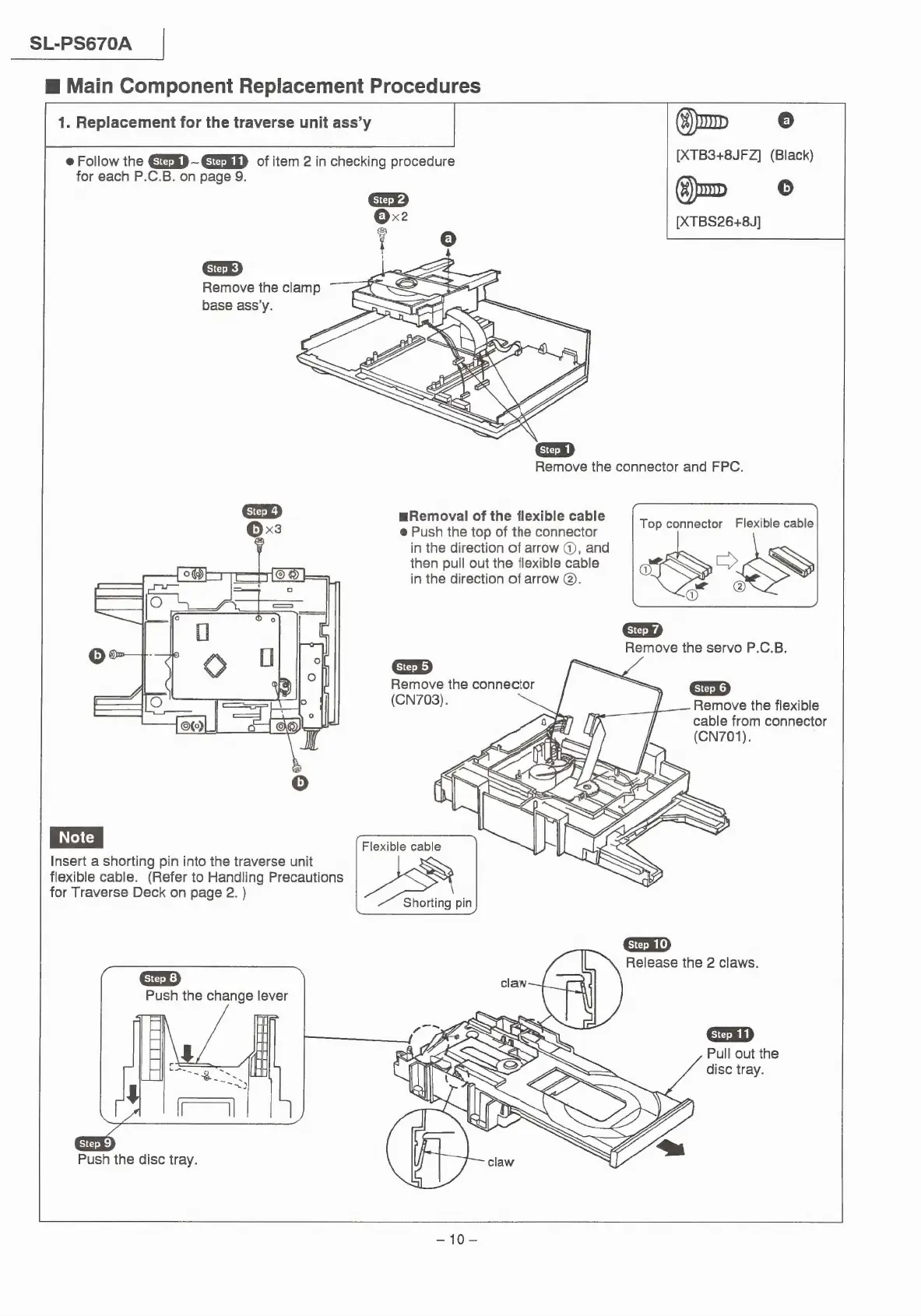

= Main Component Replacement Procedures
1. Replacement for the traverse unit ass’y
@ Follow the G2) ~ GEER) of item 2 in checking procedure
for each P.C.B. on page 9.
(¥) a)
[XTB3+8JFZ] (Black)
(}) oD ©
[XTBS26+8J]
cap
Remove the clamp
base ass’y.
Remove the connector and FPC.
mRemoval of the flexible cable ‘
@ Push the top of the connector Top connector Flexible cable
in the direction of arrow @), and
then pull out the flexible cable = SS
in the direction of arrow @.
Remove the servo P.C.B.
{Step 5)
Remove the connector Cap
(CN703).
Remove
the
flexible
cable from connector
(CN701).
Flexible cable
Insert a shorting pin into the traverse unit
flexible cable. (Refer to Handling Precautions
for Traverse Deck on page 2. ) Shorting Bh
Push the change lever
Estep 11)
Pull out the
disc tray.
Push the disc tray.
ZA

Technics SL-PS670A Specifications

General

Brand	Technics
Model	SL-PS670A
Category	CD Player
Language	English
