Technics SL-PS670A

SL-PS670A

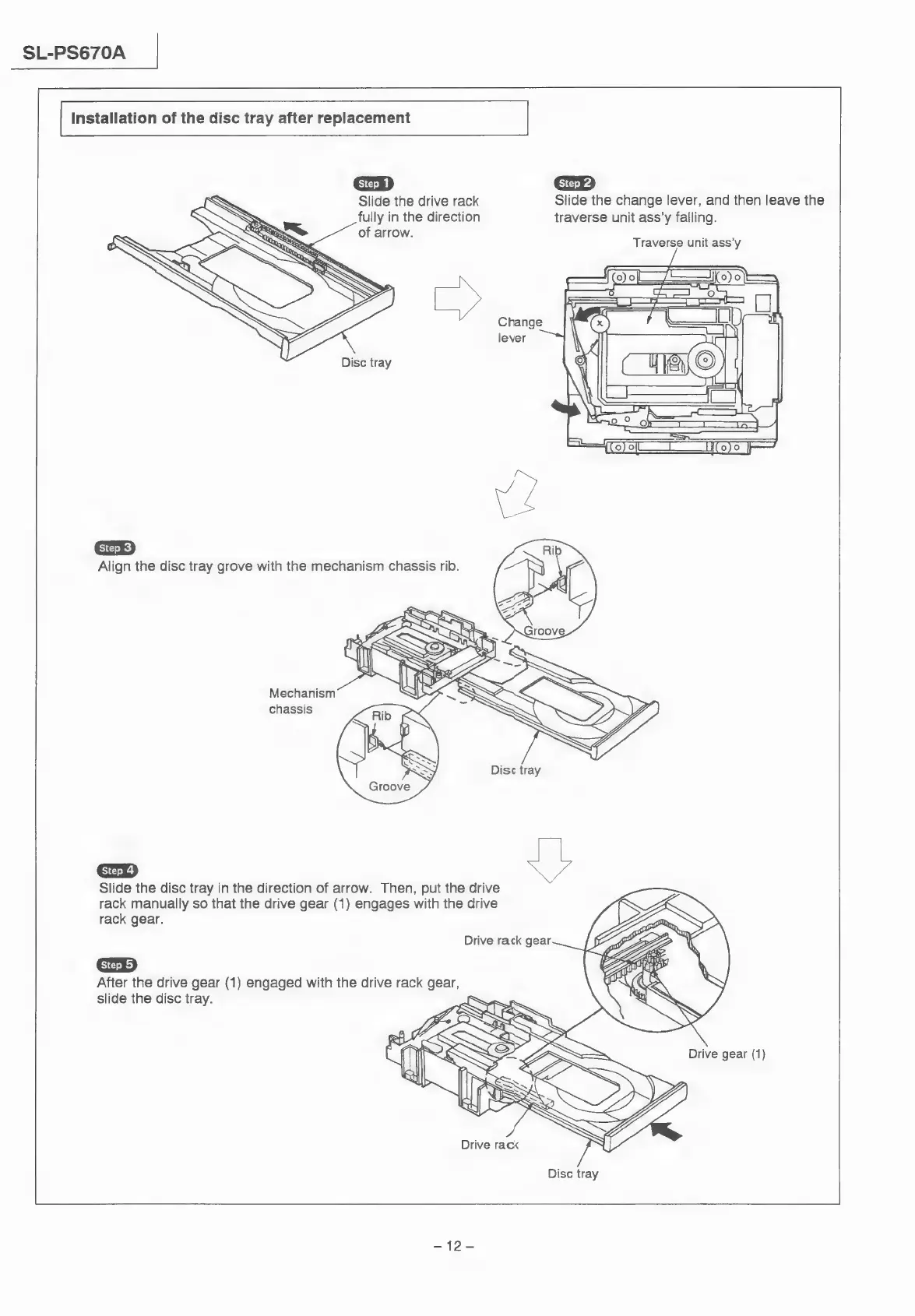

| Installation of the disc tray after replacement
cD
Slide the drive rack Slide the change lever, and then leave the
fully in the direction traverse unit ass’y falling.
of arrow.
Traverse unit ass’y
Change
lever
Disc tray
Align the disc tray grove with the mechanism chassis rib.
Mechanism
chassis
{step 4)
Slide the disc tray in the direction of arrow. Then, put the drive
rack manually so that the drive gear (1) engages with the drive
rack gear.
Drive rack gear
After the drive gear (1) engaged with the drive rack gear,
slide the disc tray.
Disc tray
