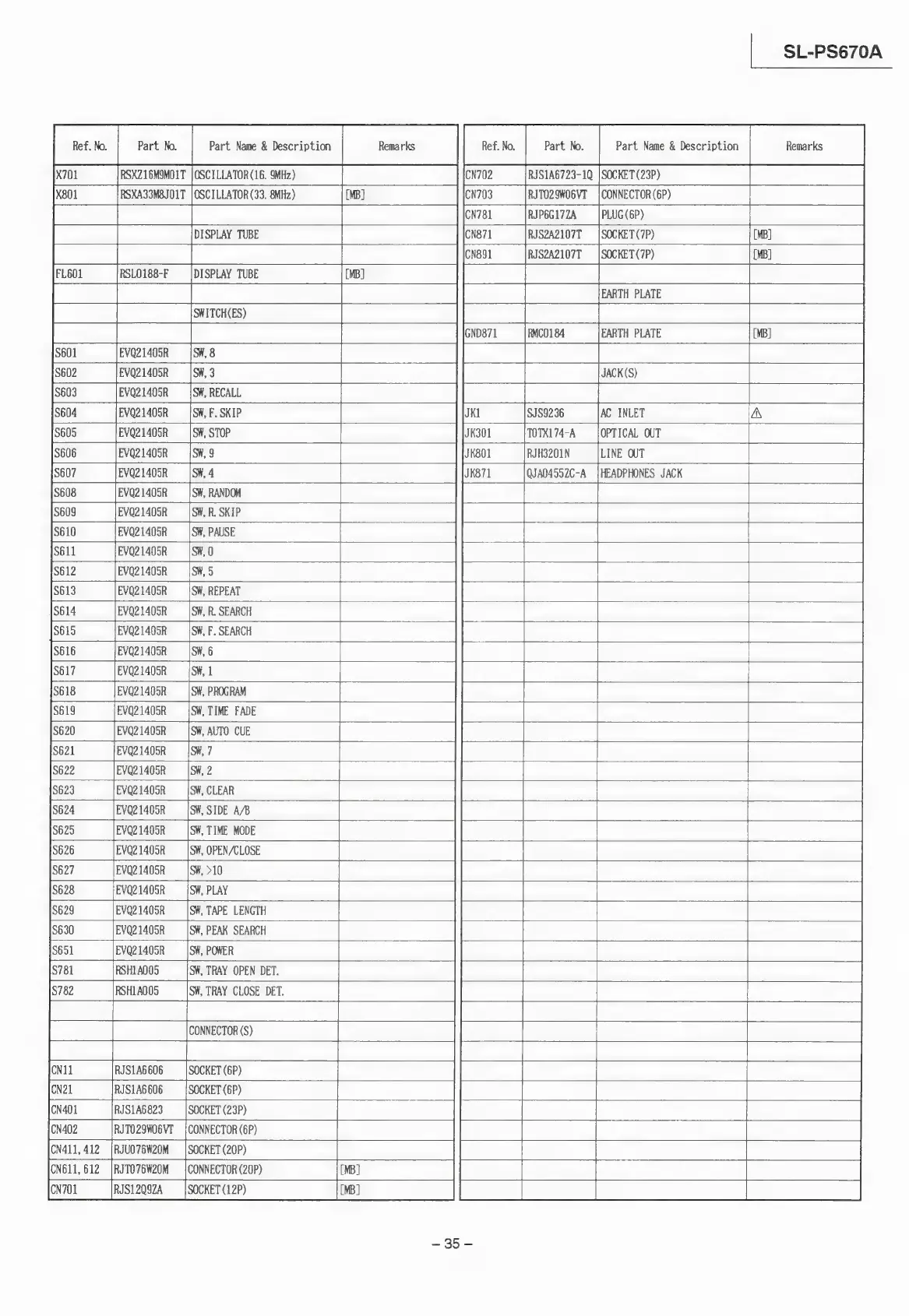

SL-PS670A
= 95 —
RSXZIGMOMOLT [OSCILLATOR(16. 9MHz) |
x801 RSXA33MBJO1T [OSCILLATOR (33. 8MHHz) [MB]
PLUG (6P)
DISPLAY TUBE SOCKET (7P)
| SOCKET (7P)
RSLO188-F [DISPLAY TUBE
EARTH PLATE
SWITCH(ES)
ig cND871 ‘| RMCO184 EARTH PLATE [MB]
S601 EvQ21405R — |SW, 8 T =
$602 Ev21405R —|SW, 3 JACK(S)
$603 EVO21405R SW, RECALL
$604 EVO21405R — |SW, F. SKIP $JS9236 AC INLET
$605 EVQ21405R — |SW, STOP TOTX174-A [OPTICAL OUT
$606 EVO21405R — |SW, 9 RJH3201N [LINE OUT
$607 EVO21405R — |SW, 4 JK871___[QUA045620-A [HEADPHONES JACK
$608 EVQ21405R —_|SW, RANDOM
$609 EVQ21405R SW, R. SKIP [
EVQ21405R —_|SW, PAUSE
S611 Eva21405R — |SW,0
S612 Eva21405R — |SW,5
$613 EVO21405R —_|SW, REPEAT
S614 EVO21405R — |SW,R. SEARCH
S615 EVO21405R SW, F. SEARCH
S616 Eva21405R —_|SW, 6
S617 Eva21405R |S, 1
$618 EVQ21405R _ |SW, PROGRAM
$619 leva21405R SW, TIME FADE
$620 EVO21405R SW, AUTO CUE |
S621 Evo21405R —|sw,7
$622 EVQ21405R SW, 2
$623 EVQ21405R —_|SH, CLEAR
$624 FVQ21405R — |SW, SIDE A/B
$625 EVO21405R — |SW, TIME MODE
$626 EVQ21405R —_|SW, OPEN/CLOSE
$627 EvO21405R —_|SW, >10
628 ‘| Eva21405R SW, PLAY
$629 EVO21405R SW, TAPE LENGTH
$630 EVO21405R — (SW, PEAK SEARCH
S651 EVO21405R SW, POWER
RSHIAOOS ——_‘|SW, TRAY OPEN DET.
RSHIADO5 ——_-‘|SW, TRAY CLOSE DET.
CONNECTOR (S)
RJSIA6606 | SOCKET(6P)
CN21 RJSIA6606 SOCKET (6P)
CN401 RJSIAG823 [SOCKET (23P)
cn402 RJTOZQWOBVT [CONNECTOR (6P)
CN411, 412 |RJUO76W20M [SOCKET (20P)
CN611, 612 |RJTO76W20M — [CONNECTOR (20P) [MB]
CN701 RJS12Q92A [SOCKET (12P) [MB]
