Technics SL-PS670A Service Manual

SL-PS670A

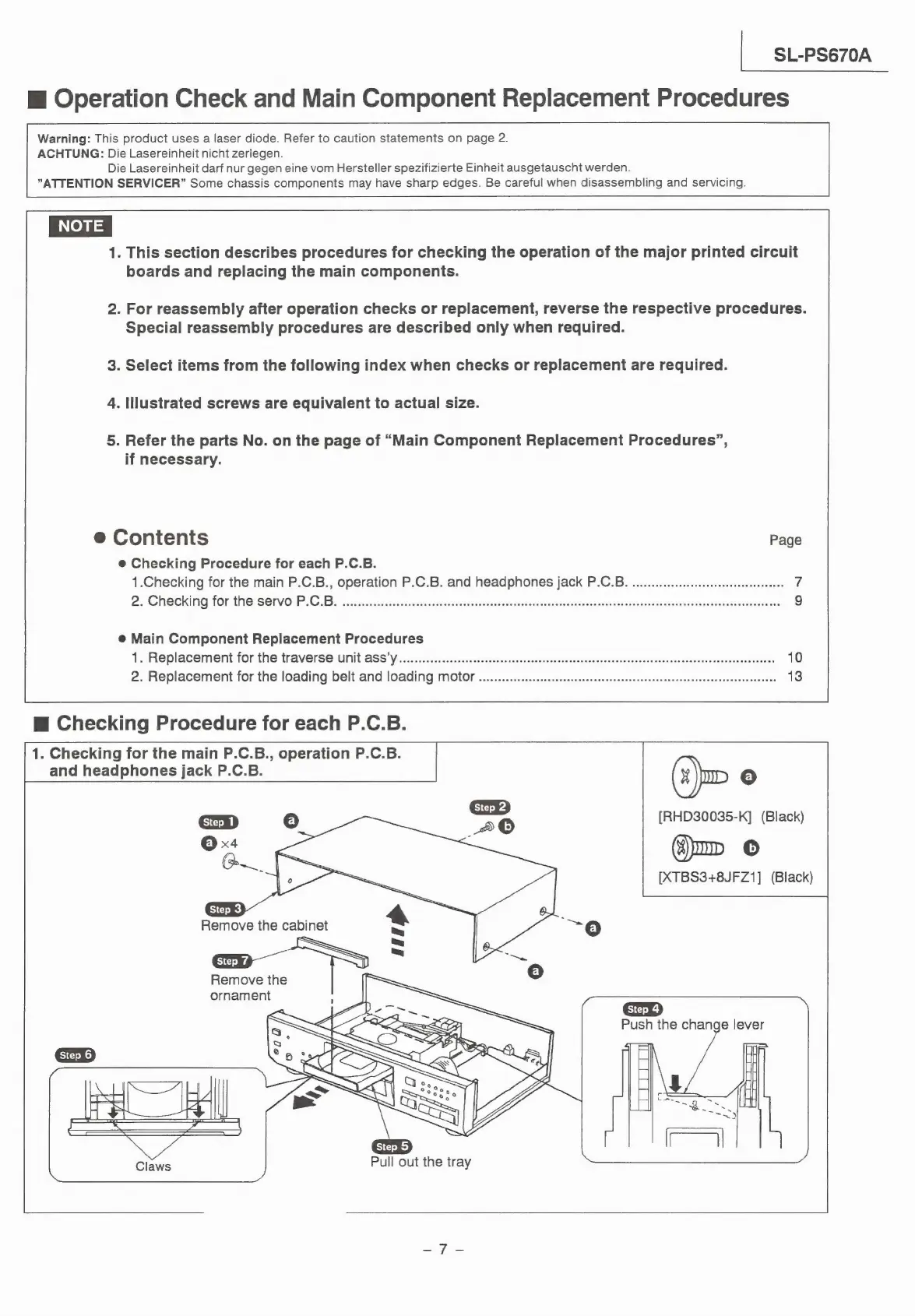

m@ Operation Check and Main Component Replacement Procedures
Warning: This product uses a laser diode. Refer to caution statements on page 2.
ACHTUNG: Die Lasereinheit nicht zerlegen.
Die Lasereinheit darf nur gegen eine vom Hersteller spezifizierte Einheit ausgetauscht werden.
"ATTENTION SERVICER” Some chassis components may have sharp edges. Be careful when disassembling and servicing.
1. This section describes procedures for checking the operation of the major printed circuit
boards and replacing the main components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
3. Select items from the following index when checks or replacement are required.
4. Illustrated screws are equivalent to actual size.
5. Refer the parts No. on the page of “Main Component Replacement Procedures”,
if necessary.
e Contents Page
@ Checking Procedure for each P.C.B.
1.Checking for the main P.C.B., operation P.C.B. and headphones jack P.C.B. oo... eeeeeereeeeeneeeeeeee if
2. Checking tor the: SOrvo: PoC Bs vscccssscexcceecescevecesce cas venvecviveceneatscecuetsavasecisaesvovastieceuceuvawestnvarteuvardccuseauscuneeavens 9
@ Main Component Replacement Procedures
1. Replacement tor the traverse Unit: ASS Y sc.ccvcescwsccnveeeoscesesssreseseeusvaaccenesseterssnis neversviacnuarsartavnepnaceeesaetevenes 10
2. Replacement for the loading belt and lOadiNg MOTO ..............ssccsccsesseesssscesssceseessseseesersseseseeeeetscessseaete 13
m@ Checking Procedure for each P.C.B.
1. Checking for the main P.C.B., operation P.C.B.
and headphones jack P.C.B. (x) ra)
[RHD30035-K] (Black)
@mp ©
[XTBS3+8JFZ1] (Black)
{step 1)
© x4
(_.
step 7 ail
Remove the
ornament
Pull out the tray

Technics SL-PS670A Specifications

General

Brand	Technics
Model	SL-PS670A
Category	CD Player
Language	English
