Technics SL-PS670D - Main Component Replacement Procedures; Traverse Unit Assembly Replacement

SL-PS670A__—|

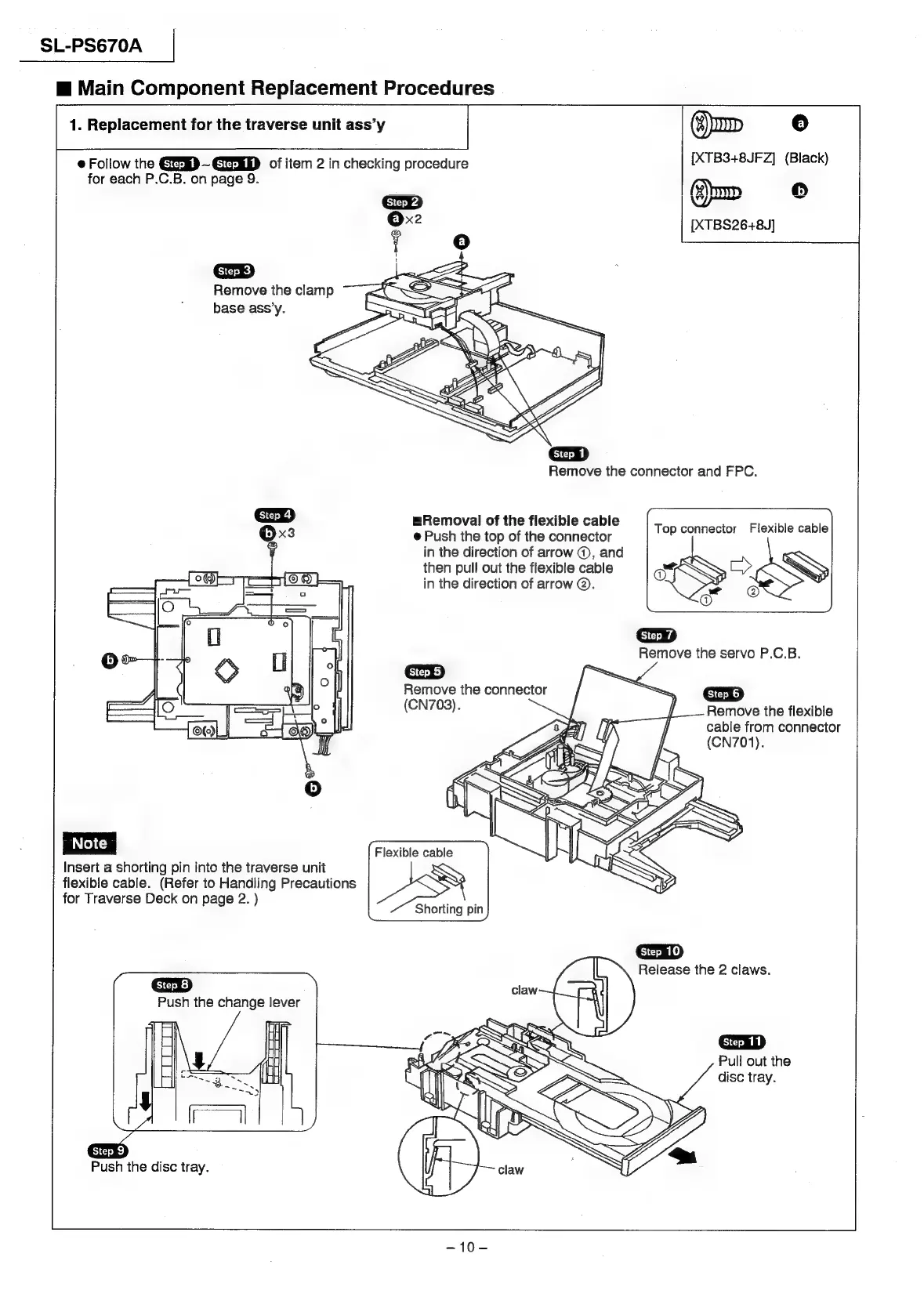

lm Main Component Replacement Procedures
1. Replacement for the traverse unit ass’y (¥) oD ©
@ Follow the G2) ~ GEER of item 2 in checking procedure [XTB3+8JFZ] (Black)
for each P.C.B. on page 9.
[XTBS26+8J]
Remove the clamp
base ass’y.
=#Removal of the flexible cable
e Push the top of the connector
in the direction of arrow @, and
then pull out the flexible cable
in the direction of arrow @.
Remove the servo P.C.B.
Remove the connector
(CN703).
Remove
the
flexible
cable from connector
(CN701).
Flexible cable
Insert a shorting pin into the traverse unit
flexible cable. (Refer to Handling Precautions
for Traverse Deck on page 2. ) Shorting pin
Push the change lever
Cap
Pull out the
disc tray.
Push the disc tray.
