Technics SU-CH700 Service Manual

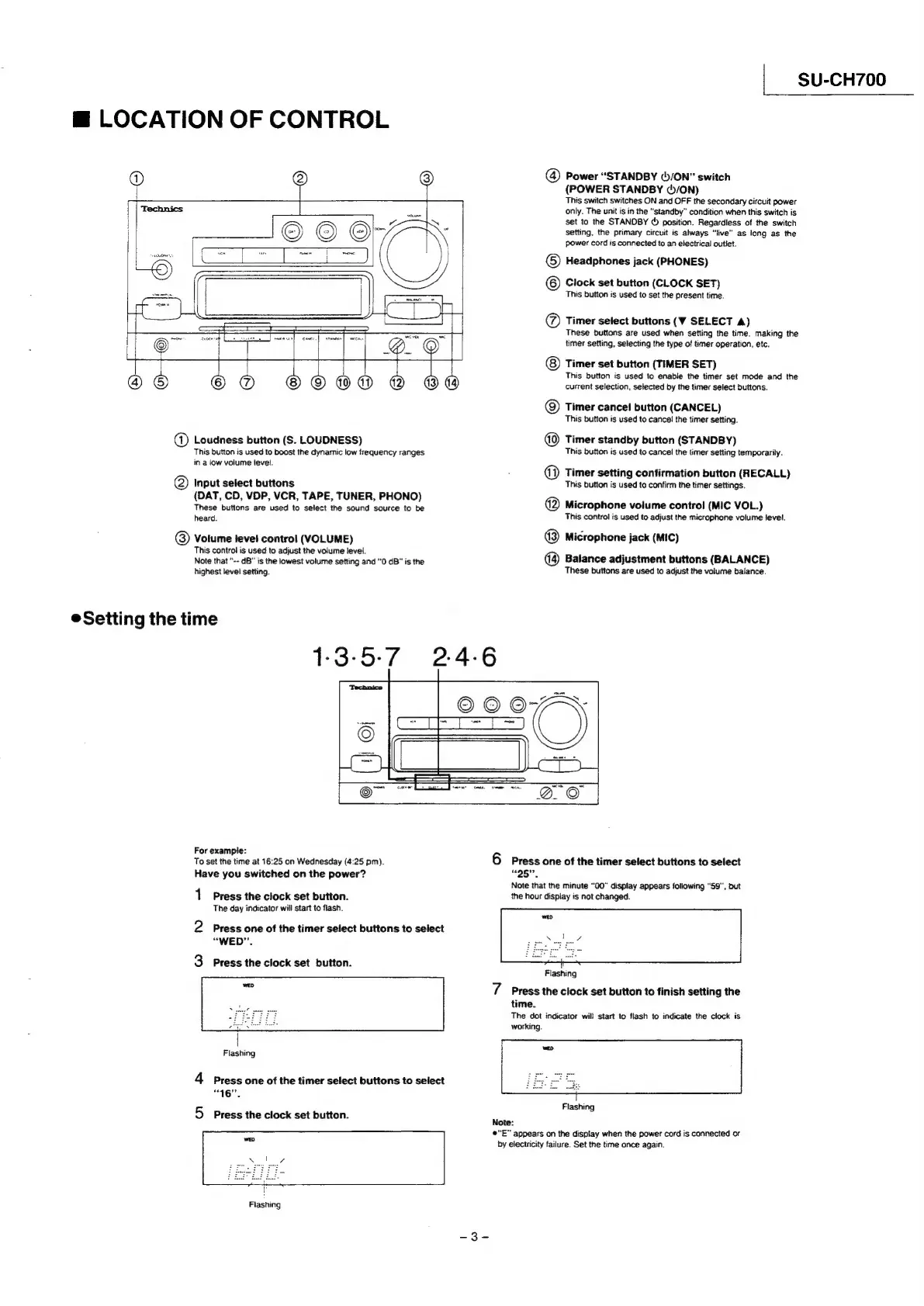

m@ LOCATION OF CONTROL
eee
@® © ©® OO OY ® OW
(1) Loudness button (S. LOUDNESS)
This button is used to boost the dynamic low frequency ranges
in a iow volume level.
@ Input select buttons
(DAT, CD, VDP, VCR, TAPE, TUNER, PHONO)
These buttons are used to select the sound source to be
heard.
® Voiume levei control (VOLUME)
This control is used to adjust the volume level.
Note that “-- dB" is the lowest volume setting and “O dB” is the
highest level setting.
Setting the time
SU-CH700
@) Power “STANDBY ()/ON" switch
(POWER STANDBY (5/ON)
This switch switches ON and OFF the secondary circuit power
only. The unit is in the “standby” condition when this switch is
set to the STANDBY © position. Regardless of the switch
setting, the primary circuit is always “live” as long as the
power cord is connected to an electrical outiet.
©) Headphones jack (PHONES)
© Clock set button (CLOCK SET)
This button is used to set the present time.
?) Timer select buttons (WV SELECT A)
These buttons are used when setting the time, making the
timer setting, selecting the type of timer operation, etc.
Timer set button (TIMER SET)
This button is used to enable the timer set mode and the
current selection, selected by the timer select buttons.
@) Timer cance! button (CANCEL)
This button is used to cance! the timer setting.
Timer standby button (STANDBY)
This button is used to cancel the timer setting temporarily.
@ Timer setting confirmation button (RECALL)
This button is used to confirm the timer settings.
O) Microphone volume control (MIC VOL.)
This control is used to adjust the microphone volume level.
3) Microphone jack (MIC)
Balance adjustment buttons (BALANCE)
These buttons are used to adjust the volume balance.
1:3:5:-7 24-6
© © OF
For example:
To set the time at 16:25 on Wednesday (4:25 pm).
Have you switched on the power?
1 Press the clock set button.
The day indicator will start to flash.
2 Press one of the timer select buttons to select
“WED”.
3 Press the clock set button.
Flashing
4 Press one of the timer select buttons to select
“46”,
5 Press the clock set button.
Flashing
6 Press one of the timer select buttons to select
“95”
Note that the minute “00” display appears following 59", but
the hour display is not changed.
Flashing
7 Press the clock set button to finish setting the
time.
The dot indicator will start to flash to indicate the clock is
working.
Flashing
Note:
"E” appears on the display when the power cord is connected or
by electricity faiiure. Set the time once again.
