16
Operations
Using turntable
(16)

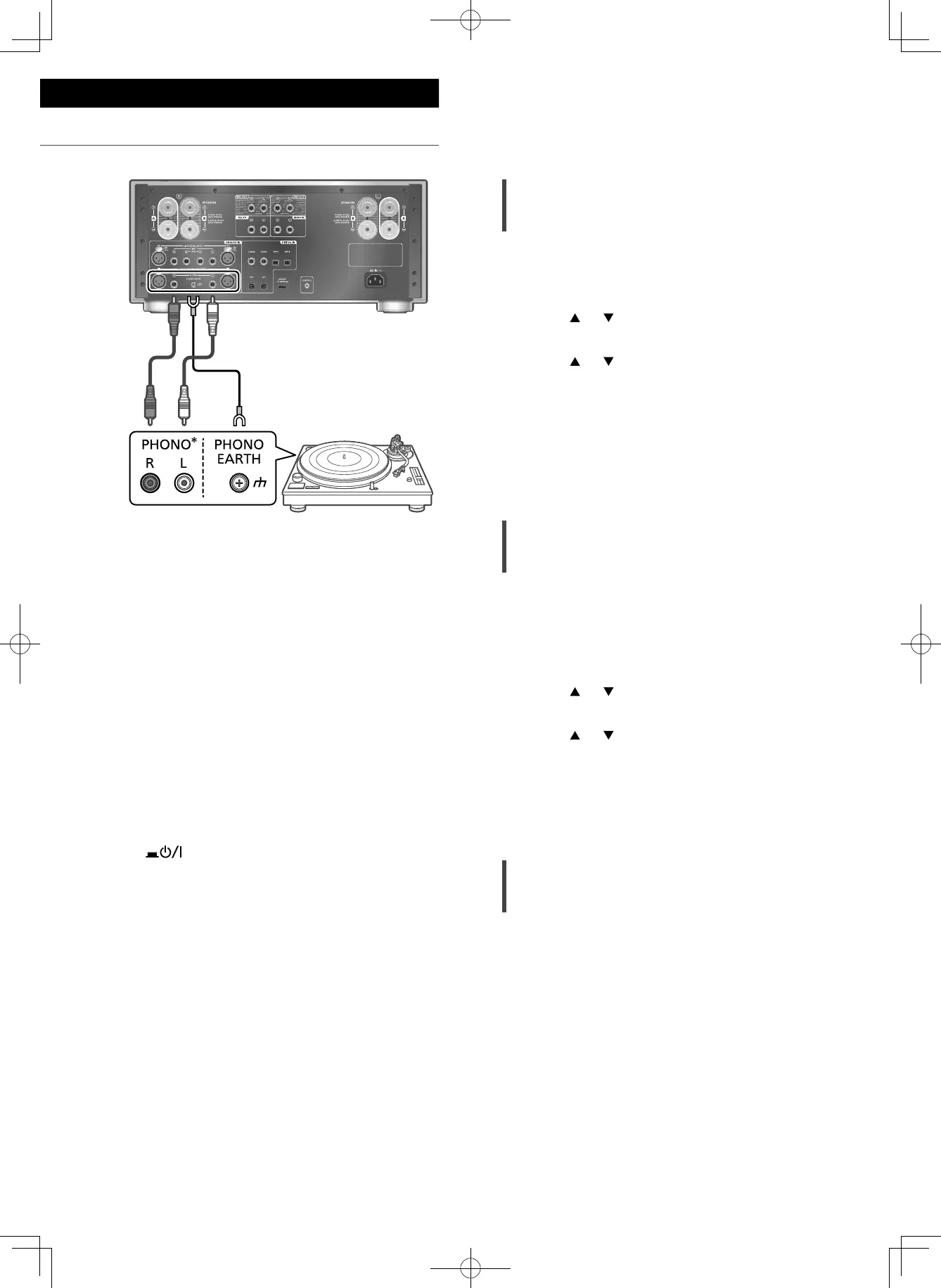

PHONO cable (not supplied)
*
PHONO earth lead
(not supplied)
Turntable
*
: The illustration shows the example when
connecting with PHONO cable. You can also
connect the device with PHONO-XLR cable.
1 Disconnect the AC mains lead.
2 Connect this unit and a turntable.
• Remove the PHONO short pins when
connecting to the analogue audio input
terminals (PHONO).
• PHONO terminals for connecting the
turntable supports MM/MC type cartridge.
(PHONO XLR terminals only supports MC
type cartridge.)
3 Connect the AC mains lead to this unit.
( 12)
4 Press the unit on/off button to the
[
] position.
5 Press [PHONO-XLR] or [PHONO] to
select “PHONO XLR”/“PHONO”.
• You can also select the input source by
turning the input selector knob on the unit.
6 Start playback on the connected
turntable.
• When connecting a turntable with a built-in
PHONO equaliser, use the analogue audio
cable to connect to the analogue audio input
terminals (LINE1 or LINE2) of this unit. ( 15)
• When connecting a turntable with a PHONO
earth lead, connect the PHONO earth lead to
the PHONO EARTH terminal of this unit.
Selecting the cartridge type
Select the settings (MM/MC) to fit the cartridge
type of the connected turntable.
1 Press [MENU].
2 Press [
], [ ] repeatedly to select
“MM/MC” and then press [OK].
3 Press [
], [ ] to select “MM”/”MC”
and then press [OK].
• Not available when “PHONO XLR” is selected as
input source. (The setting is fixed to “MC”.)
• When “MM/MC” is adjusted, “Cartridge
Optimiser” is fixed to “Off”. Set “Cartridge
Optimiser” again or select the registered data
correspond with “MM/MC”. ( 17)
Adjusting the audio input level
If sound distortion occurs or the input level is low
when using the analogue audio input terminals,
adjusting the gain may improve the sound
quality.
1 Press [MENU].
2 Press [
], [ ] to select “Gain” and
then press [OK].
3 Press [
], [ ] to adjust and then press
[OK].
• When “Gain” is adjusted, “Cartridge Optimiser”
is fixed to “Off”. Set “Cartridge Optimiser”
again or select the registered data correspond
with “Gain”. ( 17)
Optimising the character of
cartridge
This unit measures and optimises the crosstalk
and frequency characteristics of cartridge by
playing the supplied calibration record on the
connected turntable.
• Depending on the “Cartridge Optimiser”
setting, “REC OUT” turns to “Off” and the
sound does not output from the analogue
output terminals (REC OUT).
■ Prepartion
• Connect the PHONO earth lead of the turntable
to the PHONO EARTH terminal of this unit.
• Set “MM/MC” of this unit in accordance with
the cartridge type of the turntable.
• Set “Gain” of this unit in accordance with the
cartridge of connected turntable.
To Next Page
