Technics SU-X955 Service Manual

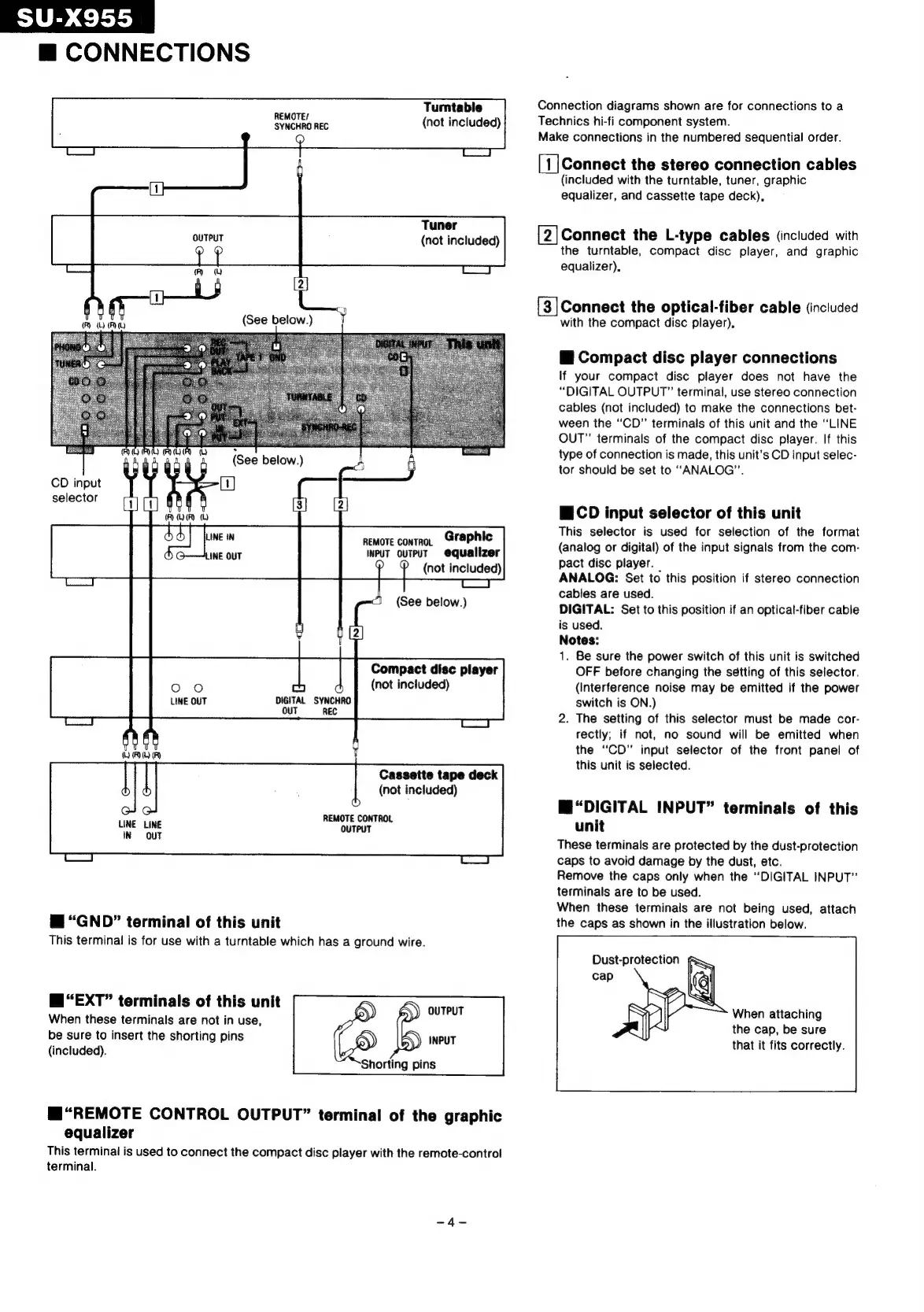

@ CONNECTIONS
Connection diagrams shown are for connections to a
Technics hi-fi component system.
Make connections in the numbered sequential order.
REMOTE/ Turntable
SYNCHRO REC (not included)
[1]Connect the stereo connection cables
(included with the turntable, tuner, graphic
equalizer, and cassette tape deck),
Tuner
(not included)
[2]Connect the L-type cables (included with
the turntable, compact disc player, and graphic
equalizer),
OUTPUT
[3]Connect the optical-fiber cable (included
with the compact disc player),
(See below.)
U
tb (RY
(Ry
@ Compact disc player connections
lf your compact disc player does not have the
“DIGITAL OUTPUT” terminal, use stereo connection
cables (not included) to make the connections bet-
ween the “CD” terminals of this unit and the “LINE
OUT” terminals of the compact disc player. If this
type of connection is made, this unit's CD input selec-
7 tor should be set to “ANALOG”.
HCD input selector of this unit
This selector is used for selection of the format
(analog or digital) of the input signals from the com-
pact disc player.
ANALOG: Set to this position if stereo connection
cables are used.
DIGITAL: Set to this position if an optical-fiber cable
is used.
Notes:
1. Be sure the power switch of this unit is switched
OFF before changing the setting of this selector.
(Interference noise may be emitted if the power
switch is ON.)
2. The setting of this selector must be made cor-
rectly; if not, no sound will be emitted when
the “CD" input selector of the front panel of
this unit is selected.
AOAO HORM
(See below.)
O)
CD input
selector
(RY (Lb
LINE IN
INE OUT
remote contro Graphic
INPUT OUTPUT equalizer
(not included)
(See below.)
Compact disc player
(not included)
Oo 0
LINE OUT DIGITAL SYNCHRO
OUT REC
OROR
Cassette tape deck
(not included)
M“DIGITAL INPUT” terminals of this
unit
These terminals are protected by the dust-protection
caps to avoid damage by the dust, etc.
Remove the caps only when the “DIGITAL INPUT”
terminals are to be used.
When these terminals are not being used, attach
LINE LINE sag tela
IN QUT
i “GND” terminal of this unit the caps as shown in the illustration below.
This terminal is for use with a turntable which has a ground wire.
Dust-protection
cap
6 ‘93 s
“EXT
terminals
of
this
unit
OUTPUT
WwhencatiaGhing
When these terminals are not in use,
;
:
:
the
cap,
be
sure
be
sure
to
insert
the
shorting
pins
INPUT
that
it
fits
correct!
(included).
y.
Shorting pins
@i“REMOTE
CONTROL
OUTPUT”
terminal
of
the
graphic
equalizer
This
terminal
is
used
to
connect
the
compact
disc
player
with
the
remote-control
terminal.
