Technics SU-X955 Service Manual

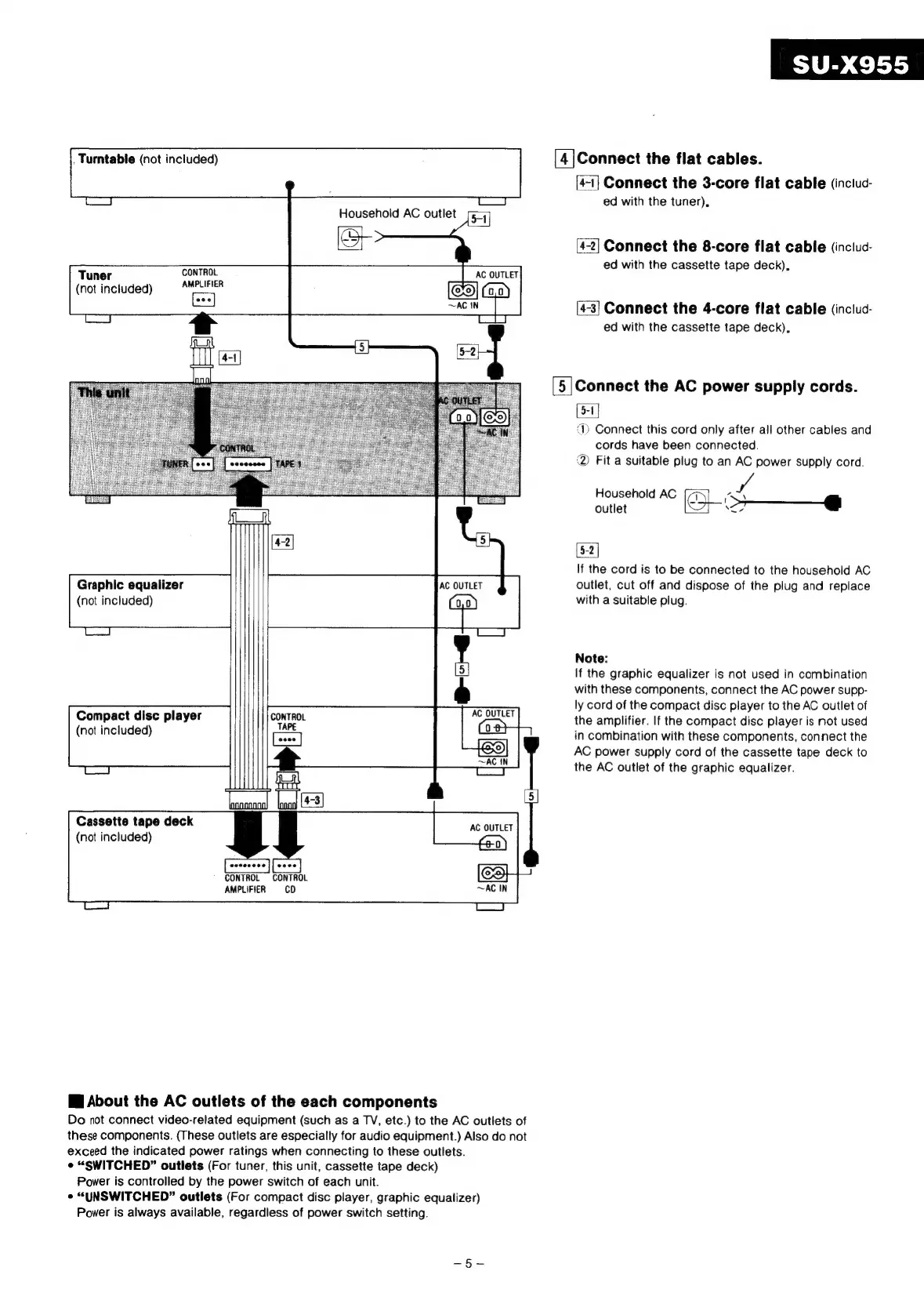

Turntable (not included) [4|Connect the flat cables.
[4-1] Connect the 3-core flat cable (inciud-
ed with the tuner),
Household AC outlet =
Sr [4-2] Connect the 8-core flat cable (includ-
T CONTROL eae ed with the cassette tape deck),
uner
(not included) “on XO) (o.0
~AC IN [4-3] Connect the 4-core flat cable (includ-
ed with the cassette tape deck),
re ° (5-2)
[5 |Connect the AC power supply cords.
5-1
4) Connect this cord only after all other cables and
cords have been connected.
@ Fit a suitable plug to an AC power supply cord.
Household AC at @
outlet \<
5-2
lf the cord is to be connected to the household AC
Graphic equalizer AC OUTLET outlet, cut off and dispose of the plug and replace
(not included) 0,0 with a suitable plug.
with these components, connect the AC power supp-
ly cord of the compact disc player to the AC outlet of
nee mn ae the amplifier. If the compact disc player is not used
eoae in combination with these components, connect the
AC power supply cord of the cassette tape deck to
the AC outlet of the graphic equalizer.
y Note:
6 If the graphic equalizer is not used in combination
Compact disc player
(not included)
Cassette tape deck
(not included)
CONTROL
AMPLIFIER
CONTROL
co
Hi About the AC outlets of the each components
Do not connect video-related equipment (such as a TV, etc.) to the AC outlets of
these components. (These outlets are especially for audio equipment.) Also do not
exceed the indicated power ratings when connecting to these outlets.
¢ “SWITCHED” outlets (For tuner, this unit, cassette tape deck)
Power is controlled by the power switch of each unit.
* “UNSWITCHED” outlets (For compact disc player, graphic equalizer)
Power is always available, regardless of power switch setting.
