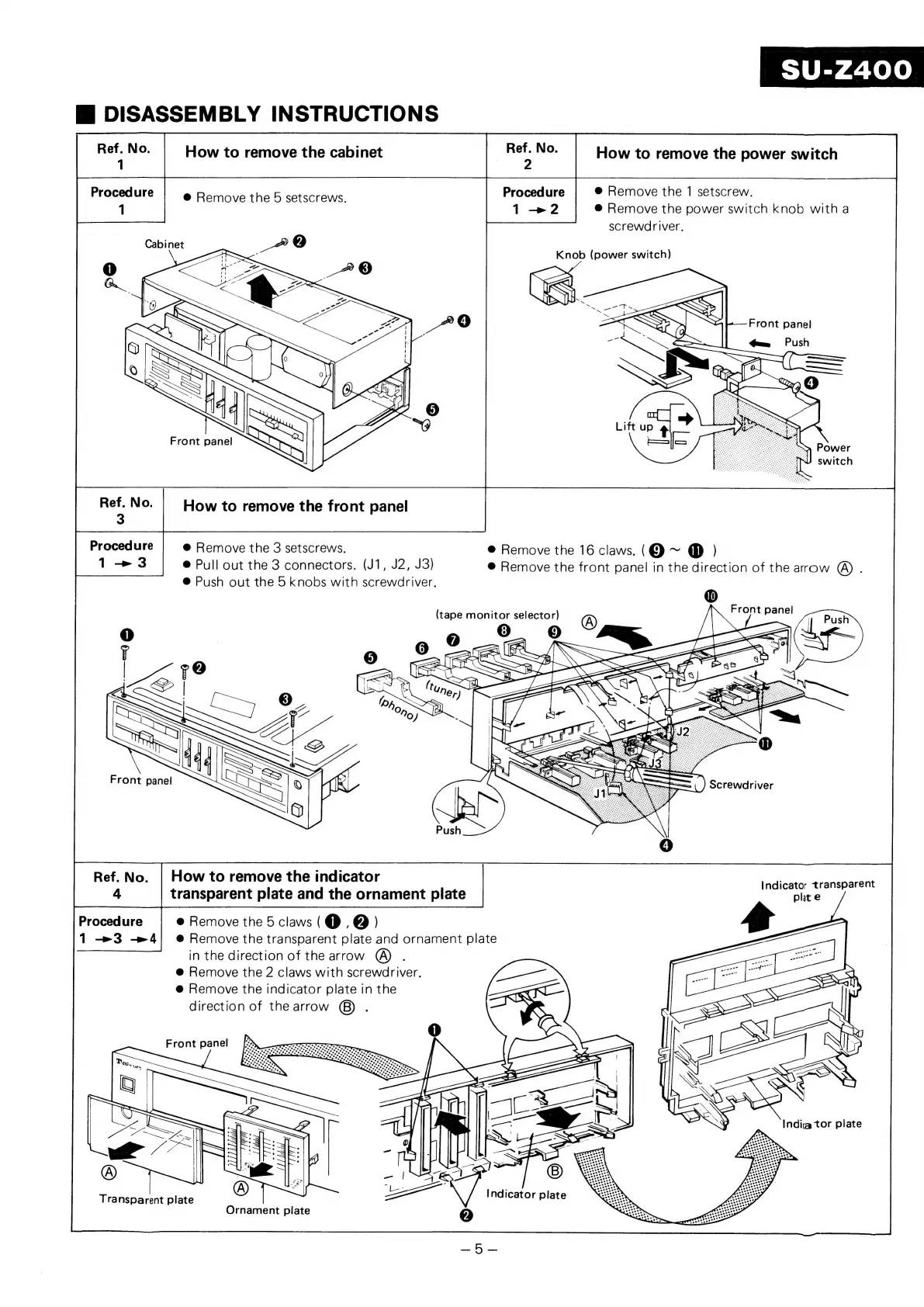

SU-Z400
How
to
remove
the
power
switch
Mi
DISASSEMBLY
INSTRUCTIONS
se
No.
How
to
remove
the
cabinet
|
1
®
Remove
the
1
setscrew.
Remove
the
power
switch
knob
with
a
screwdriver.
Remove
the
5
setscrews.
1-2
Knob
(power
switch)
~
ae
ao
tT.
cas
Push
=
rN
SIS
Front
panel
WU
switch
es
No.
How
to
remove
the
front
panel
Procedure
@
Remove
the
3
setscrews.
@
Remove
the
16
claws.
(@
~
@
1+
3
@
Pull
out
the
3
connectors.
(J1,
J2,
J3)
@
Remove
the
front
panel
in
the
direction
of
the
arrow
@)
.
@
Push
out
the
5
knobs
with
screwdriver.
(tape
monitor
selector)
Ref.
No.
|
How
to
remove
the
indicator
iaglicston
Aranenarent
4
transparent
plate
and
the
ornament
plate
plit
e
Procedure
@
Remove
the
5
claws
(@,@)
y
1-3
-»4|
©
Remove
the
transparent
plate
and
ornament
plate
in
the
direction
of
the
arrow
@)
.
@
Remove
the
2
claws
with
screwdriver.
@
Remove
the
indicator
plate
in
the
direction
of
the
arrow
Front
panel
Indi
tor
plate
Transparent
plate
Ornament
plate
