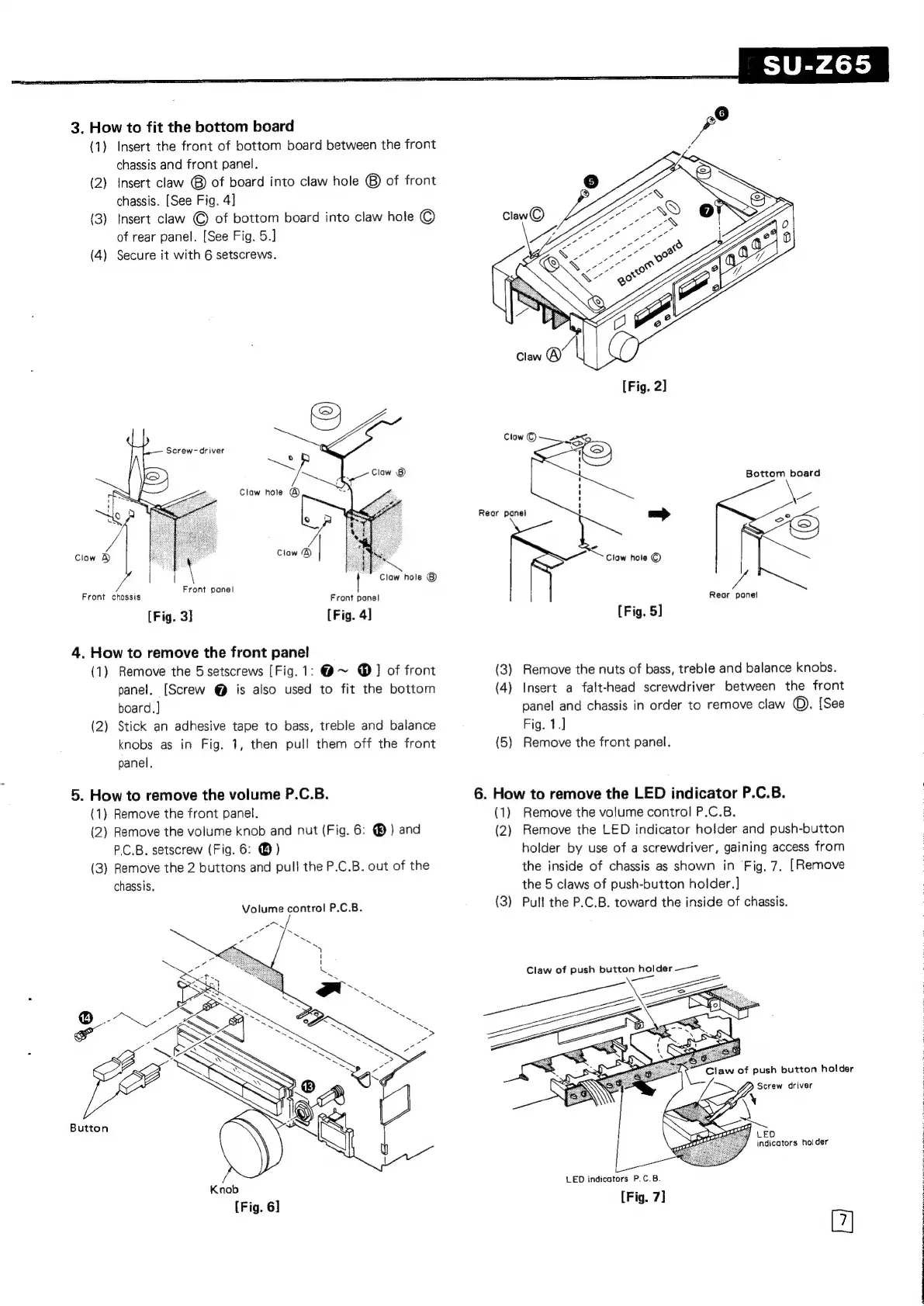

3.
How
to
fit
the
bottom
board
(1)
Insert
the
front
of
bottom
board
between
the
front
chassis
and
front
panel.
(2)
Insert
claw
of
board
into
claw
hole
©
of
front
chassis.
[See
Fig.
4]
(3)
Insert
claw
©
of
bottom
board
into
claw
hole
©
of
rear
panel.
[See
Fig.
5.]
(4)
Secure
it
with
6
setscrews.
Screw-
driver
Claw
®)
|
Claw
hole
®
Front
panel
|
Front
chassis
Front
panel
[Fig.
3]
[Fig.
4]
4.
How
to
remove
the
front
panel
(1)
Remove
the
5
setscrews
[Fig.
1:
@~
@]
of
front
panel.
[Screw
@
is
also
used
to
fit
the
bottom
board.]
(2)
Stick
an
adhesive
tape
to
bass,
treble
and
balance
knobs
as
in
Fig.
1,
then
pull
them
off
the
front
panel.
5.
How
to
remove
the
volume
P.C.B.
(1)
Remove
the
front
panel.
(2)
Remove
the
volume
knob
and
nut
(Fig.
6:
@)
and
P.C.B.
setscrew
(Fig.
6:
@)
(3)
Remove
the
2
buttons
and
pull
the
P.C.B.
out
of
the
chassis.
Volume
control
P.C.B.
Button
Bottom
board
Rear
panel
Clow
hole
©
Rear
panel
[Fig.
5]
(3)
Remove
the
nuts
of
bass,
treble
and
balance
knobs.
(4)
Insert
a
falt-head
screwdriver
between
the
front
panel
and
chassis
in
order
to
remove
claw
©.
[See
Fig.
1.]
(5)
Remove
the
front
panel.
6.
How
to
remove
the
LED
indicator
P.C.B.
(1)
Remove
the
volume
control
P.C.B.
(2)
Remove
the
LED
indicator
holder
and
push-button
holder
by
use
of
a
screwdriver,
gaining
access
from
the
inside
of
chassis
as
shown
in
Fig.
7.
[Remove
the
5
claws
of
push-button
holder.]
(3)
Pull
the
P.C.B.
toward
the
inside
of
chassis.
Claw
of
push
button
holder
——
a
LED
indicators
P.C.B.
[Fig.
7]
