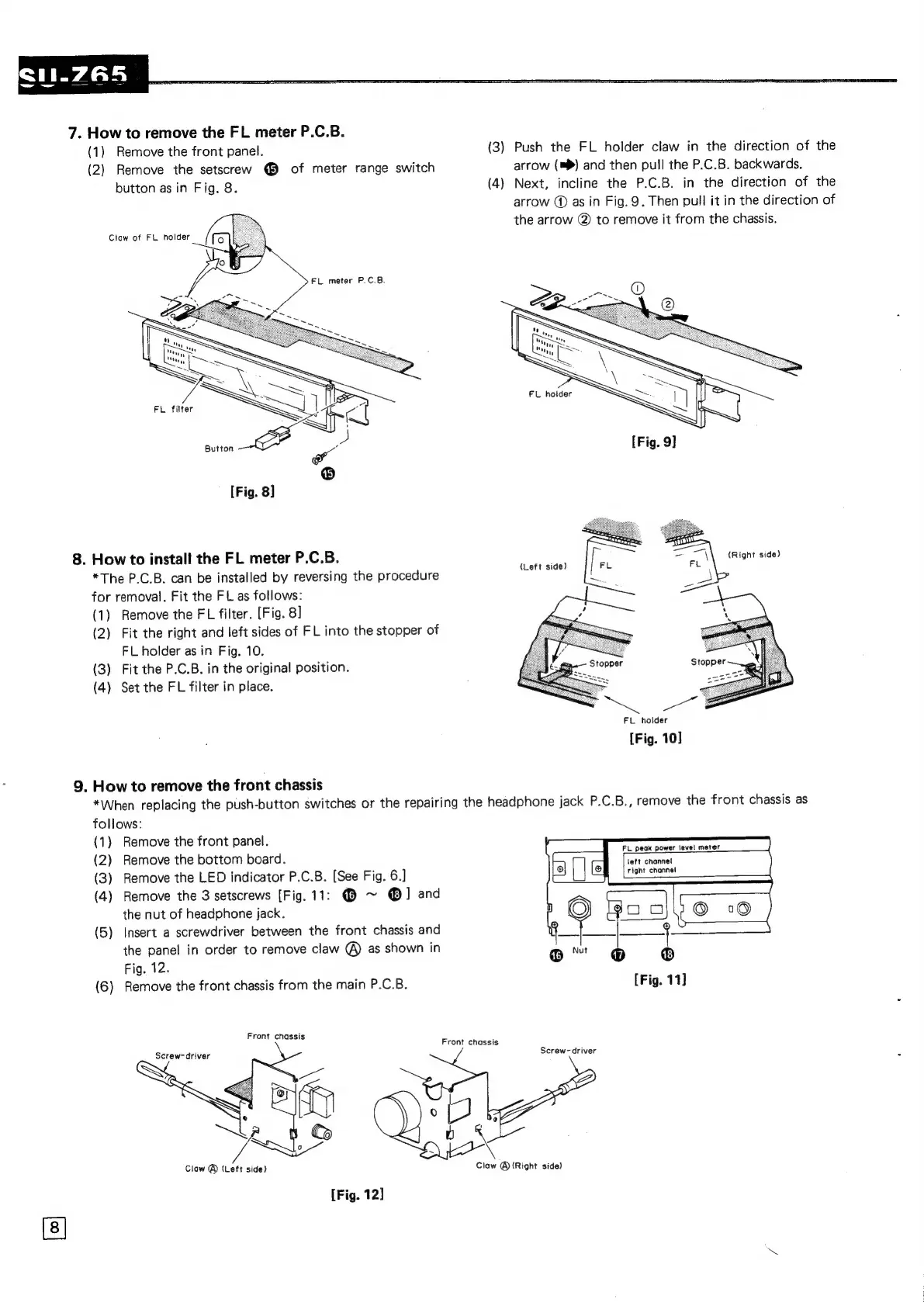

7.
How
to
remove
the
FL
meter
P.C.B.
(1)
Remove
the
front
panel.
(2)
Remove
the
setscrew
@
of
meter
range
switch
button
as
in
Fig.
8.
Claw
of
FL
holder
FL
meter
P.C.B.
Button
.
[Fig.
8]
8.
How
to
install
the
FL
meter
P.C.B.
*The
P.C.B.
can
be
installed
by
reversing
the
procedure
for
removal.
Fit
the
FL
as
follows:
(1)
Remove
the
FL
filter.
[Fig.
8]
(2)
Fit
the
right
and
left
sides
of
FL
into
the
stopper
of
FL
holder
as
in
Fig.
10.
(3)
Fit
the
P.C.B.
in
the
original
position.
(4)
Set
the
FL
filter
in
place.
9.
How
to
remove
the
front
chassis
(3)
Push
the
FL
holder
claw
in
the
direction
of
the
arrow
(=)
and
then
pull
the
P.C.B.
backwards.
(4)
Next,
incline
the
P.C.B.
in
the
direction
of
the
arrow
@
as
in
Fig.
9.
Then
pull
it
in
the
direction
of
the
arrow
@
to
remove
it
from
the
chassis.
FL
holder
(Right
side)
(Left
side)
FL
holder
[Fig.
10]
*When
replacing
the
push-button
switches
or
the
repairing
the
headphone
jack
P.C.B.,
remove
the
front
chassis
as
follows:
(1)
Remove
the
front
panel.
(2)
Remove
the
bottom
board.
(3)
Remove
the
LED
indicator
P.C.B.
[See
Fig.
6.]
(4)
Remove
the
3
setscrews
[Fig.11:
@
~
@]
and
the
nut
of
headphone
jack.
(5)
Insert
a
screwdriver
between
the
front
chassis
and
the
panel
in
order
to
remove
claw
®
as
shown
in
Fig.
12.
(6)
Remove
the
front
chassis
from
the
main
P.C.B.
Front
chassis
FL
peok
power
level
meter
left
channet
right
chonnel
Front
chassis
Screw-driver
©)
Claw
®
(Left
side)
[Fig.
12]
Screw-driver
Claw
©@
(Right
side)
