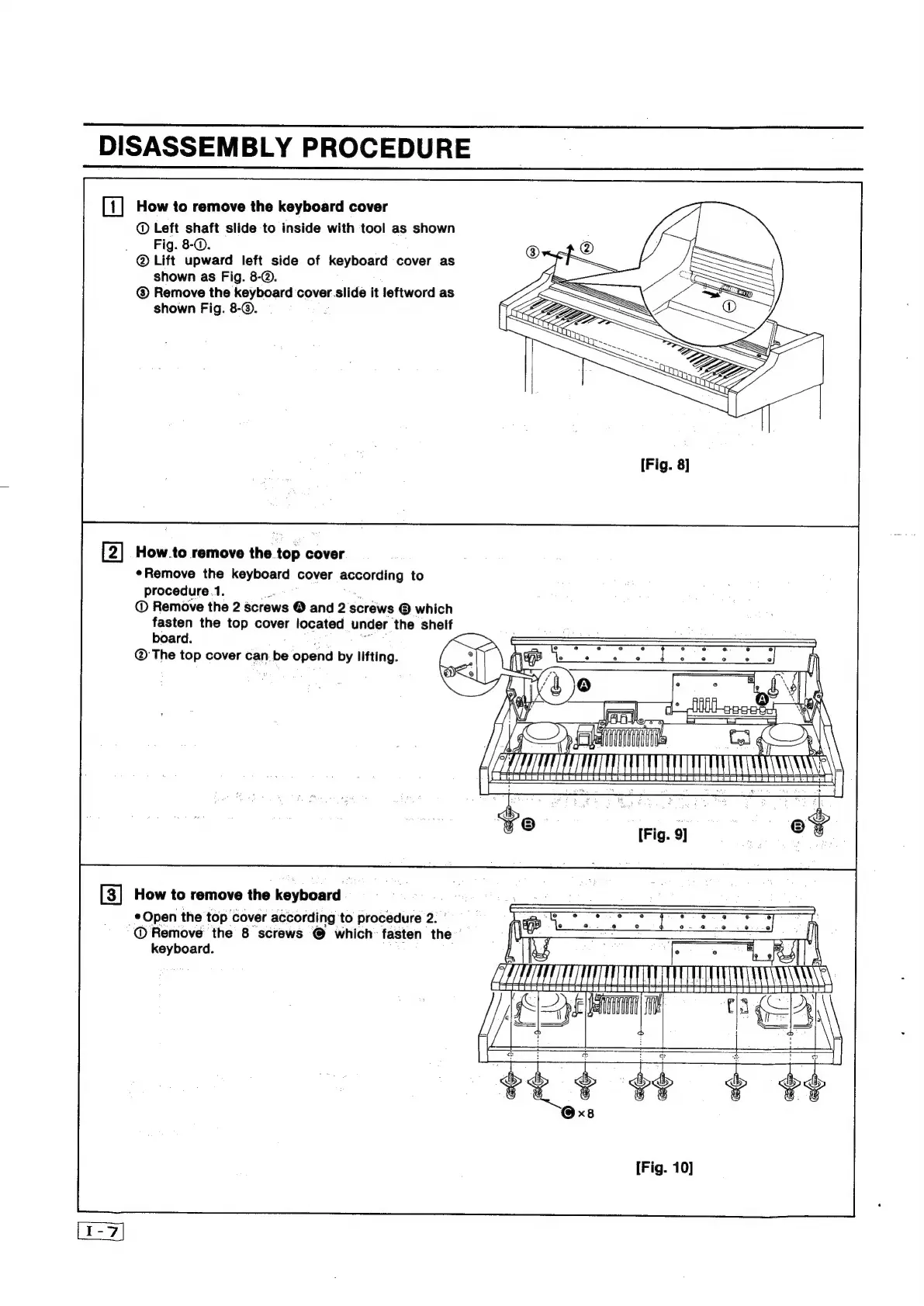

Technics SX-PR100 Service Manual

DISASSEMBLY PROCEDURE
[1] How to remove the keyboard cover
© Left shaft slide to inside with tool as shown
; Fig. 8-©.
@® Lift upward left side of keyboard cover as
shown as Fig. 8-@.
® Remove the keyboard cover slide it leftword as
shown Fig. 8-@. ‘
[2] How.to remove the top cover
*Remove the keyboard cover according to
procedure.1. :
@ Remove the 2 Screws ® and 2 screws © which
fasten the top cover located under ‘the shelf
board.
@ The top cover can be opend by lifting.
r=
mM HN Ae
[3] How to remove the keyboard
-©Open the top cover according to procedure 2.
‘@ Remove the 8 screws @ which: fasten the
keyboard.
mmm NS
[Fig. 10]
1-7
