30ARD
.;
5
6
;
7
,
8
9
;
10
;
11
12
13
:
14

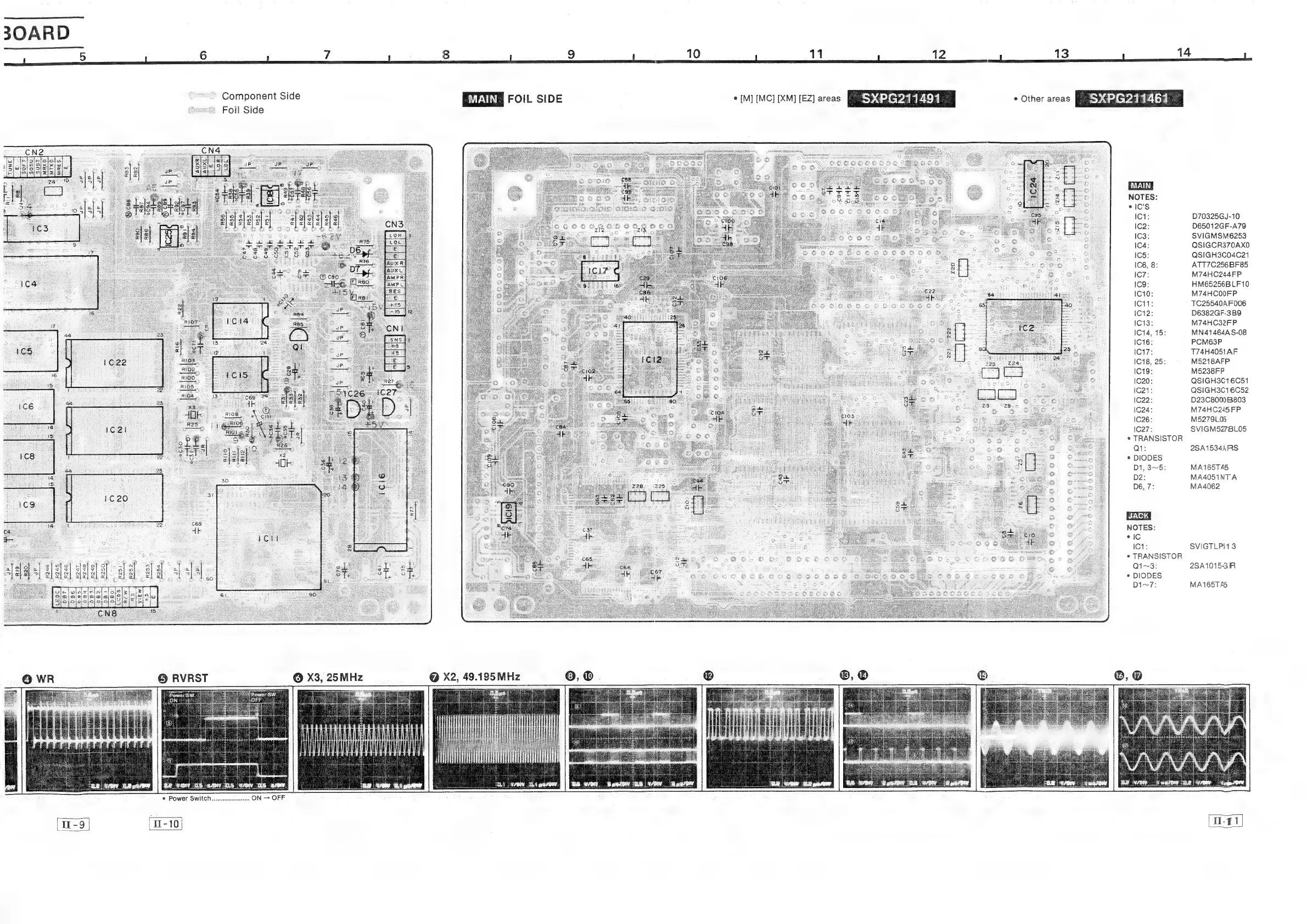

Component Side
Foil Side
e Other areas
MAIN |
NOTES:
eIC’S
IC1: D70325GJ-10
IC2: D65012GF-A79
IC3: SVIGMSM6253
C4: QSIGCR370AX0
C5: QSIGH3C04C21
1C6, 8: ATT7C256BF85
1C7: M74HC244FP
IC9: HM65256BLF10
1C10: M74HCO0OFP
IC11: TC255404 F006
IC12: D6382GF-3B9
IC13: M74HC32FP
1014, 15: MN41464AS-08
IC16: PCM63P
IC17: T74H4051 AF
1018, 25: M5218AFP
IC19: M5238FP
1C20: QSIGH3C16C51
1C2t: QSIGH3C16C52
1C22: D23C800)B803
1024: M74HC245 FP
1C26: M5279L05
IC27: SVIGM5278L05
e TRANSISTOR
Qt: 2SA15344RS
e DIODES
D1, 3~5: MA165TA5
D2: MA4051NTA
D6, 7: MA4062
NOTES:
e IC
C1: SVIGTLPi13
© TRANSISTOR
Qi~3: 2SA1015-GR
e DIODES
Di~7: MA165TA5
@ X3, 25MHz
