Technics SX-PR270 M User Manual

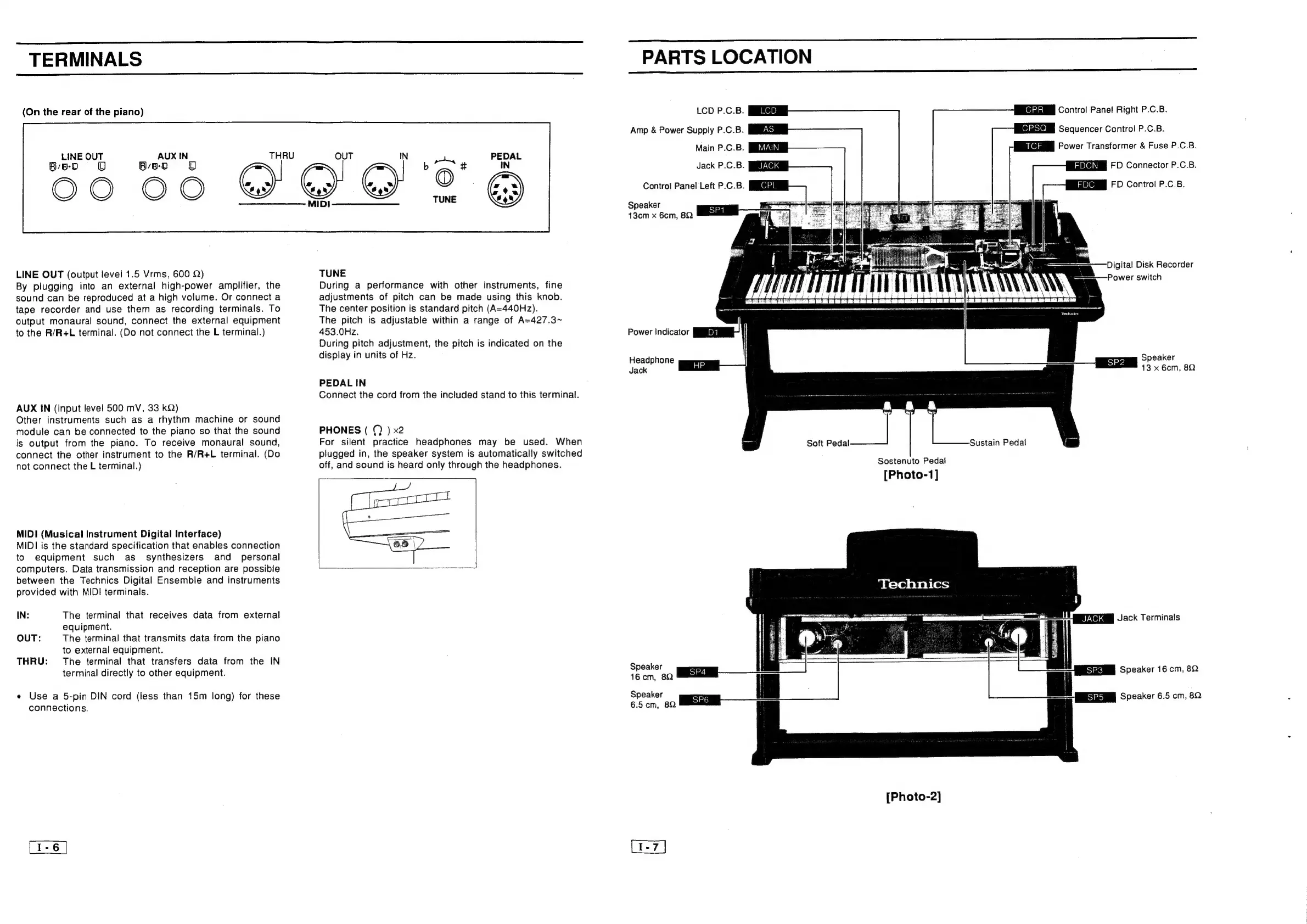

TERMINALS
(On the rear of the piano)
LINE OUT AUX IN THRU
OG
@
“e
B/B-0 OU B/B-0
OO OO
LINE OUT (output level 1.5 Vrms, 600 Q)
By plugging into an external high-power amplifier, the
sound can be reproduced at a high volume. Or connect a
tape recorder and use them as recording terminals. To
output monaural sound, connect the external equipment
to the R/R+L terminal. (Do not connect the L terminal.)
AUX IN (input level 500 mV, 33 kQ)
Other instruments such as a rhythm machine or sound
module can be connected to the piano so that the sound
is output from the piano. To receive monaural sound,
connect the other instrument to the R/R+L terminal. (Do
not connect the L terminal.)
MIDI (Musical Instrument Digital Interface)
MIDI is the standard specification that enables connection
to equipment such as_ synthesizers and_ personal
computers. Data transmission and reception are possible
between the Technics Digital Ensemble and instruments
provided with MIDI terminals.
IN: The terminal that receives data from external
equipment.
OUT: The terminal that transmits data from the piano
to external equipment.
THRU: The terminal that transfers data from the IN
terminal directly to other equipment.
e Use a 5-pin DIN cord (less than 15m long) for these
connections.
PEDAL
TUNE
During a performance with other instruments, fine
adjustments of pitch can be made using this knob.
The center position is standard pitch (A=440H7z).
The pitch is adjustable within a range of A=427.3~
453.0Hz.
During pitch adjustment, the pitch is indicated on the
display in units of Hz.
PEDAL IN
Connect the cord from the included stand to this terminal.
PHONES ( (} ) x2
For silent practice headphones may be used. When
plugged in, the speaker system is automatically switched
off, and sound is heard only through the headphones.
PARTS LOCATION
LCD
P.C.B.
Control
Panel
Right
P.C.B.
Amp & Power Supply P.C.B. Sequencer Control P.C.B.
Main P.C.B.
Jack P.C.B.
Power Transformer & Fuse P.C.B.
FD Connector P.C.B.
FD Control P.C.B.
Control! Panel Left P.C.B.
Speaker
13cm x 6em, 8Q
Digital Disk Recorder
Power switch
tt ppp
mcr moe reer
ne eensmmmnietmmmimmamenmiaiaan
Power Indicator ——
Headphone
Jack
Speaker
13 x 6cm, 8Q
Soft nl | Pedal
Sostenuto Pedal
[Photo-1]
OU srelabeblon
Jack Terminals
Speaker
i
16cm,
8Q
Speaker
16
cm,
gai
Speaker
6.5
cm,
8Q
6.5cm,
8Q
[Photo-2]
I-7
