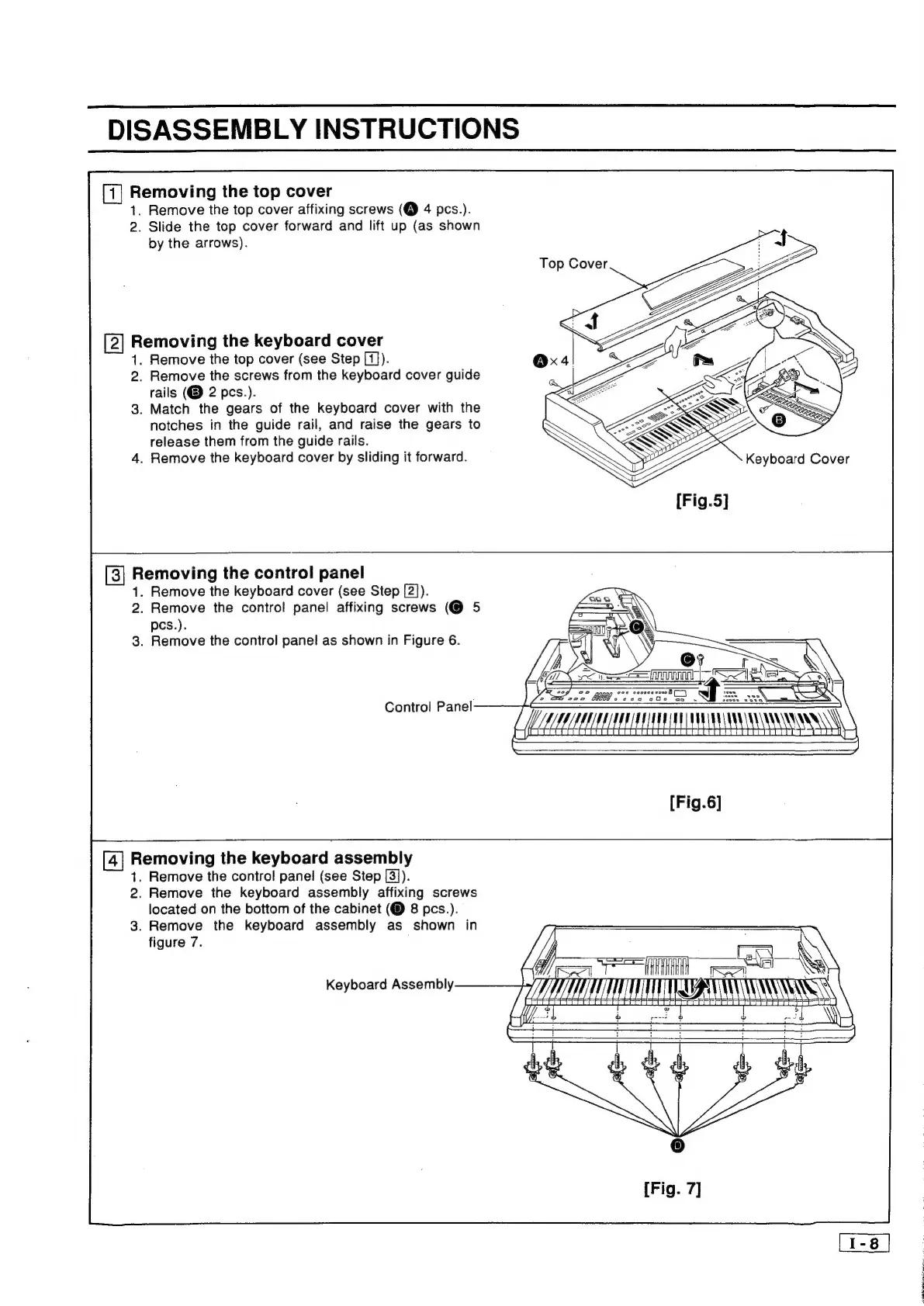

DISASSEMBLY INSTRUCTIONS
[1] Removing the top cover
1. Remove the top cover affixing screws (@ 4 pcs.).
2. Slide the top cover forward and lift up (as shown
by the arrows).
ee the keyboard cover
. Remove the top cover (see Step [1]).
. Remove the screws from the keyboard cover guide
rails (© 2 pcs.).
. Match the gears of the keyboard cover with the
notches in the guide rail, and raise the gears to
release them from the guide rails.
. Remove the keyboard cover by sliding it forward.
3| Removing the control panel
1. Remove the keyboard cover (see Step [2]).
2. Remove the contro! panel affixing screws (@ 5
pcs.).
3. Remove the control panel as shown in Figure 6.
Control Panel
[4] eee the keyboard assembly
. Remove the control panel (see Step [3]).
. Remove the keyboard assembly affixing screws
located on the bottom of the cabinet (© 8 pcs.).
3. Remove the keyboard assembly as shown in
figure 7.
Keyboard Assembly
pare eer eres
