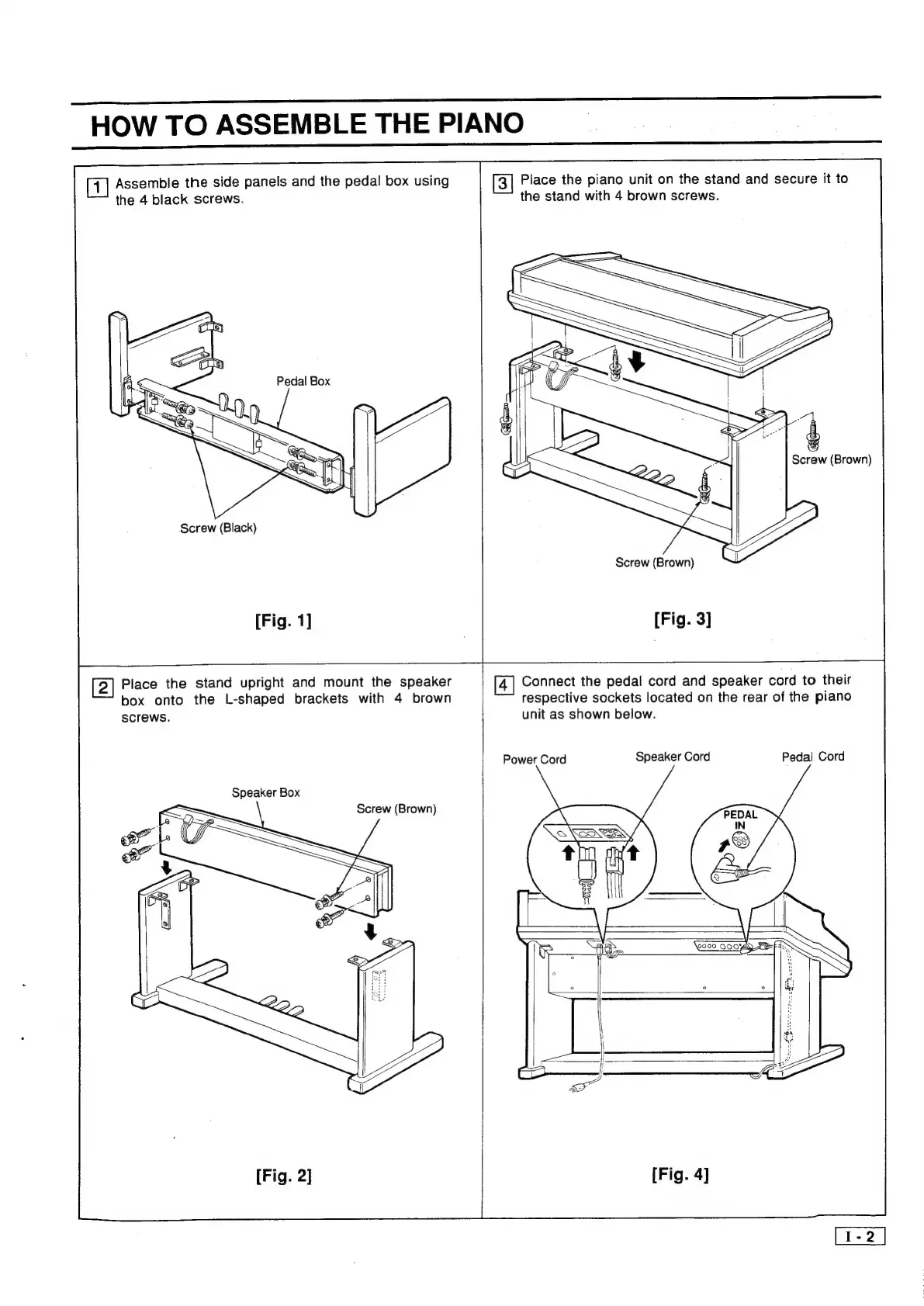

HOW
TO
ASSEMBLE
THE
PIANO
Assemble
the
side
panels
and
the
pedal
box
using
the
4
black
screws.
Screw (Black)
[2]
Place
the
stand
upright
and
mount
the
speaker
box
onto
the
L-shaped
brackets
with
4
brown
screws.
Speaker Box
Screw (Brown)
Place the piano unit on the stand and secure it to
the stand with 4 brown screws.
Screw (Brown)
Screw (Brown)
[Fig. 3]
Connect the pedal cord and speaker cord to their
respective sockets located on the rear of the piano
unit as shown below.
Power
Cord
Speaker
Cord
Pedal
Cord
