6.5. Disassembly of the pedal assembly
1. Remove the pedal assembly from the pedal box.

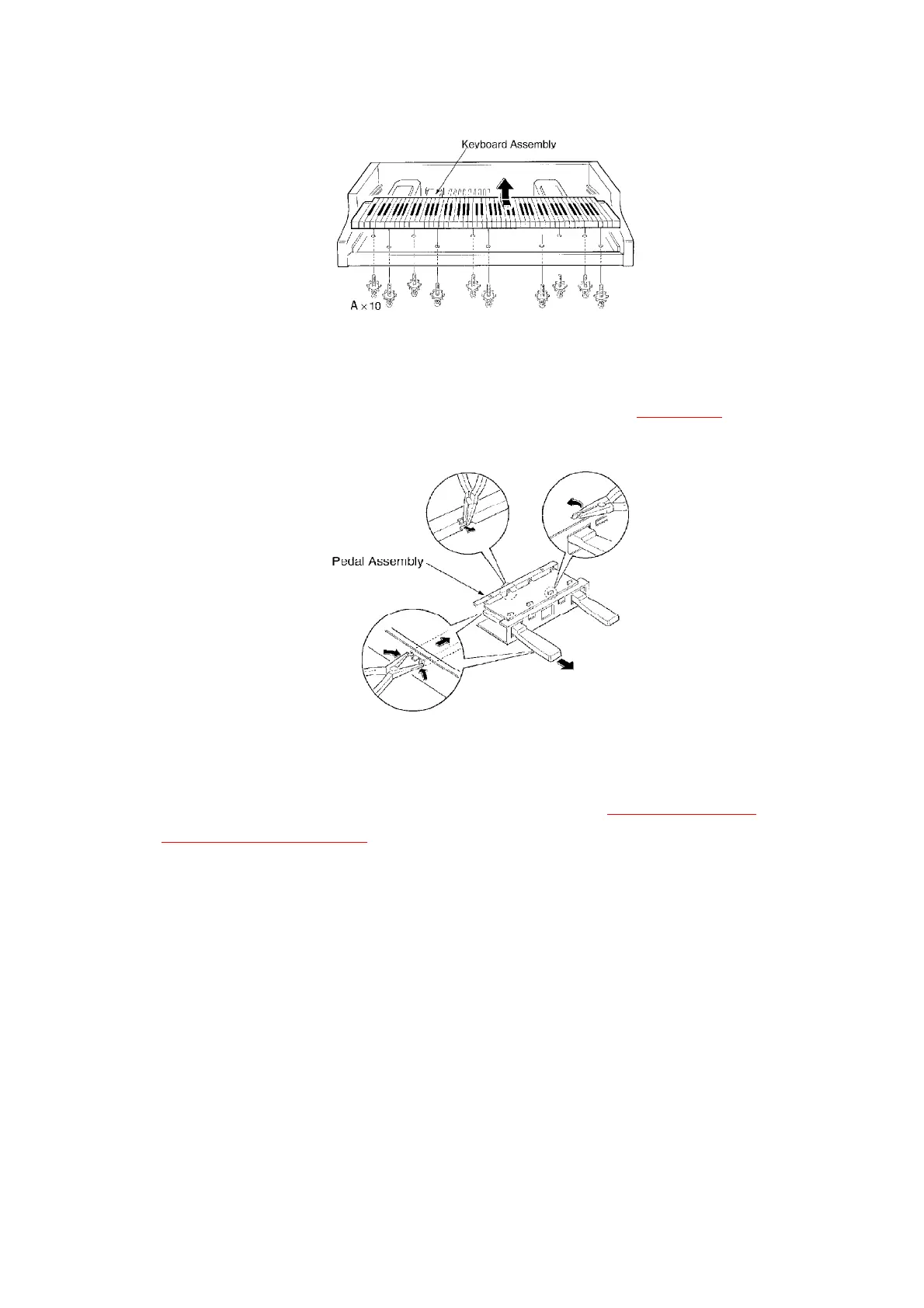

2. Disassemble the pedal assembly as shown in Figure-8 .
Figure-8
6.6. Key(s)
Disassembly
1. Remove the keyboard assembly (see step “Removing the
keyboard assembly ”).
2. While inserting a thin plate to press down a claw, push the rear of
the key forward to disengage the key claw from the chassis.
3. Lift the key up to remove it.
Note:
- The key claw is easily broken. Do not apply undue force. Should a
key claw break, it can still be used.
- If a black key is to be replaced, it is necessary to remove both
adjacent white keys.
Figure-9
