Technics SX-PX107 Service Manual

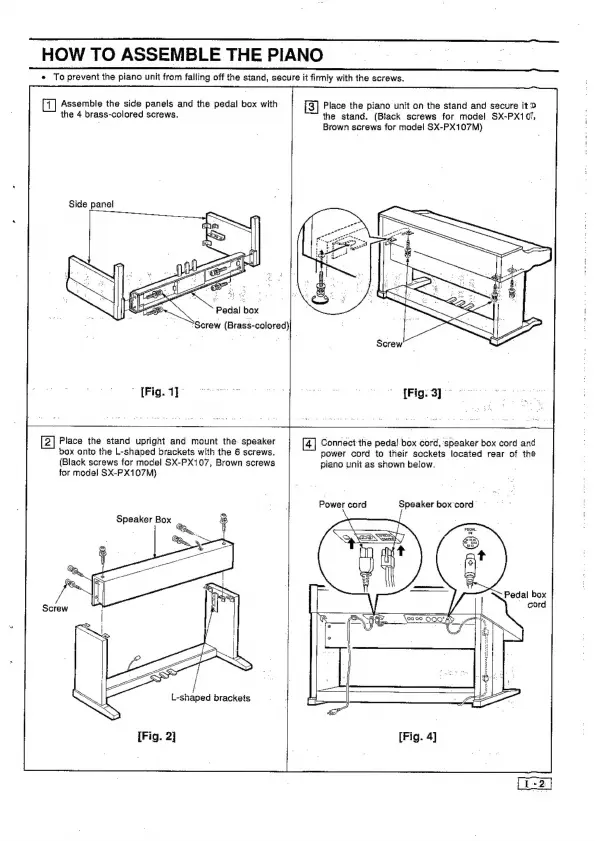

HOW TO ASSEMBLE THE PIANO
* To prevent the piano unit from falling off the stand, secure it firmly with the screws.
Assemble the side panels and the pedal box with
the 4 brass-colored screws.
Side panel
Pedal box
‘Screw (Brass-colored)
“Fig. 1]
Place the stand upright and mount the. speaker
box anto the L-shaped brackets with the 6 screws.
(Black screws for model SX-PX107, Brown screws
for model SX-PX107M)}
L-shaped brackeis
[Fig. 2]
[3] Place the piano unit on the stand and secure it ‘0
the stand. (Black screws for model SX-PX10!,
Brown screws for madel SX-PX107M)
Connect the pedal. box cord, speaker box cord and
power cord to their sockets located rear of the
piano unit as shown below.
Power cord Speaker box'cord -
Pedal box
cord
[Fig. 4]
