Technics SX-PX107 Service Manual

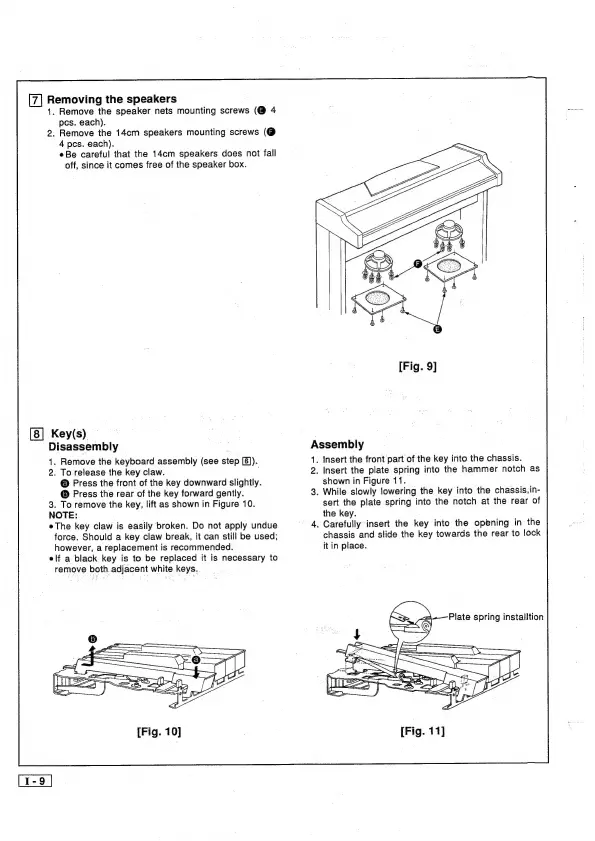

Removing the speakers
1. Remove the speaker nets mounting screws (@ 4
pes. each).
2. Remove the 14cm speakers mounting screws (@
4 pcs. each).
eBe careful that the 14cm speakers does not fall
off, since it comes free of the speaker box.
Key(s)
Disassembly
1. Remove the keyboard assembly (see step [6]).
2. To release the key claw. ,
© Press the front of the key downward slightly.
@ Press the rear of the key forward gently.
3. To remove the key, lift as shown in Figure 10.
NOTE:
eThe key claw is easily broken. Do not apply undue
force. Should a key claw break, it can still be used;
however, a replacement is recommended.
elf a black key is to be replaced it is necessary to
remove both. adjacent white keys.
[Fig. 10]
Assembly
1. Insert the front part of the key into the chassis.
2. Insert the plate spring into the hammer notch as
shown in Figure 11.
3. While slowly lowering the key into the chassis,in-
sert the plate spring into the notch at the rear of
the key.
4. Carefully insert the key into the opening in the
chassis and slide the key towards the rear to lock
it in place.
Karate spring installtion
iQ)
[Fig. 11]
