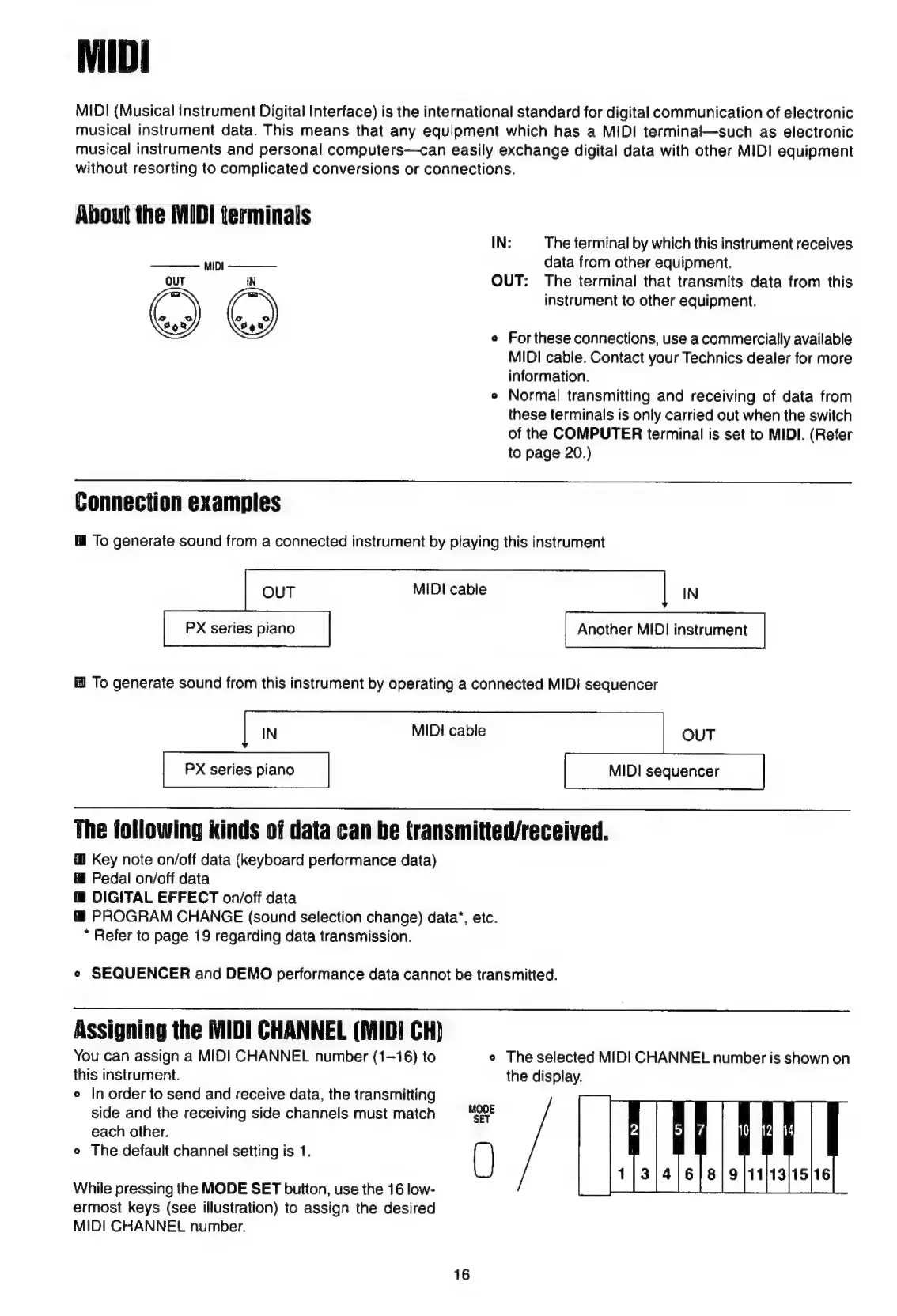

Technics SX-PX222/M

MIDI (Musical Instrument Digital Interface) is the international standard for digital communication of electronic
musical instrument data. This means that any equipment which has a MIDI terminal—such as electronic
musical instruments and personal computers—can easily exchange digital data with other MIDI equipment
without resorting to complicated conversions or connections.
About the MIDI terminals
IN: The terminal by which this instrument receives
data from other equipment.
QUT IN OUT: The terminal that transmits data from this
т instrument to other equipment.
e For these connections, use a commercially available
MIDI cable. Contact your Technics dealer for more
information.
e Normal transmitting and receiving of data from
these terminals is only carried out when the switch
of the COMPUTER terminal is set to MIDI. (Refer
to page 20.)
Connection examples
To generate sound from a connected instrument by playing this instrument
IN
Another MIDI instrument
To generate sound from this instrument by operating a connected MIDI sequencer
MIDI cable
PX series piano
IN MIDI cable
OUT
The following kinds of data can be transmitted/received.
Key note on/off data (keyboard performance data)
ll Pedal on/off data
IB DIGITAL EFFECT on/off data
Ш PROGRAM CHANGE (sound selection change) data’, etc.
* Refer to page 19 regarding data transmission.
° SEQUENCER and DEMO performance data cannot be transmitted.
Assigning
the
MIDI
CHANNEL
(MIDI
CH)
You can assign a MIDI CHANNEL number (1—16) to e The selected MIDI CHANNEL number is shown on
this instrument. the display.
e In order to send and receive data, the transmitting
side and the receiving side channels must match M9DE | |
each other. d НИ u LE
e The default channel setting is 1. [) |
While pressing the MODE SET button, use the 16 low-
ermost keys (see illustration) to assign the desired
MIDI CHANNEL number.
