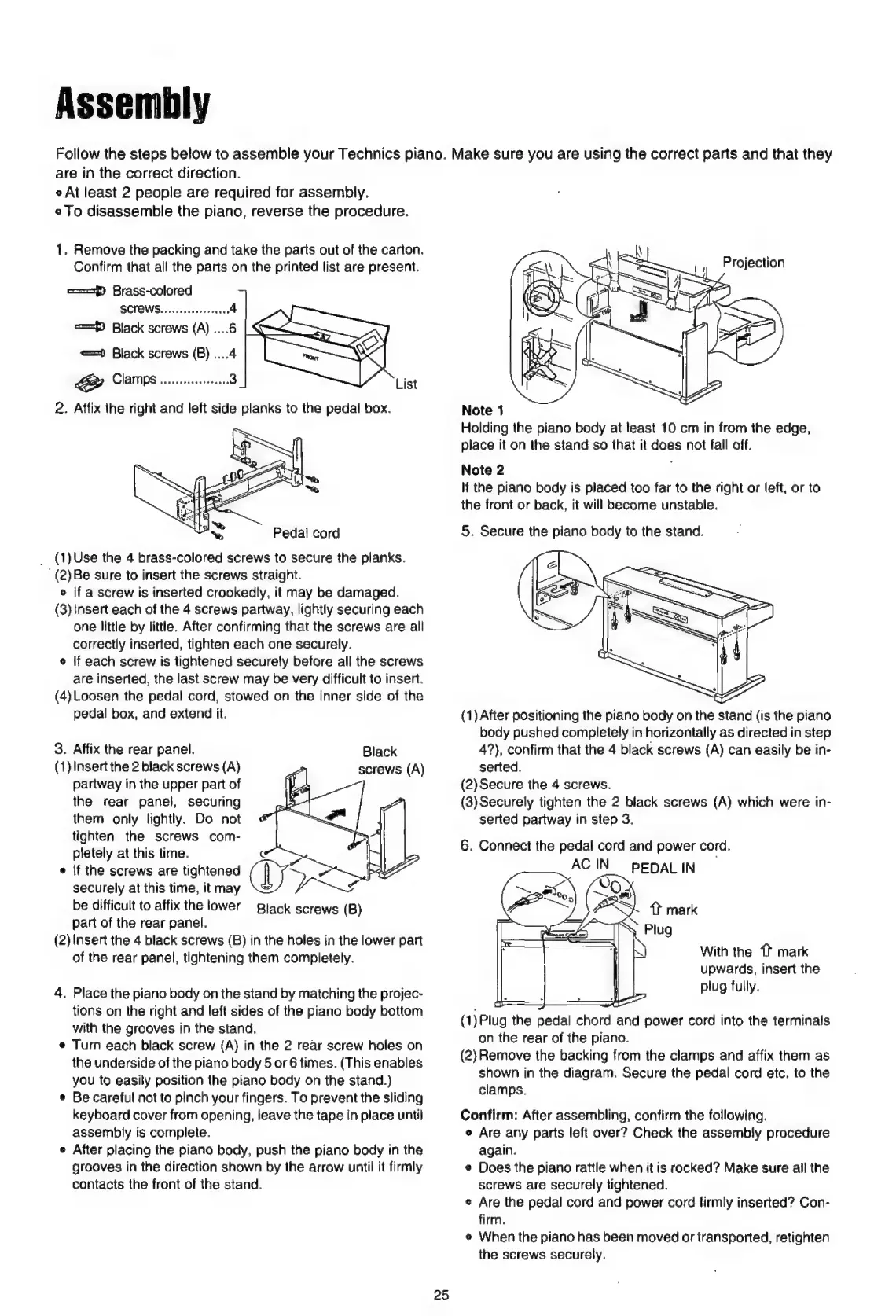

Assembly
Follow the steps below to assemble your Technics piano. Make sure you are using the correct parts and that they
are in the correct direction.
o At least 2 people are required for assembly.
e To disassemble the piano, reverse the procedure.
1, Remove the packing and take the parts out of the carton.
Confirm that all the parts on the printed list are present.
rz Brass-colored
ЅСГӨМУЅ.................. 4
«D Black screws (A) ....6
a Black screws (B) ....4
List
Pedal cord
. (1)Use the 4 brass-colored screws to secure the planks.
- (2)Be sure to insert the screws straight.
e |f a screw is inserted crookedly, it may be damaged.
(3)Insert each of the 4 screws partway, lightly securing each
one little by little. After confirming that the screws are all
correctly inserted, tighten each one securely.
e |f each screw is tightened securely before all the screws
are inserted, the last screw may be very difficult to insert.
(4)Loosen the pedal cord, stowed on the inner side of the
pedal box, and extend it.
3. Affix the rear panel.
(1)Insert the 2 black screws (A)
partway in the upper part of
the rear panel, securing
them only lightly. Do not
tighten the screws com-
pletely at this time.
e |f the screws аге tightened
securely at this time, it may
be difficult to affix the lower
part of the rear panel.
(2)Insert the 4 black screws (B) in the holes in the lower part
of the rear panel, tightening them completely.
Black
screws (A)
Black screws (B)
4. Place the piano body on the stand by matching the projec-
tions on the right and left sides of the piano body bottom
with the grooves in the stand.
e Turn each black screw (A) in the 2 rear screw holes on
the underside of the piano body 5 or 6 times. (This enables
you to easily position the piano body on the stand.)
e Be careful not to pinch your fingers. To prevent the sliding
keyboard cover from opening, leave the tape in place until
assembly is complete.
e After placing the piano body, push the piano body in the
grooves in the direction shown by the arrow until it firmly
contacts the front of the stand.
Note 1
Holding the piano body at least 10 cm in from the edge,
place it on the stand so that it does not fall off.
Note 2
If the piano body is placed too far to the right or left, or to
the front or back, it will become unstable.
5. Secure the piano body to the stand.
а
(1) After positioning the piano body оп the stand (is the piano
body pushed completely in horizontally as directed in step
4?), confirm that the 4 black screws (A) can easily be in-
serted.
(2)Secure the 4 screws.
(3)Securely tighten the 2 black screws (A) which were in-
serted partway in step 3.
6. Connect the pedal cord and power cord.
AC IN l
PEDAL IN
T mark
Plug
With the 1 mark
upwards, insert the
plug fully.
(1)Plug the pedal chord and power cord into the terminals
on the rear of the piano.
(2) Remove the backing from the clamps and affix them as
shown in the diagram. Secure the pedal cord etc. to the
clamps.
Confirm: After assembling, confirm the following.
e Are any parts left over? Check the assembly procedure
again.
o Does the piano rattle when it is rocked? Make sure all the
screws are securely tightened.
o Are the pedal cord and power cord firmly inserted? Con-
firm.
e When the piano has been moved or transported, retighten
the screws securely.
