Technifor UC500 User Manual

ACommunication
C
Ref. DCD01/3067 - UC500_en_D
20/27

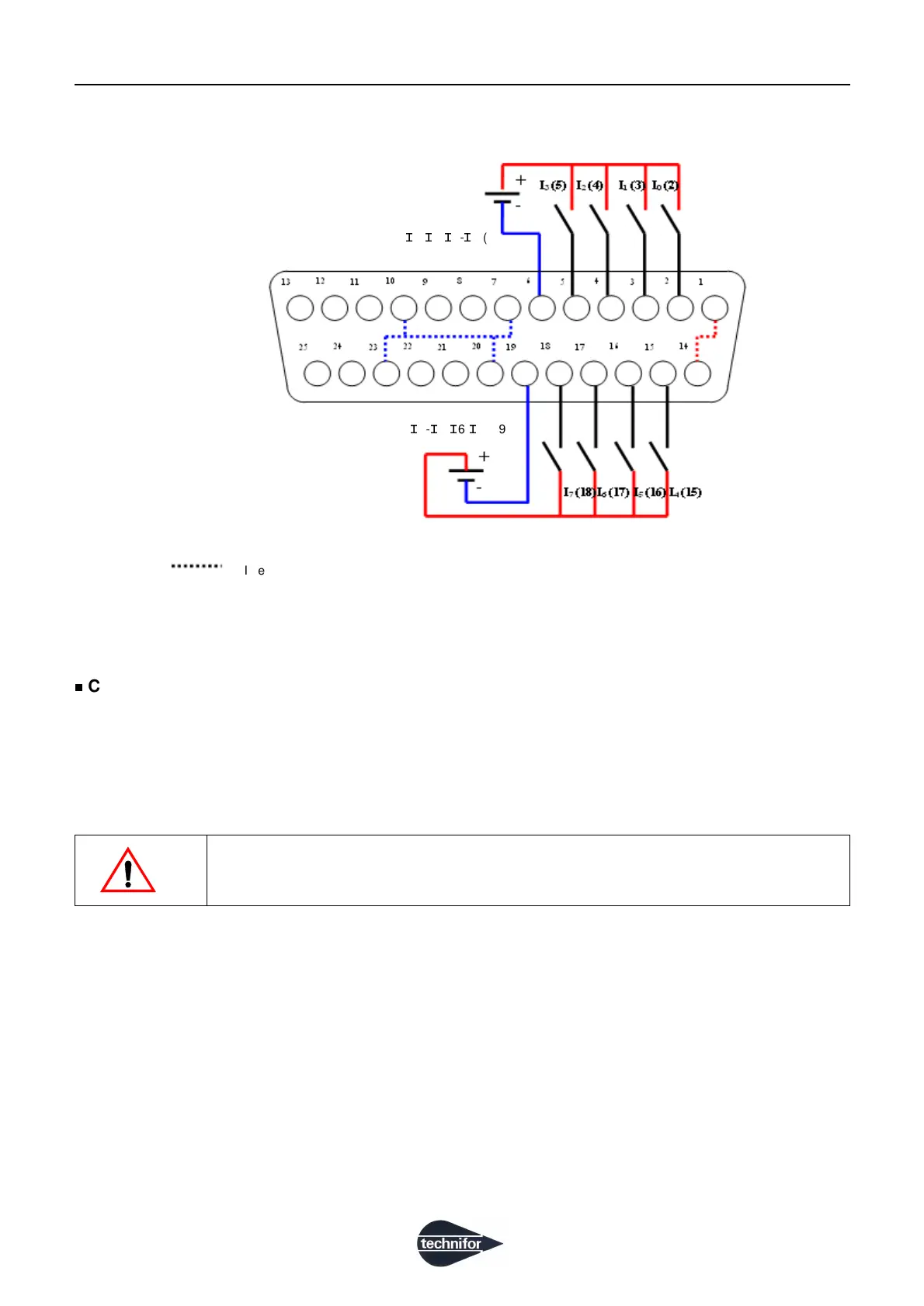

• wiring of 8 inputs with power supplied by the user
 Characteristics of the Outputs
4 Outputs of the type NPN with open collector are available.
The maximum external power supply for the Outputs is 24 volts (continuous current).
The maximum current that can be commutated by an Output is 40 mA.
Remarks
• The + 24 V internal voltage (pins 1 and 14) is not protected from short-circuits.
• The current delivered by the + 24 V voltage (pins 1 and 14) should not exceed 300 mA.
The Outputs are not protected against polarity inversion and over current. When
connecting inductive charges use an anti-parasite protection and a free-wheel diode
to avoid damaging the Outputs.
Negative reference
(common)
I 4- I 5- I 6- I 7 (19)
Negative reference
(common)
I 0- I 1- I 2- I 3 (6)
Internal connections
+ 24 V DC power supply
+ 24 V DC power supply
