Technify Motors Cessna 172 - Page 48

Supplement Airplane Maintenance Manual
Cessna 172 with TAE 125-02-99 / -114
AMM-20-02
Chapter:
Issue:
Issue Date:
Page:
Content:
20-AMM-21-02
3
06.11.2013
2
6
Rev. No:
Rev. Date:
1
25.08.2014

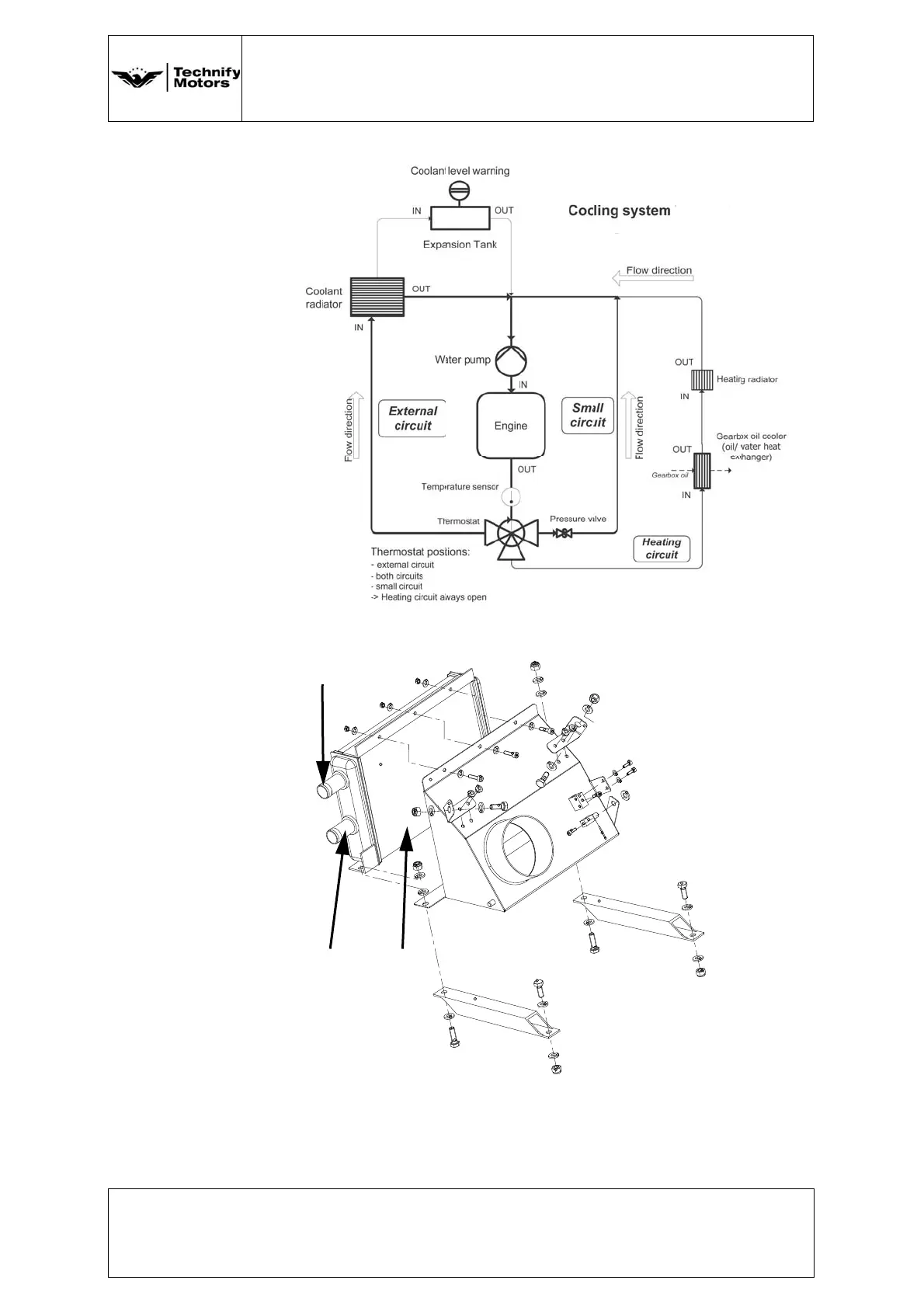

Figure 2 Coolant System (TAE 125-02-114)
Figure 3 Heat Exchanger (TAE 125-02-99 / -114)
1 Heat Exchanger
2 Coolant OUT
3 Coolant IN
1
2
3
