Technify Motors Cessna 172 - Page 49

Supplement Airplane Maintenance Manual
Cessna 172 with TAE 125-02-99 / -114
AMM-20-02
Rev. No:
Rev. Date:
Chapter:
Issue:
Issue Date:
Page:
Content:
20-AMM-21-02
3
06.11.2013
3
6
1
25.08.2014

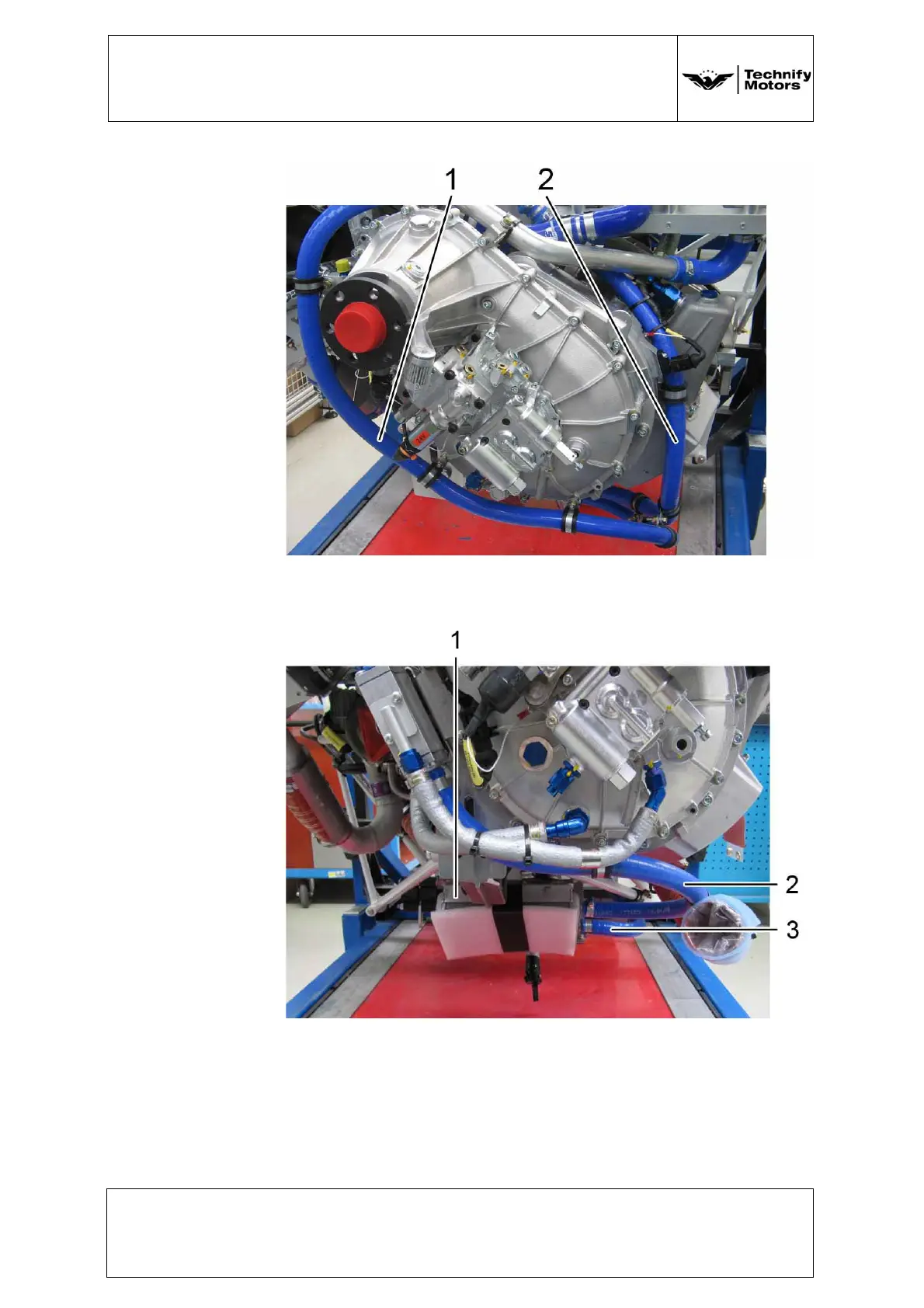

Figure 4 Coolant Hose System (TAE 125-02-99)
1 Coolant Hose, Heat Exchanger IN
2 Coolant Hose, Heat Exchanger OUT
Figure 5 Coolant Hose System (TAE 125-02-114)
1 Heat Exchanger
2 Coolant Hose, Heat Exchanger OUT
3 Coolant Hose, Heat Exchanger IN
1
2
1
2
