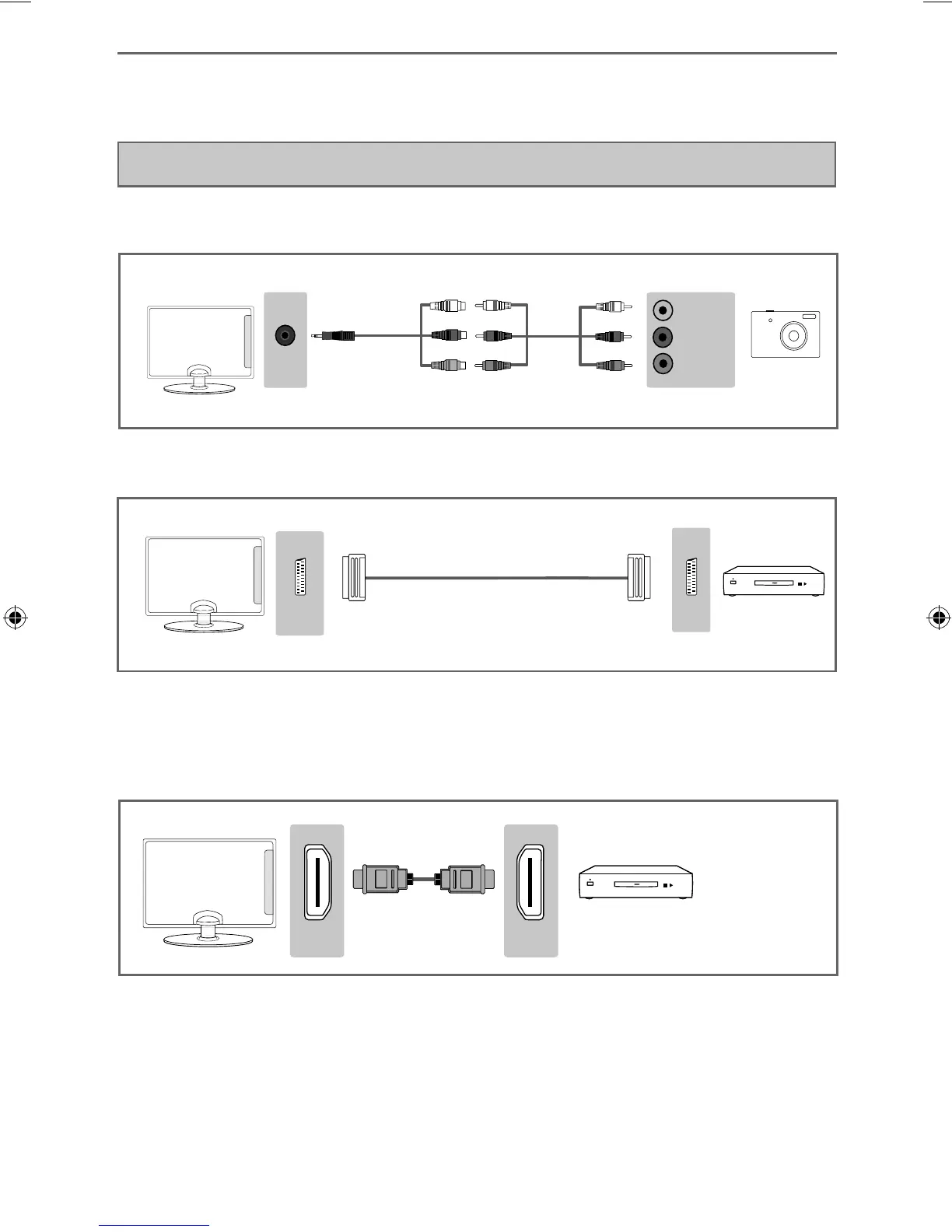

Connecting to a device with Composite AV/Video output
TV Source should be set to Composite/AV
L (white)
R (red)
Video
(yellow)
AV in
Connections
Connecting to a device with HDMI output
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)
HDMI HDMI
CONNECTIONS
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
Connecting to a device with SCART output
TV Source should be set to SCART
User Guide -Technika - 22-24 inch models TEC-MAN-0100.indd Sec1:14User Guide -Technika - 22-24 inch models TEC-MAN-0100.indd Sec1:14 09/12/2016 10:54:5009/12/2016 10:54:50
