15
Connections

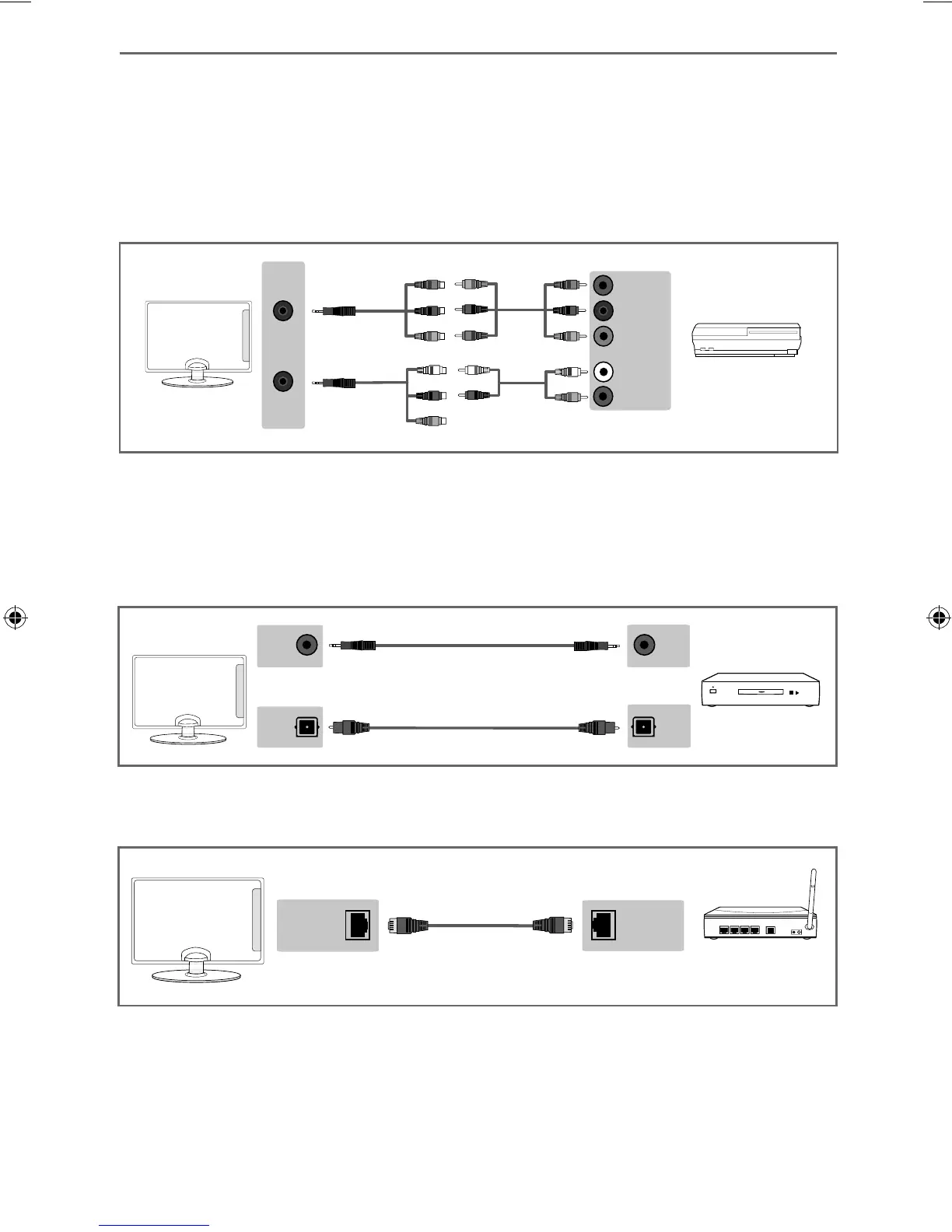

CONNECTIONS
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component/YPbPr
AV in
YPbPr
Y (green)
PB (blue)
PR (red)
Video (yellow)
is not connected
R (red)
L (white)
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options when connecting a device via the 3.5mm Earphone Output and the
Digital Optical Audio Output
3.5mm
earphone
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for Digital Optical Audio Output
Digital
audio
out
(optical)
3.5mm
audio
in
Digital
audio
in
(optical)
Connecting an Ethernet/Network cable
The Ethernet port is used only for Freeview HD services only.
Ethernet
port
Ethernet
port
User Guide -Technika - 22-24 inch models TEC-MAN-0100.indd Sec1:15User Guide -Technika - 22-24 inch models TEC-MAN-0100.indd Sec1:15 09/12/2016 10:54:5109/12/2016 10:54:51
