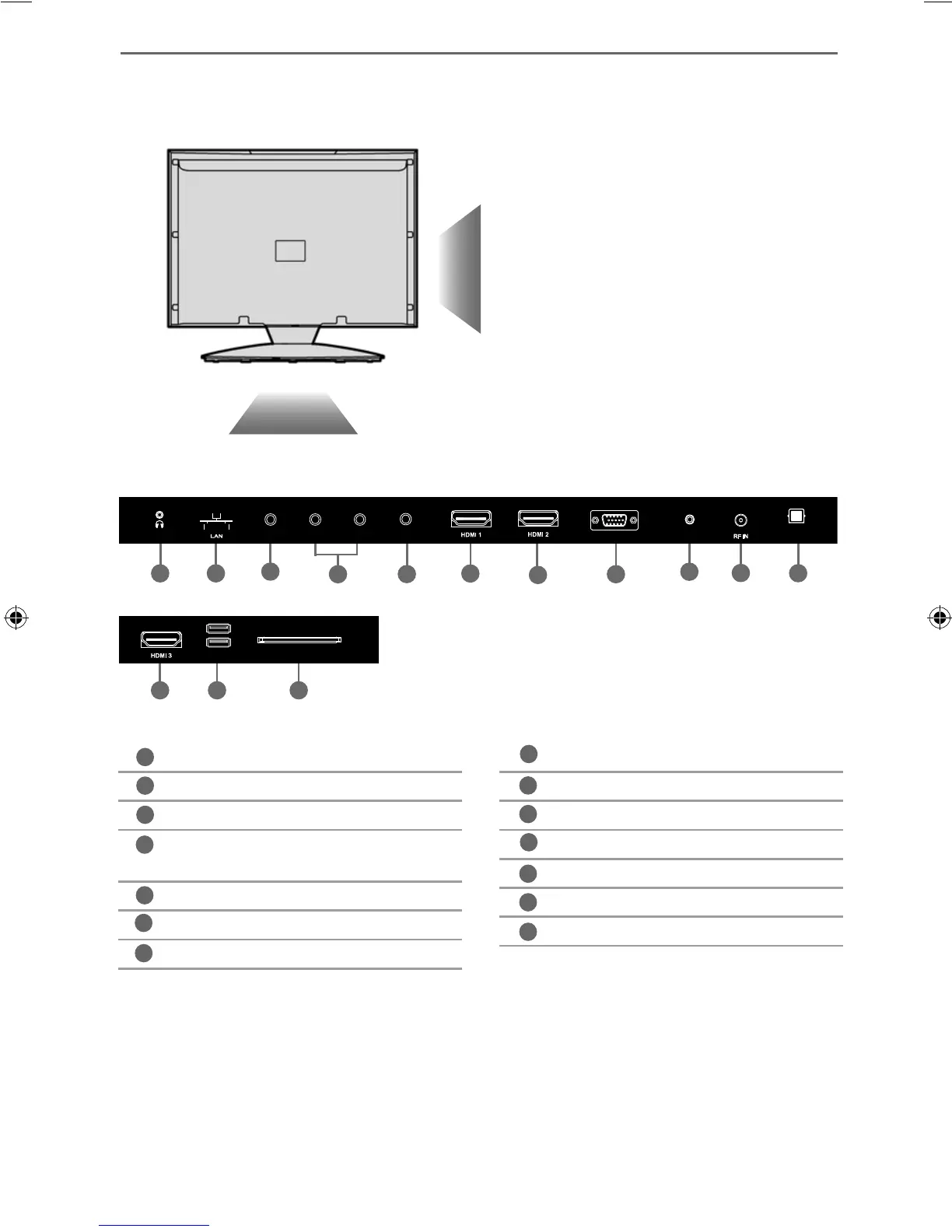

Connections
CONNECTIONS
A
C
D
E
F
G
H
I
J
K
LM N
B
Earphones Earphone Input
LAN* Network Connection
Video Video Input
YPbPr HD input (Ypbpr)
HDMI 1 HDMI input
HDMI 2 HDMI input
VGA PC VGA-PC input
VGA PC Audio In 3.5mm PC audio input
RF IN RF / TV Aerial Input
Digital Audio Digital Optical Audio output
HDMI 3 HDMI input
2 x USB USB port
CI CARD IN Common Interface module
A
I
L
B
J
M
N
C
D
E
F
G
H
K
EARPHONE
Y Pb Pr
VGA/PC(Audio in)
VGA/PC IN
VIDEO
R
L
Digital Audio
Output
USB
CI CARD IN
*The LAN/Ethernet port is used only for Pay TV services and Freeview HD (Freeview services are only
available in the UK). It is not intended to be used for internet/network use.
L/R Audio shared for
Video/Composite and
component/ YPbPr
L/R
