LCD TV Receiver LCD32-407B
10
CONNECTING THE TV
WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED
FROM THE MAINS BEFORE MAKING ANY CONNECTIONS!

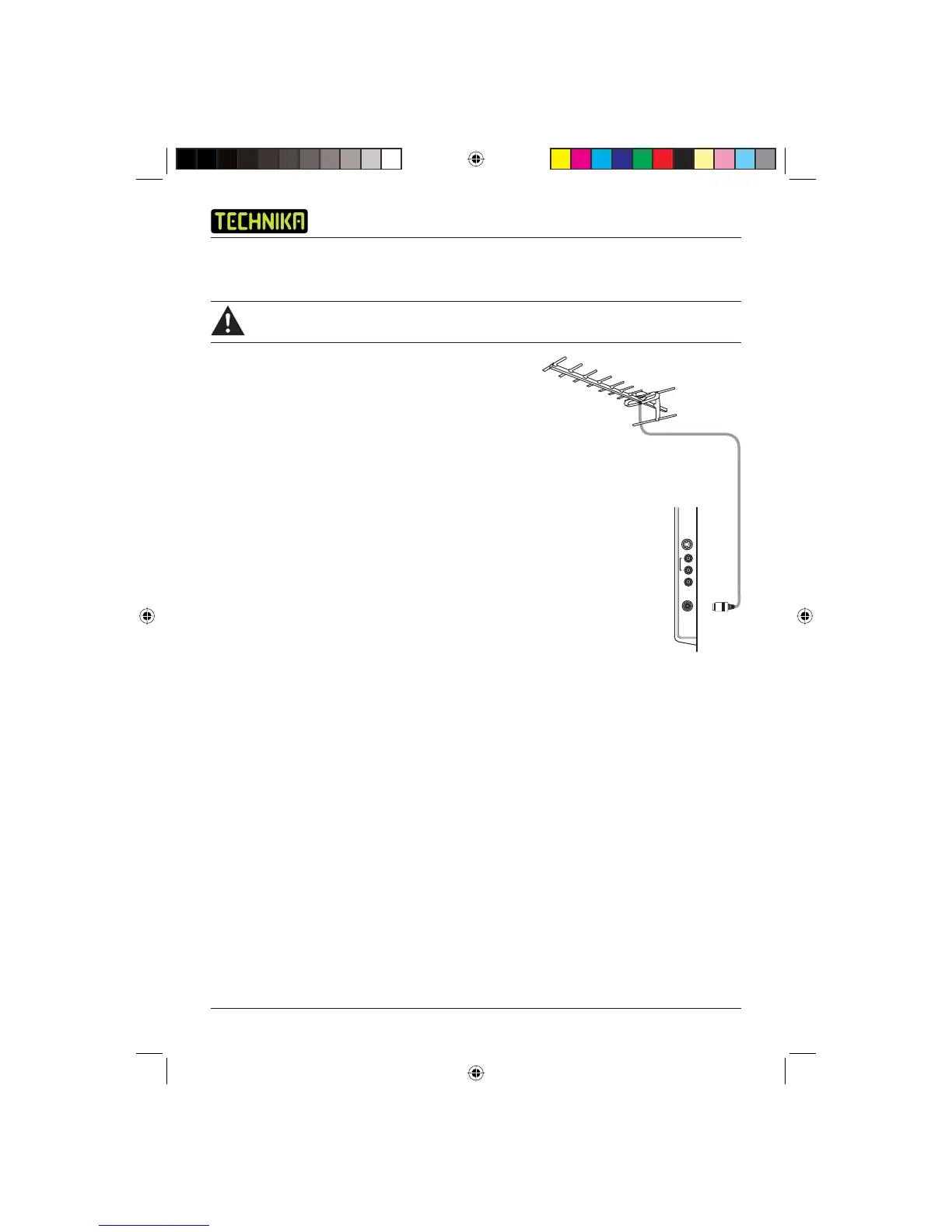

Connecting the TV antenna
Connect the TV antenna to the aerial socket with a
75 ohm co-axial plug. For best results use a high gain TV
aerial, preferably roof or loft mounted.
Connecting external devices
The Quick Start Guide shows the simplest and most effective
way of connecting your TV to ancillary equipment. Alternate
methods are listed below.
Note: The TV will connect through the HDMI cable by
default. Only use the HDMI cable and one other
option. Connecting more than one option may
cause interference.
HDMI lead
You can connect this TV to a compatible device using a
HDMI lead. This method will give the best picture.
SCART lead
You can connect this TV to a compatible device using a SCART lead. The connection uses
component video signals, i.e. the red, green and blue (RGB) content of the video are sent on
separate signals.
VGA cable
You can use your TV as a monitor for your personal computer by using a VGA cable. Sound from
your personal computer may also be played through the TV. This requires the audio output of the
personal computer to be connected to the AUDIO IN connection of the TV.
S-VIDEO lead
You can connect this TV to a compatible device using an S-VIDEO lead.
Component Input (YPbPr cables)
You can connect this TV to a compatible device using YPbPr cables. Connect the red, green and
blue outputs to the matching coloured inputs on the compatible device. An additional audio input
is required.
