PG 6

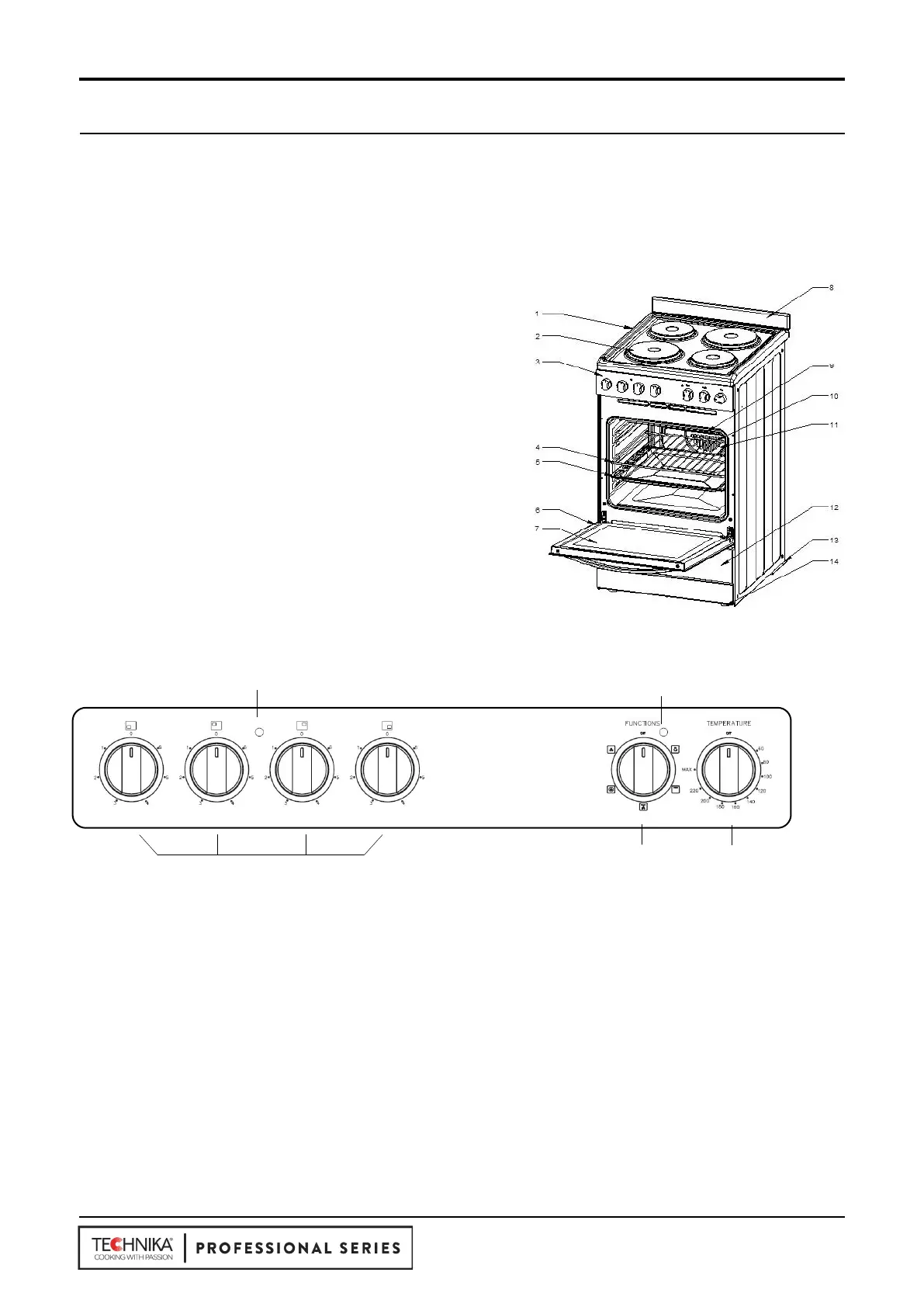

PRODUCT DESCRIPTIONS
1. Cooktop hob area
2. Hotplate Burner (4 of)
3. Control Panel
4. Chrome oven shelf (1 supplied)
5. Baking tray with grill insert (1 supplied)
6. Oven Door
7. Oven Inner Door Glass
8. Splashback (1 supplied)
9. Integrated Grill element
10. Fan forced oven element
11. Fan & element cover
12. Front panel
13. Anti-tilt bracket
14. Anti slip feet
1. Hotplate Indicator Light (where fitted)
• Comes on when a hotplate is turned on.
2. Oven Indicator Light
• Light is on when oven element is heating up oven or cycling on.
3. Oven Function Control Knob
• Sets oven function
4. Oven Temperature Control Knob
• Sets temperature for baking.
5. Hotplate Control Knob
• Adjusts temperature of hotplate.
Description of Electric Cooker
Controls
Front Control Panels
1
5
43
2
