Installation
Preparation of the work surface

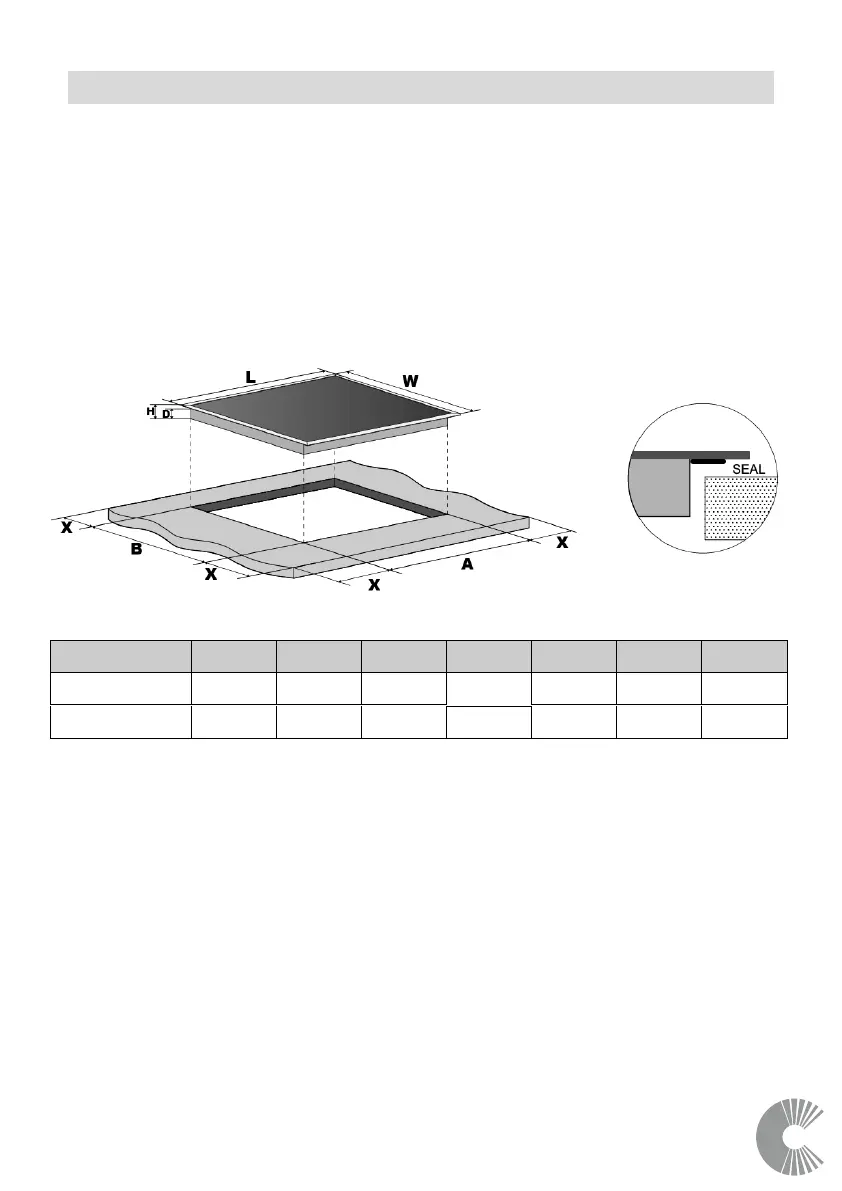

• Cut out the work surface according to the sizes shown in the drawing.
• For the purpose of installation and use, a minimum
of 50mm space shall be
preserved around the hole.
• Be sure the thickness of the work surface is at least 30mm. and suitable for
the application.
Ensure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the
hob is in good working order.
Install Rangehoods and Exhaust Fans in accordance to the manufacturer’s instructions.
No closer than 600mm above the hob for Rangehoods and 750mm for Exhaust Fans.
L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)
TGGCM64-5 590 520 50 46 565 495 50 min
TGGCM74 700 520 50 46 565 495 50 min
