CONNECTING AN AUDIO SOURCE
The LINE IN and AUX IN analogue inputs are for stereo
analogue sources only.
The LINE IN input has phono socket connection so is
suitable for the sound output from a TV, DVD player,
satellite receiver etc.
The AUX IN input has a 3.5mm jack connector so is
suitable for connection to the line or headphone
outputs of a computer or personal stereo player.
The input jacks are located on the terminal panels of
the Soundbar and are marked LINE IN and AUX IN.
To connect a TV etc to the LINE IN input:
Connect the red and white plugs of a stereo phono •
cable of sucient length (not supplied) to the ‘L’
jack (white plug) and ‘R’ jack (red plug) of the LINE
IN input.
Connect the other end of the cable to the output •
jacks of your source. The white plug connects to
the left channel, the red plug connects to the right
channel.
From the analogue
audio outputs of the TV etc

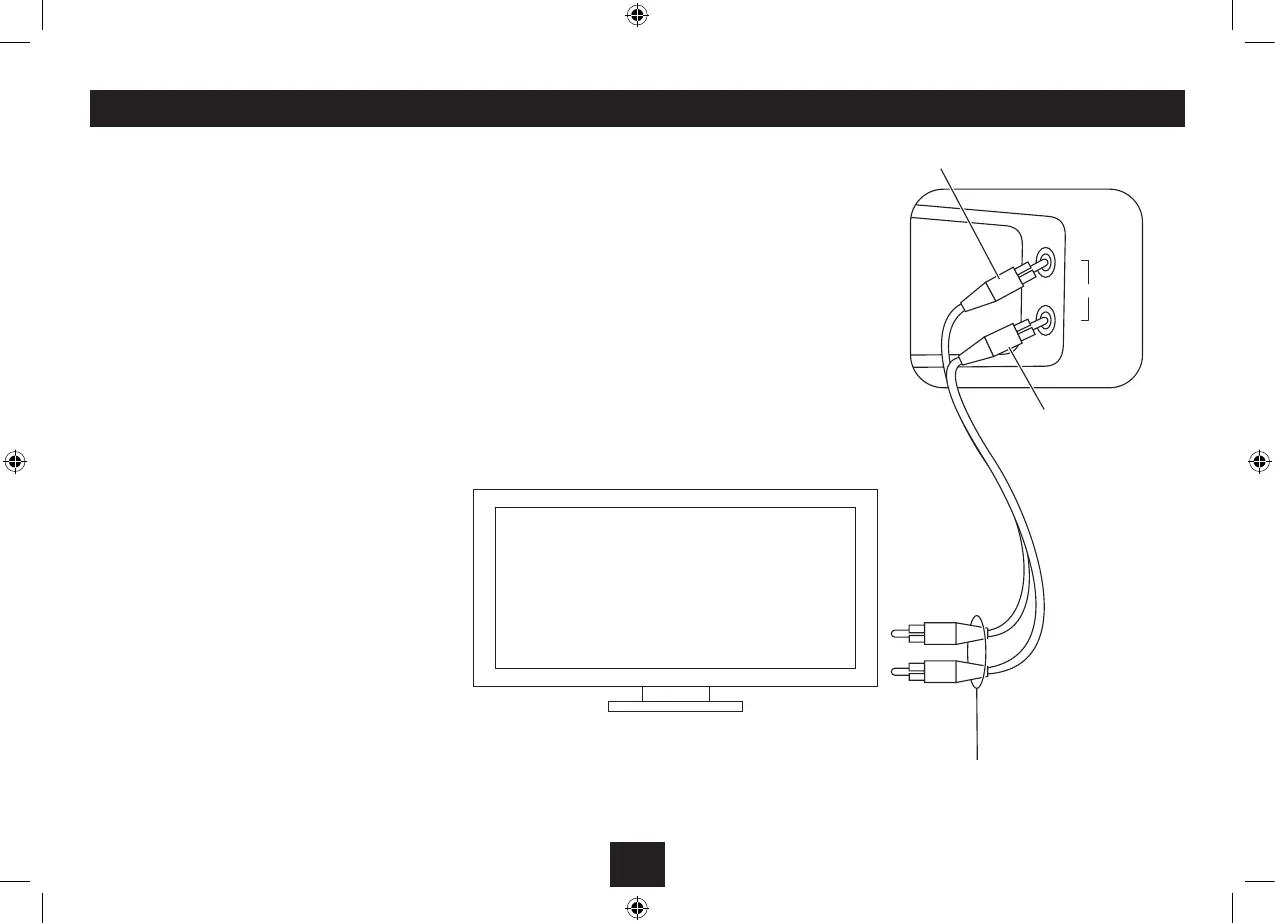

CONNECTING TO A STEREO LINE OUTPUT
White plug
Red plug
