Connecting
4.1 Connection example

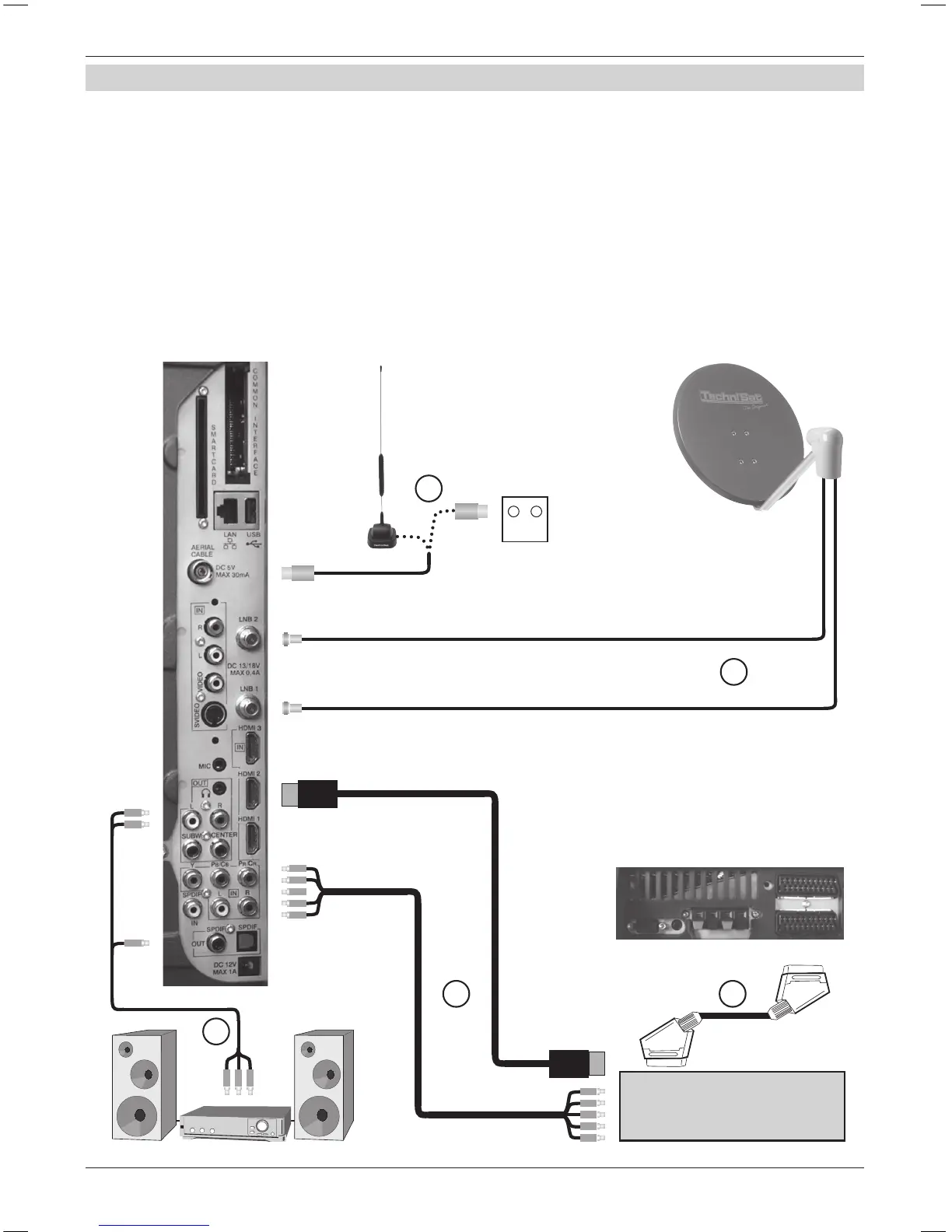

a Connection of the cable connection (digital and/or analogue)
or DVB-T antenna to the antenna input of the television.
b Connection/s of the satellite antenna to the LNB input 1/LNB input 2.
(Please note: LNB must be connected to LNB input 1 when working with an antenna signal)
c Connection of the television to a DVD player by an HDMI cable,
a Cinch component cable or a SCART cable.
d Connection of the analogue or digital audio output to a Hi stereo or surround equipment.
DVD
TV Radio
cc
b
a
d
