Technitrend TN-12E - Installation; Mounting the exhaust pipe; Installation of the Carbon Filter; Mounting the unit

6
5

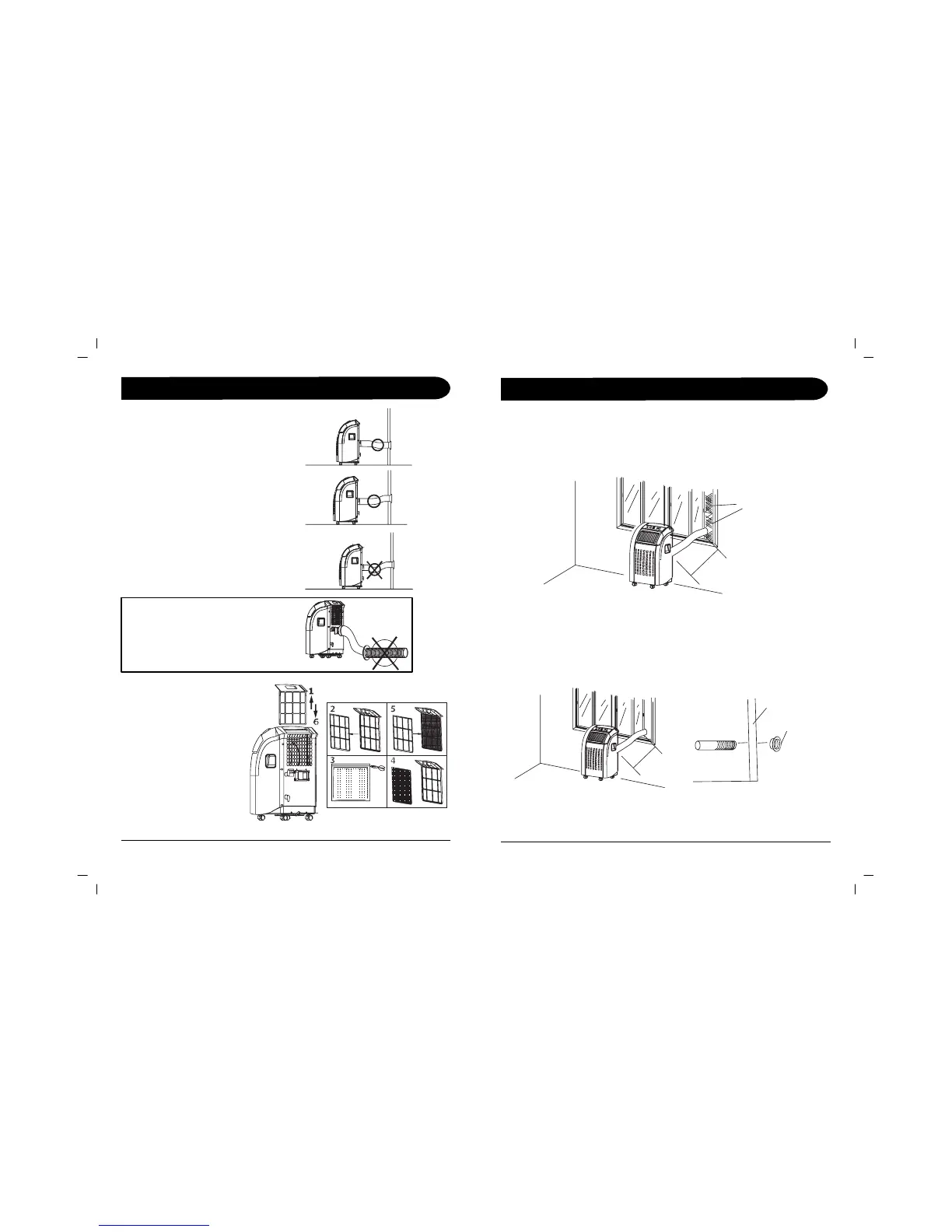

Mounting the unit
This unit is a portable air conditioner. It can be moved from room to room so that the cooling
can follow you anywhere. Fitting the exhaust hose is easy, through a window or wall.
Please refer to either of the following ways:
1. Using the foam strips
Installation
• Connect the supplied foam strips with the exhaust
pipe, let the hot air flow to the outside.
• Should the foam strip(s) be too large, cut off the extra part to fit the window.
2. Using the Through the Wall
• Make a hole (5" in diameter) in the wall to fit the supplied round connector.
• Fit the hose directly to the round connector.
• When the hole is not in use, use the cap for the round connector to cover the hole.
FIG.5
Foam strips
FIG.6
FIG.7
Wall or Window
Outward adaptor
20"
20"
Installation
WARNING!
The length of the exhaust pipe is specially
designed according to the specification of this
product.
Do not replace or extend it with your own hose
as this could cause the unit to malfunction.
Mounting the exhaust pipe
• The supplied exhaust hose can be
extended from 1 foot to 5 feet for
mounting. It is recommended that
you use the shortest possible length
of hose.
• Take care to prevent any kink or
b
end in the middle of the exhaust
hose, as this will trap hot exhaust
air, which will radiate back into the
room.
Installation of the Carbon Filter
1. Remove the filter frame from the unit.
2. Separate the filter from the filter frame.
3. Remove the active carbon filter from its
plastic bag.
4. Insert the active carbon filter into
the filter frame.
5. Fix the filter by reassembling
the fixer onto the filter frame.
6. Re-fit the filter frame inside
the unit.
7. It is recommended to replace
the carbon filter every 3 to 6
months..
FIG.8
FIG.9
FIG.10
FIG.11
