Techno HDS Series - Machine Interface and Controls; Screen Layout and Elements Overview

For Support Visit· support.technocnc.com or Call: (631) 648-7481
13
HDS User Manual
(HTT06291133)
2.2 Screen Callouts

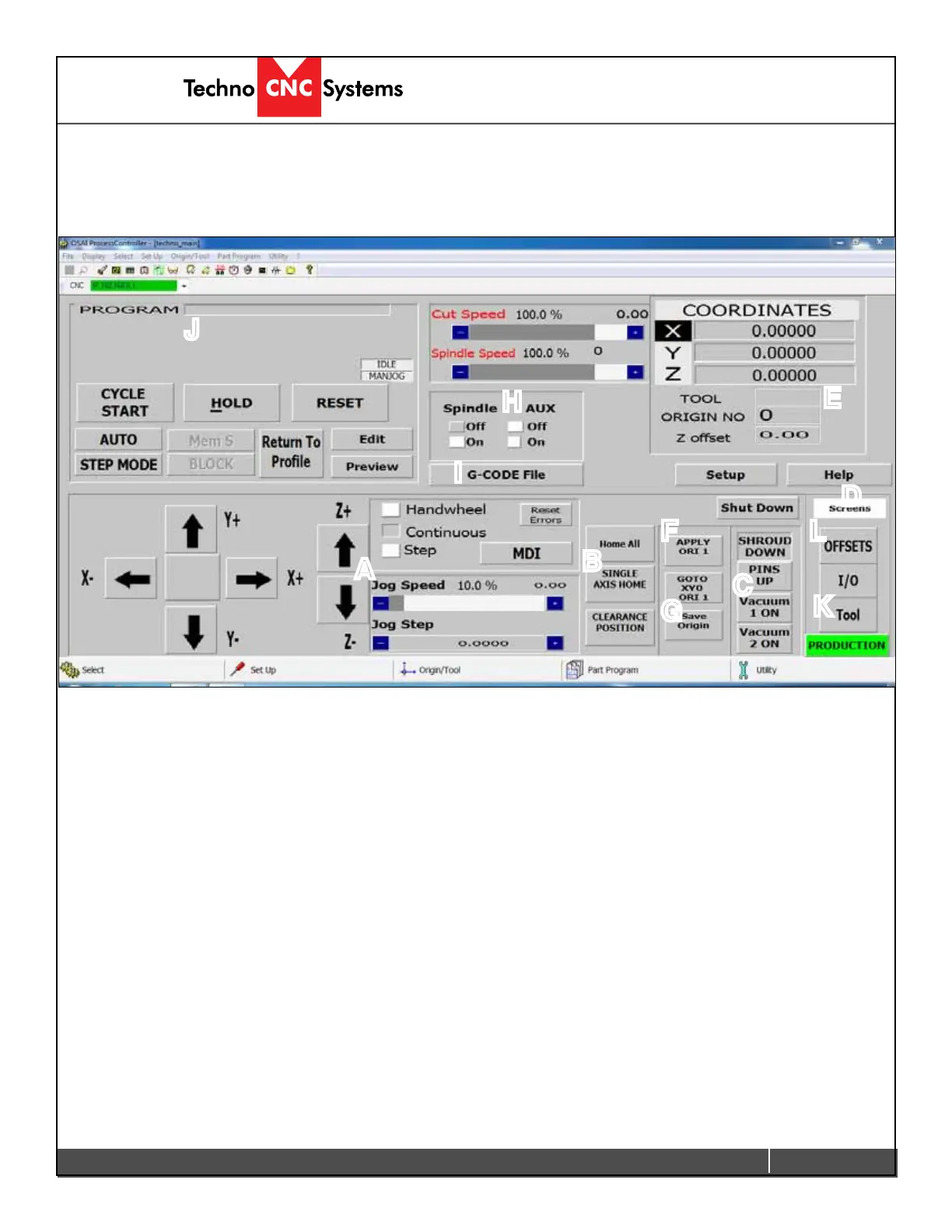

Above is the main screen of the Techno HDS interface.
To help understand the functions of the buttons they will be broken down into the following categories.
A- Jogging functions.
B-Homing Functions.
C-Pneumatic and Electrical Controls.
D-Menu Systems.
E-Coordinate Systems.
F-Origin Functions.
G-Save Origin Menu
H-Spindle and Coolant control.
I-Load G-code File.
J-Program Functions.
K-Tool Menu
L-Offset Menu.
